- 43 -
Item Part No. Description Qty.
Item Part No. Description Qty. FT.LBS. (Nm)
REMARK:
Torque

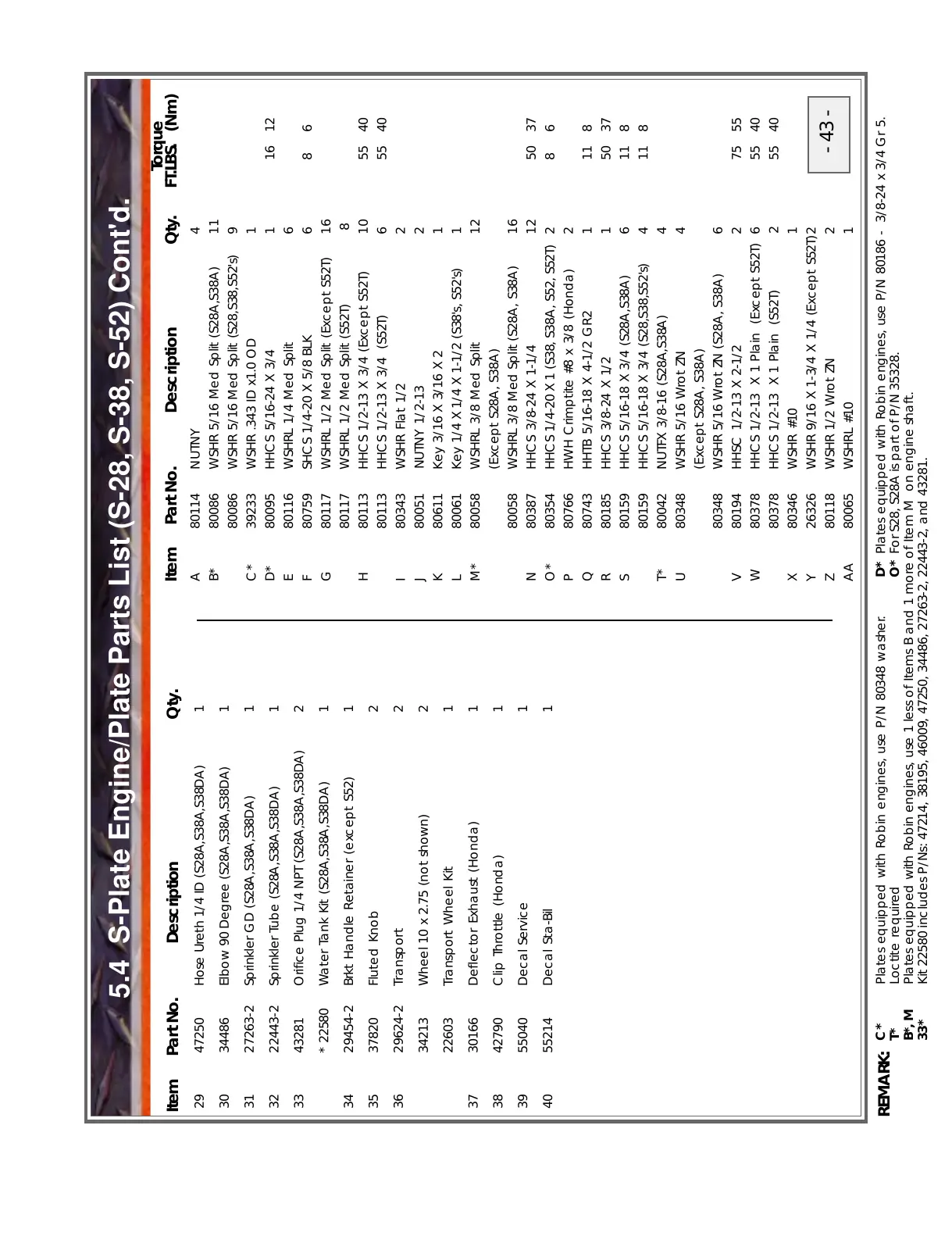

5.4 S-Plate Engine/Plate Parts List (S-28, S-38, S-52) Cont'd.
29 47250 Hose Ureth 1/4 ID (S28A,S38A,S38DA) 1
30 34486 Elbow 90 Degree (S28A,S38A,S38DA) 1
31 27263-2 Sprinkler GD (S28A,S38A,S38DA) 1
32 22443-2 Sprinkler Tube (S28A,S38A,S38DA) 1
33 43281 Orifice Plug 1/4 NPT (S28A,S38A,S38DA) 2
* 22580 Water Tank Kit (S28A,S38A,S38DA) 1
34 29454-2 Brkt Handle Retainer (except S52) 1
35 37820 Fluted Knob 2
36 29624-2 Transport 2
34213 Wheel 10 x 2.75 (not shown) 2
22603 Transport Wheel Kit 1
37 30166 Deflector Exhaust (Honda) 1
38 42790 Clip Throttle (Honda) 1
39 55040 Decal Service 1
40 55214 Decal Sta-Bil 1
A 80114 NUTNY 4
B* 80086 WSHR 5/16 Med Split (S28A,S38A) 11
80086 WSHR 5/16 Med Split (S28,S38,S52's) 9
C* 39233 WSHR .343 ID x1.0 OD 1
D* 80095 HHCS 5/16-24 X 3/4 1 16 12
E 80116 WSHRL 1/4 Med Split 6
F 80759 SHCS 1/4-20 X 5/8 BLK 6 8 6
G 80117 WSHRL 1/2 Med Split (Except S52T) 16
80117 WSHRL 1/2 Med Split (S52T) 8
H 80113 HHCS 1/2-13 X 3/4 (Except S52T) 10 55 40
80113 HHCS 1/2-13 X 3/4 (S52T) 6 55 40
I 80343 WSHR Flat 1/2 2
J 80051 NUTNY 1/2-13 2
K 80611 Key 3/16 X 3/16 X 2 1
L 80061 Key 1/4 X 1/4 X 1-1/2 (S38's, S52's) 1
M* 80058 WSHRL 3/8 Med Split 12
(Except S28A, S38A)
80058 WSHRL 3/8 Med Split (S28A, S38A) 16
N 80387 HHCS 3/8-24 X 1-1/4 12 50 37
O* 80354 HHCS 1/4-20 X 1 (S38, S38A, S52, S52T) 2 8 6
P 80766 HWH Crimptite #8 x 3/8 (Honda) 2
Q 80743 HHTB 5/16-18 X 4-1/2 GR2 1 11 8
R 80185 HHCS 3/8-24 X 1/2 1 50 37
S 80159 HHCS 5/16-18 X 3/4 (S28A,S38A) 6 11 8
80159 HHCS 5/16-18 X 3/4 (S28,S38,S52's) 4 11 8
T* 80042 NUTFX 3/8-16 (S28A,S38A) 4
U 80348 WSHR 5/16 Wrot ZN 4
(Except S28A, S38A)
80348 WSHR 5/16 Wrot ZN (S28A, S38A) 6
V 80194 HHSC 1/2-13 X 2-1/2 2 75 55
W 80378 HHCS 1/2-13 X 1 Plain (Except S52T) 6 55 40
80378 HHCS 1/2-13 X 1 Plain (S52T) 2 55 40
X 80346 WSHR #10 1
Y 26326 WSHR 9/16 X 1-3/4 X 1/4 (Except S52T)2
Z 80118 WSHR 1/2 Wrot ZN 2
AA 80065 WSHRL #10 1
C* Plates equipped with Robin engines, use P/N 80348 washer. D* Plates equipped with Robin engines, use P/N 80186 - 3/8-24 x 3/4 Gr 5.
T* Loctite required O* For S28, S28A is part of P/N 35328.
B*, M Plates equipped with Robin engines, use 1 less of Items B and 1 more of Item M on engine shaft.
33* Kit 22580 includes P/Ns: 47214, 38195, 46009, 47250, 34486, 27263-2, 22443-2, and 43281.
