- 45 -
Item Part No. Description Qty.
Item Part No. Description Qty. FT.LBS. (Nm)
REMARK:
Torque
1 30161 Engine 11 HP Honda 1
2 30131 Clutch Centrifugal 1
3 34838 V-Belt A-41 2
4 27503-2 Guard Belt 1
5 22247-2 Plate Reinforcement 1
6 21728-2 Motor Base 1
7 36418-2 Plate Motor Mount 1
8 21710-2 Handle 1
9 32040 Urethane Bushing 2
10 27189-2 Handle Bracket 2
11 47014 Shock Mount 18
12 27469 Cap & Bearing Blind End 1
13 32046 O-Ring 01-275 2
14 21735 Eccentric Shaft 1
15 27468 Cap & Bearing Sheave End 1
16 32047 Oil Seal National 2
17 34815 Sheave Offset Gas 1
35328 Bushing Taperlock 1
18 21711-2 Base Plate Mach 1
19 55151 Decal S66 Stone 1
20 55157 Decal S66 Stripe 1
* 28683-2 Lift Eye 1
* Not Shown

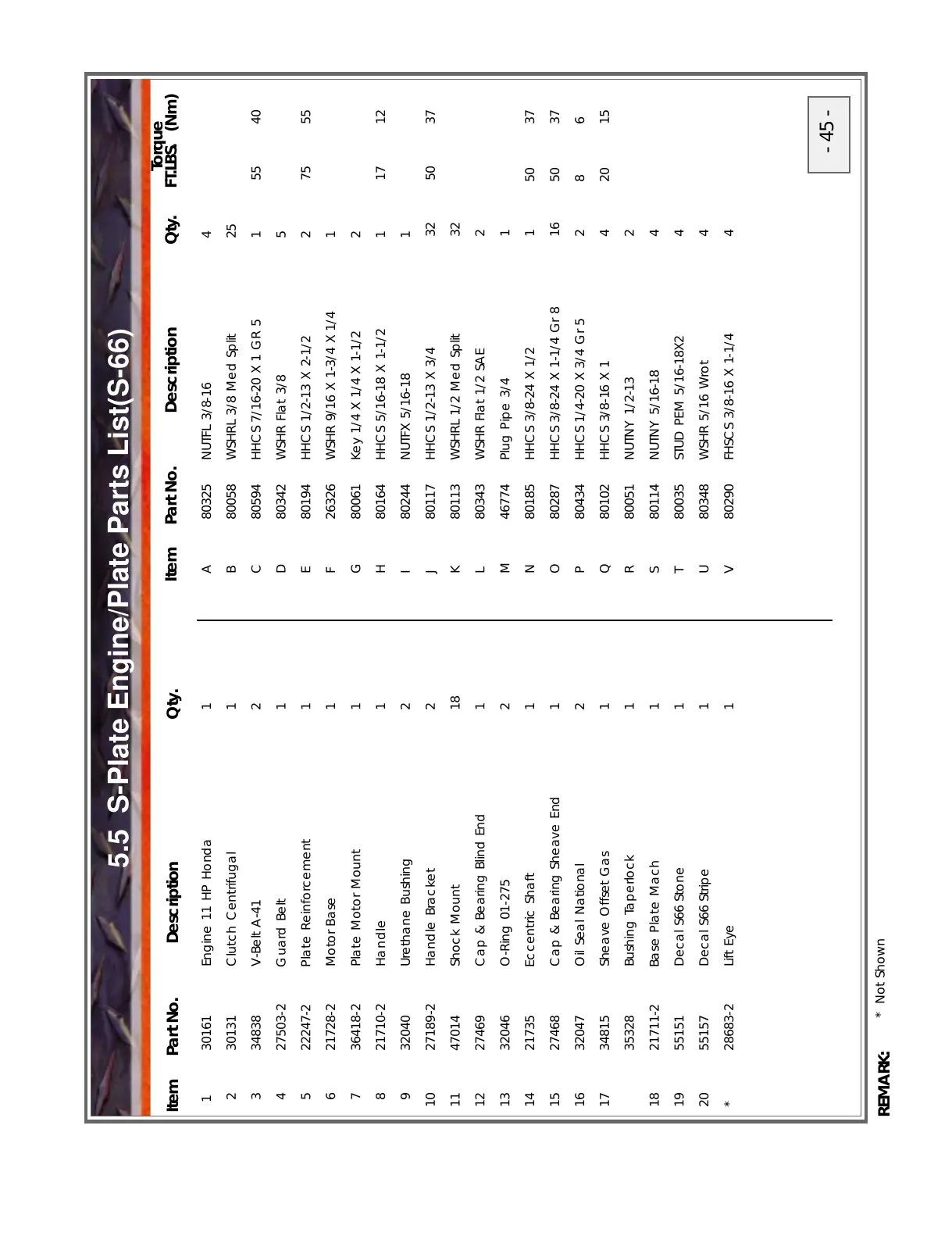

5.5 S-Plate Engine/Plate Parts List(S-66)
A 80325 NUTFL 3/8-16 4
B 80058 WSHRL 3/8 Med Split 25
C 80594 HHCS 7/16-20 X 1 GR 5 1 55 40
D 80342 WSHR Flat 3/8 5
E 80194 HHCS 1/2-13 X 2-1/2 2 75 55
F 26326 WSHR 9/16 X 1-3/4 X 1/4 1
G 80061 Key 1/4 X 1/4 X 1-1/2 2
H 80164 HHCS 5/16-18 X 1-1/2 1 17 12
I 80244 NUTFX 5/16-18 1
J 80117 HHCS 1/2-13 X 3/4 32 50 37
K 80113 WSHRL 1/2 Med Split 32
L 80343 WSHR Flat 1/2 SAE 2
M 46774 Plug Pipe 3/4 1
N 80185 HHCS 3/8-24 X 1/2 1 50 37
O 80287 HHCS 3/8-24 X 1-1/4 Gr 8 16 50 37
P 80434 HHCS 1/4-20 X 3/4 Gr 5 2 8 6
Q 80102 HHCS 3/8-16 X 1 4 20 15
R 80051 NUTNY 1/2-13 2
S 80114 NUTNY 5/16-18 4
T 80035 STUD PEM 5/16-18X2 4
U 80348 WSHR 5/16 Wrot 4
V 80290 FHSCS 3/8-16 X 1-1/4 4
To Next Page
