StopTech ST-40 Caliper - Page 20

After securing the brake line, turn the wheels lock-
to-lock to ensure that the line is not binding or
touching any moving part of the suspension.
Adjust the line, if necessary, by re-clocking the
banjo bolt on the caliper, or by reorienting the
inboard line fitting.
3541 Unit A, Lomita Boulevard, Torrance, CA 90505 (310) 325-4799
www.stoptech.com 20
SS
SS
S
tep 7tep 7
tep 7tep 7
tep 7
(Cont (Cont
(Cont (Cont
(Cont
’’
’’
’
d.)d.)
d.)d.)
d.)
AA
AA
A
ttach Sttach S
ttach Sttach S
ttach S
tainless Stainless S
tainless Stainless S
tainless S
teel Bteel B
teel Bteel B
teel B
rake Linerake Line
rake Linerake Line
rake Line

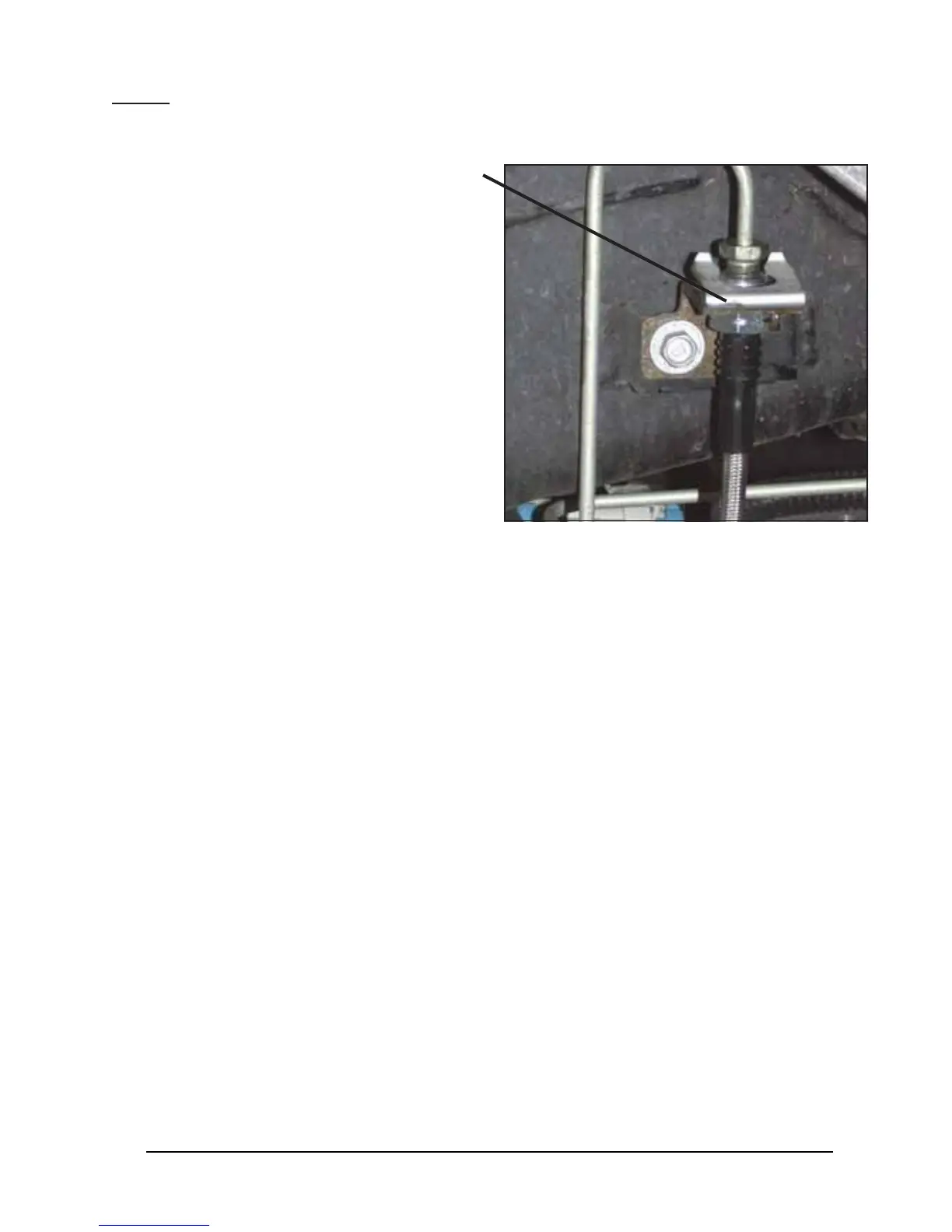

Reinstall the line-retaining spring clip, to secure
the stainless brake line in place.
Take care to ensure that the prongs on the spring
clip are seated within the recesses on the brake
line fitting, then use a mallet to gently tap the
spring clip into place.
