Storage Canopy C4040S - Frame Installation

5
B—FRAME INSTALLATION
Figure 3

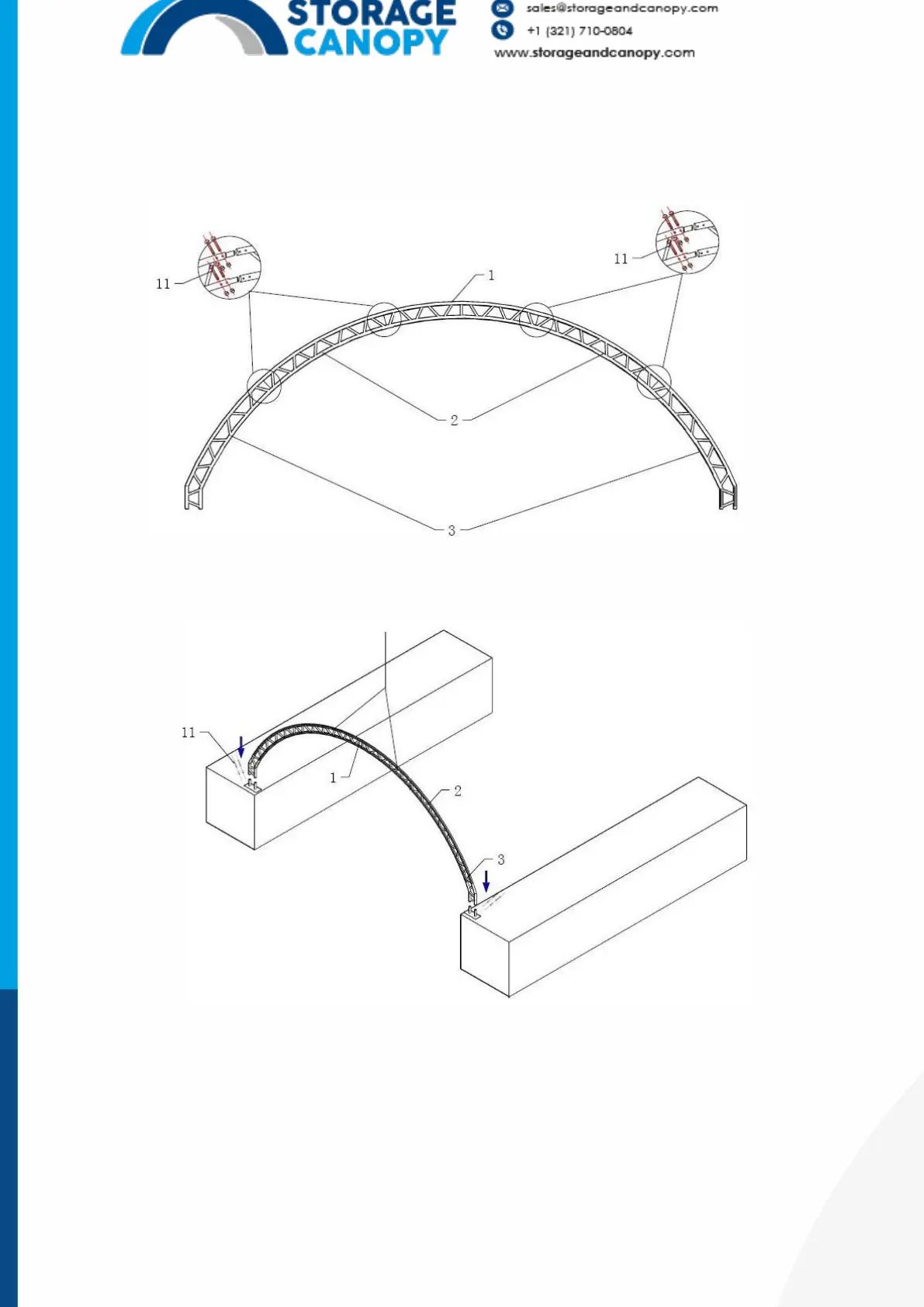

1. As Figure 3 shown find Roof Bent Tube (No. 1), Side Bent Tube (No.2), Lower Bent
Tube(No.3). To connect them by Bolts M8x80 （ No.11）.Which makes one group of arch.
Please NOTE the direction of the bolt. DO NOT install the bolts on the top of the truss where
the fabric will rest.
2. Insert one end of the assembled arch into one base plate and force the other end of the arch into
the opposite base plate.
