Storage Canopy EWC4040R - Page 12

12
3. Take out the door curtain cloth and lay it on the ground. Pay attention to the direction. The side with
pipe pockets faces inward.

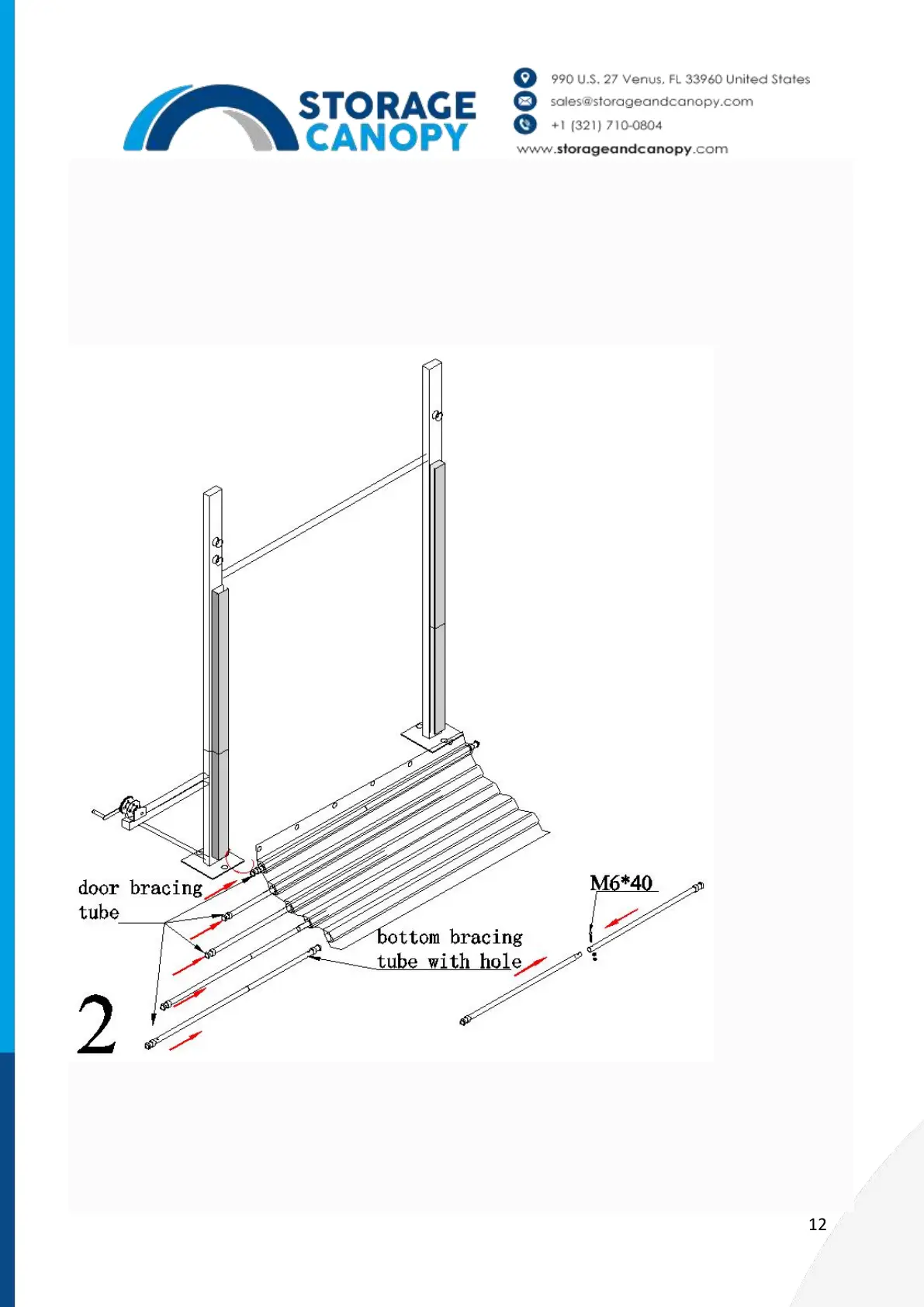

4. Connect the door bracing tube (2pcs/set) with M6x40 bolt.
5. Thread the door bracing tube into the pocket from top to bottom. Pay attention to the bottom
bracing tube. There are holes on both sides for fixing steel wire rope. Refer to Figure 2.
