Storch WAMAB - Dimensions and Installation Diagram

47
Working with the large wash area (pasting machine
wash area)
When washing and cleaning plaster machines or other
tools that past has to be removed from, the drain at the
edge of the wash area with the lettering "Paint" must be
closed.
The washing water with past will then not be guided into
the WAMAB, it flows direct into the sewage channel.
Thanks to this correct separation of paste and paint, an
optimum treatment of the paint water is ensured.
When washing paint tools, the drain that is on the edge
of the wash basin marked with the lettering "Paste" must
be closed otherwise washed paint water would enter the
sewage channel without having been treated.

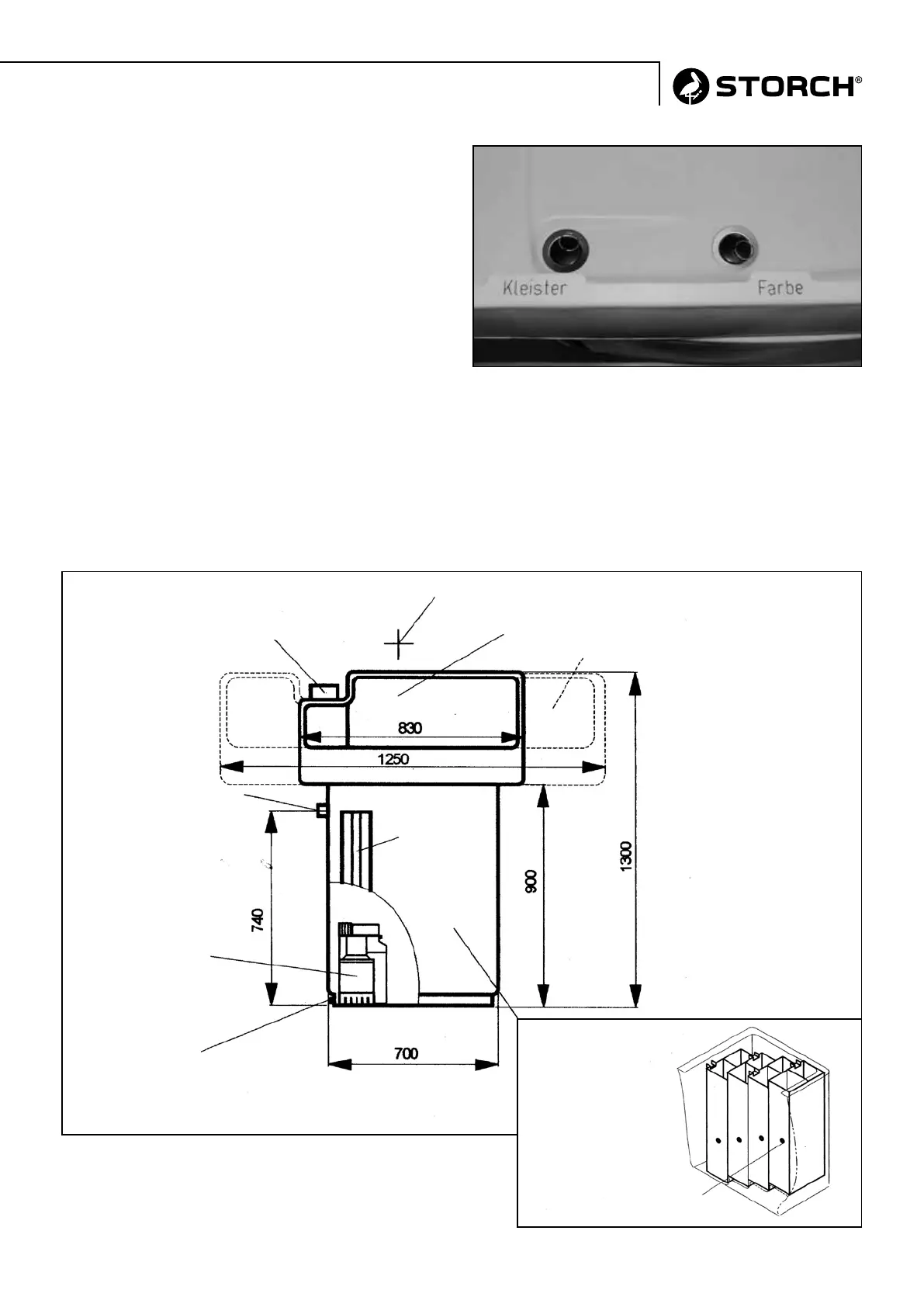

3. Dimensions and installation diagram
4-stage settling tank
Sealing plug
Large wash area
Wash area
Recommended position for the network water connection
Connection for the filling hose
Level
indicator
Connection for the
overll pipe
(DN 50 HT pipe)
Immersion pump
(Accessories, see 5.1)
Connection for the drain cock
Fig. 7
Drains and labelling
Translation of the original instruction
