Wall Rack
Qty: 1
Wall Screws
Qty:2
Machine Washers
Qty:2
Drill/Driver
Drill bits
Socket/Driver
Level
Tape measure
Pencil
Stud finder
50 lbs. max per unit
RECOMMENDED TOOLS: WEIGHT LIMITS:
INSTALLATION
NOTE: Tool Max Single must be mounted to a wall stud to achieve the advertised weight limit
Use a stud finder to find a wall stud where you want to mount the product and mark the
location with a pencil.
1
Hold the rack up to the wall where you want to mount it and align the mounting hole with
the stud location. Use a level to ensure the rack sits flat to the ground and mark the
mounting holes along the stud.
2
Use a 3/16 inch (4.7mm) drill bit to drill pilot holes into the stud where you marked them.

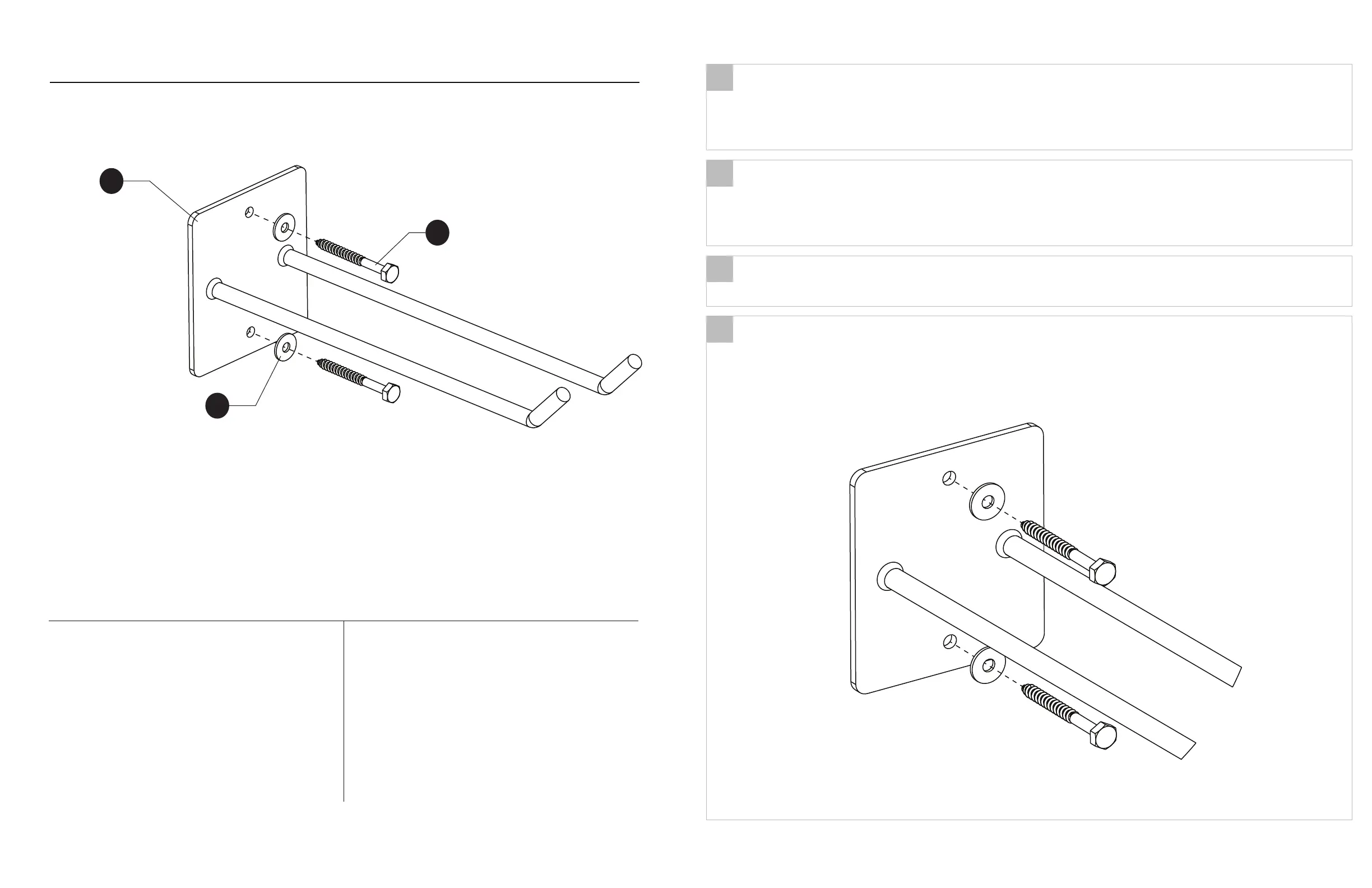

A Machine Washer (C) should be used between the Wall Rack (A) and the Wall Screw (B) as
shown in the figure below. Insert the Wall Screws (B) with Machine Washers (C) into the pilot
holes to mount the rack.
3
4
A
B
C
