Storkcraft Alpine 2 - Page 13

30
X8
57L
X2
- With 30 (X8),
screw 57L (X 2) into G
- Avec 30 (X8),
visser 57L (X 2) dans G
- Con 30 (X8),
atornillar 57L (X 2) en G
30
X8
57R
X2
- With 30 (X8),
screw 57R (X 2) into H
- Avec 30 (X8),
visser 57R (X 2) dans H
- Con 30 (X8),
atornillar 57R (X 2) en H
7
G
57L
30
UP
6

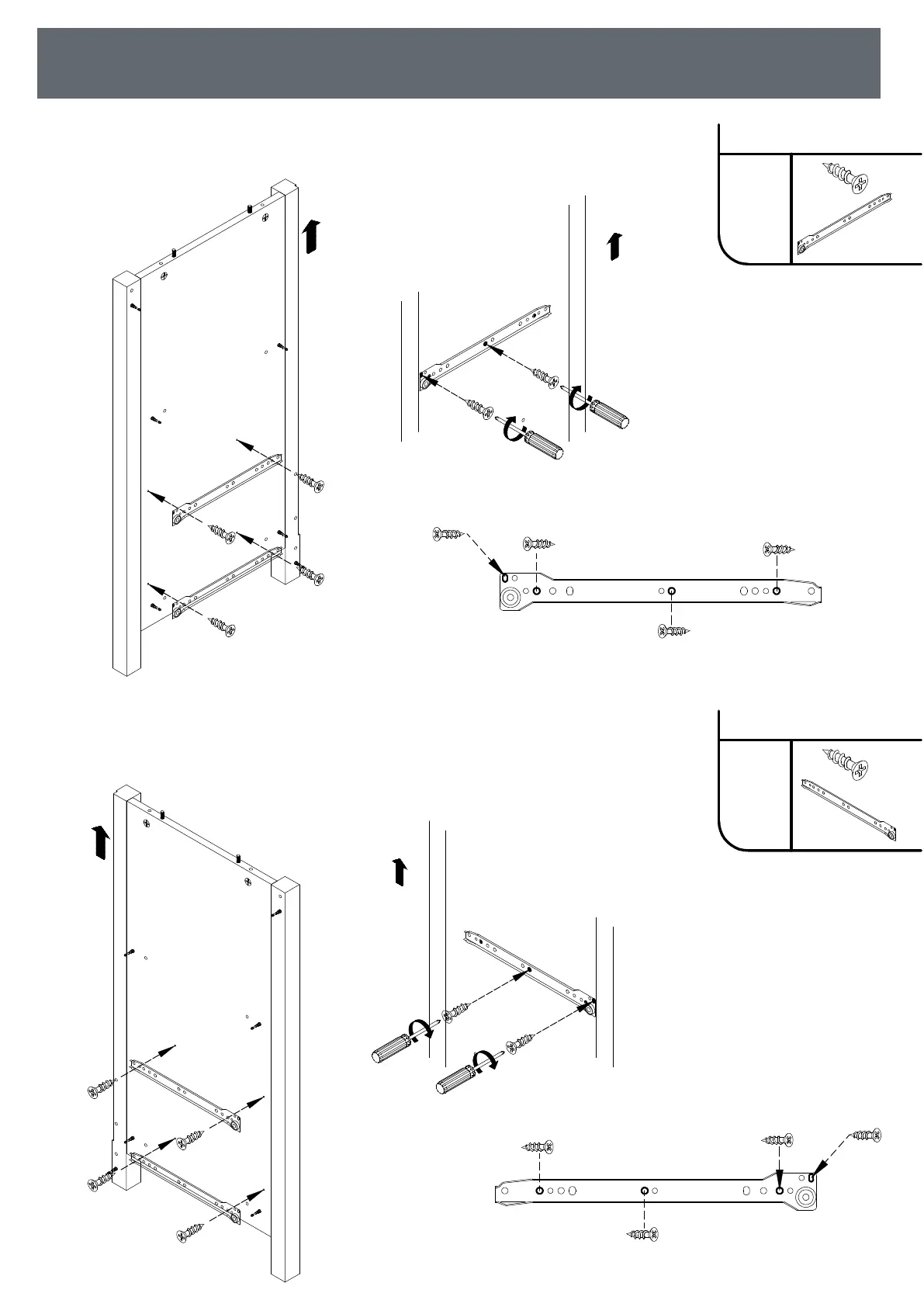

Step 1, install drawer
track using locator holes.
Step 2, install remaining
screws no pre drilled holes.
Step 1, install drawer
track using locator holes.
Step 2, install remaining
screws no pre drilled holes.
30
30
57L
G
UP
57R
H
UP
30
30
Required/Requis/Requerido
Required/Requis/Requerido
30
30
30
30
30
30
UP
30
57R
H
57R
57L
30
Step 2
30
30
Step 1
Step 1
Step 2
30
57L X 2
30
30
30
Step 1Step 1
Step 2
Step 2
30
57R x 2
13
