STRATCO OUTBACK
®
FLAT ATTACHED INSTALLATION GUIDE
GUTTER FRONT
0mm
50 60 70 80 9040302010
100mm
FOLD FOLD
FOLD
FOLD FOLD FOLD
20mm58mm 80mm
110mm24mm
135° EXTERNAL TAGS PAGE 1

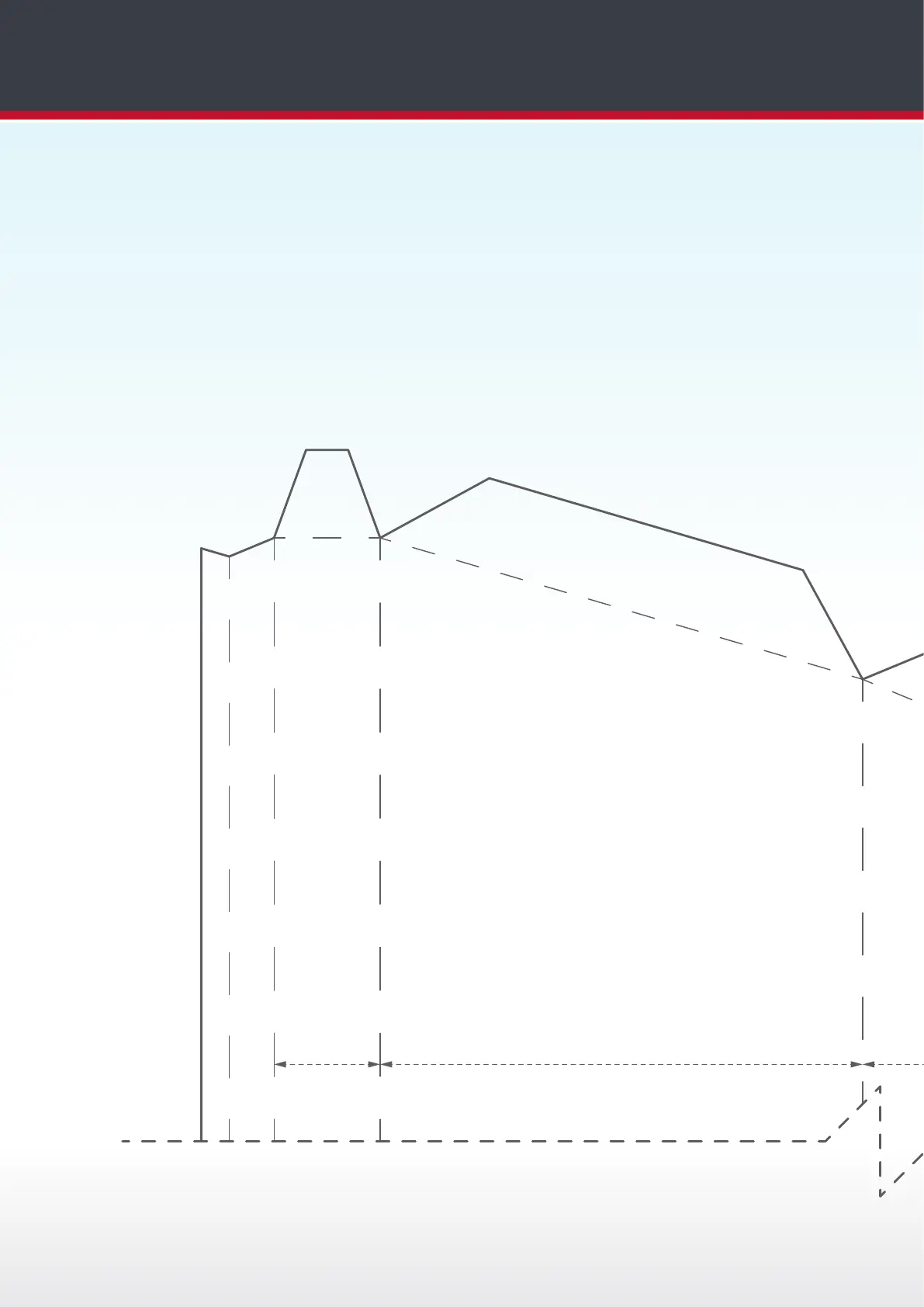

EDGE 160 135° EXTERNAL MITRE FLAT PATTERN TEMPLATE (B)
(WITH TAGS)
CUTOUT TEMPLATE FOR MARKINGUP GUTTERS
FLIP TEMPLATE FOR LEFT & RIGHT VARIATIONS
ENSURE TEMPLATES ARE PRINTED AT “ACTUAL SIZE”
PAIR BELOW TEMPLATE 135° EXTERNAL B WITH 135° EXTERNAL A
FOLD TAGS TO FEED INSIDE ADJOINING GUTTER
RIVET MITRE SIDE A TO THE INTERNAL TAGS OF MITRE SIDE B ONCE NEATLY JOINED
