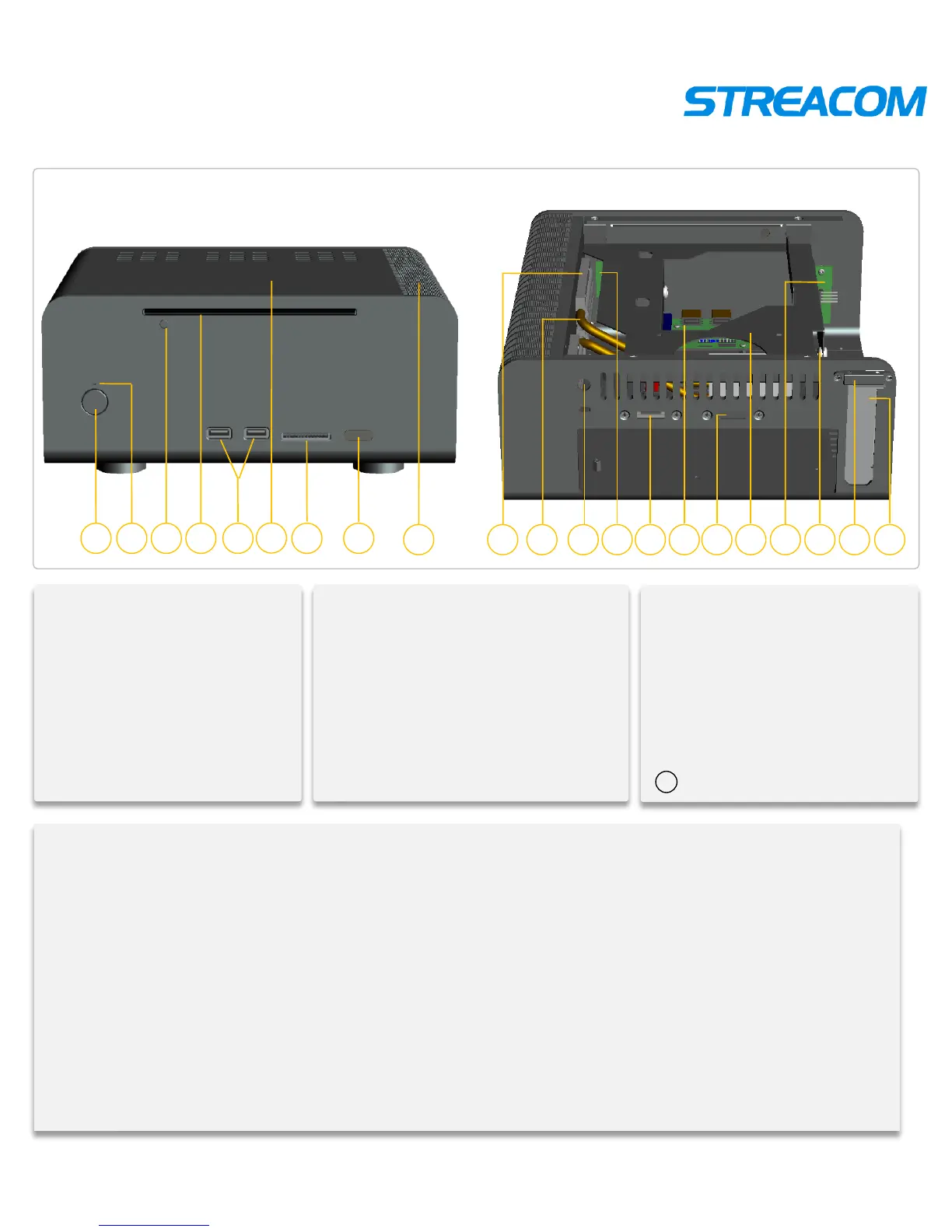

FC8 overview
⑧. IR Receive window
⑨. Chassis heatsink side
⑩. Side Panel’s Small Heat Block
⑪. Heatpipe
⑫. DC hole
⑬. IR receiver
⑭. eSATA cable
⑮. Card reader PCB board
⑯. eSATA expansion slot
⑰. HDD/ODD bracket
⑱. Power PCB board
⑲. HDD anti-vibration circle
⑳. PCI back-up block
. PCI slot
①. Power button
②. Power blue LED
③. ODD button
④. Slot of ODD
⑤. USB port
⑥. TOP panel
⑦. Card reader
1 3 4 7 2 5 8
6
13 12 14 15 21 18 20 19
Model: FC8-2
Material: 100% full Aluminum
Color： Silver / black / Gold
Motherboard： Mini ITX
HDD drive bay： 1x2.5” +1X3.5’’ HDD drive bay
ODD drive bay： an ultra-thin standard slot-in optical drive
Front I/O Port： 2×USB ports
Card Reader： Multi-card Reader
Cooling： Heatpipe
Dimension： 240mm×250mm×100mm (L× W×H)
Power Supply： Optional build in DC power
Remote control： Optional the MCE remote control built-in IR receiver
Net Weight： 2.6KG
9 16 17 10 11
21
