CONNECTING THE TL1 - P5

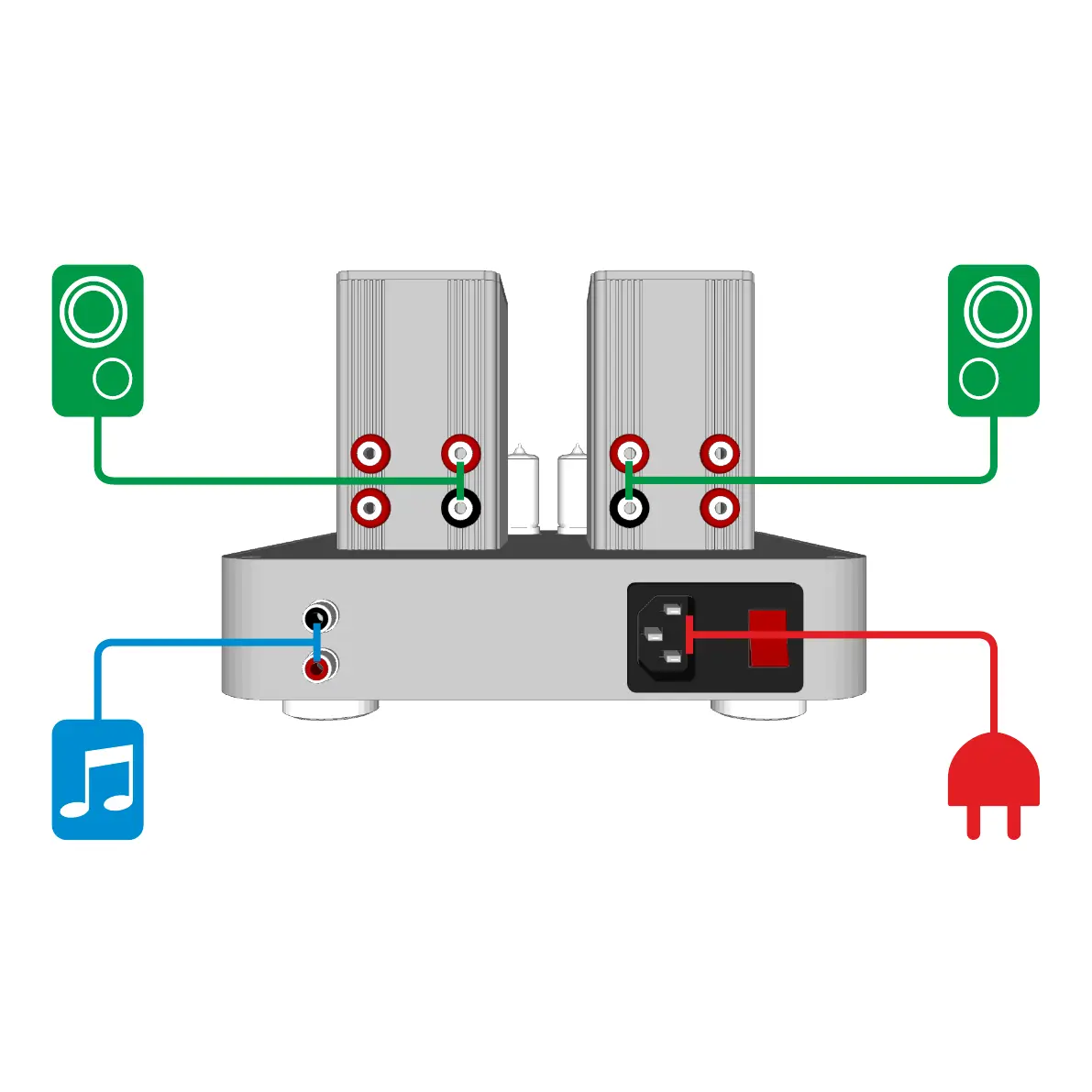

Connecting the TL1
Speakers - Connect the ‘-’ terminal of your speakers to the 0Ω terminal of the amplifier. Depending
on your speaker impedance, connect the ‘+’ terminal to either the 4, 6 or 8Ω terminal of the amplifier.
Note - Only 1 black and 1 red terminal from each side should be connected.
0Ω
8Ω
6Ω
4Ω
0Ω
8Ω
6Ω
4Ω
Audio Source - Connect the amplifier to your audio source e.g. the line out from your HTPC
Power - Finally connect the amplifier to the mains electricity socket, 100-240 VAC
Right
Speaker
Left
Speaker
Audio
Source
Mains
Power
R L
