25 MA_560_A4_180619_en
8. Switch the machine off again by the main switch and pull the power plug.
9. Push the plunger up by hand (until stop by cam).
10. Loosen screw (1) slightly in lever (2) beat the lever upwards until the
plunger lifts the needle by 0.1 - 0.2 mm; tighten well screw (1). (Fig. 18)
ATTENTION!
Make sure that lever (2) is in axial position. (Fig. 18)
11. Finally fix set collar (3) to lever (2). This set collar serves as axial limit stop
and facilitates further plunger settings. (Fig. 18)

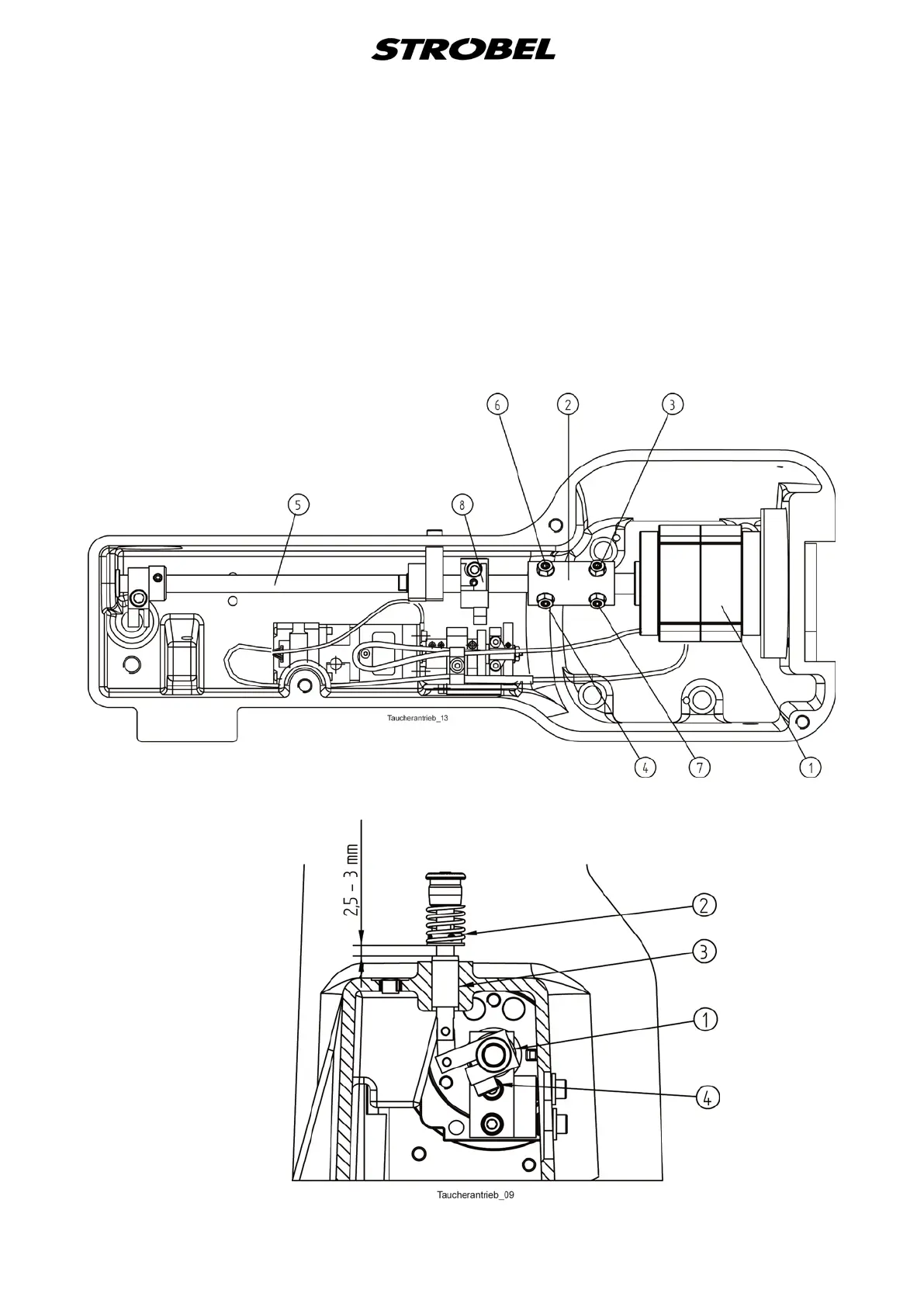

Fig. 16
Fig. 17
