PART 1
1.0 INTRODUCTION
Thank you for purchasing the STRONG SRT ANT 30 DVB-T/T2 antenna. This antenna has been specially
designed to receive digital terrestrial signals. It can be connected to any Digital Terrestrial Receiver (DVB-T/T2)
and is specially designed for indoor use.
This antenna has a built-in low noise amplier that amplies the received signals for better performance. The
stylish housing design will t the antenna perfectly to your Digital TV and digital home cinema.
We recommend that you carefully read this user manual before you install the antenna. This will help you to
get the best performance out of your antenna.
Features
Designed for indoor reception of DVB-T/T2 signals
Built-in LTE lter for better reception
Compatible with DVB-T/T2 receivers supporting active antenna output (5 V)
Enhanced technology and ecological housing materials
Suitable for vertical and horizontal reception by universal antenna holder
Built-in Low Noise Amplier technology

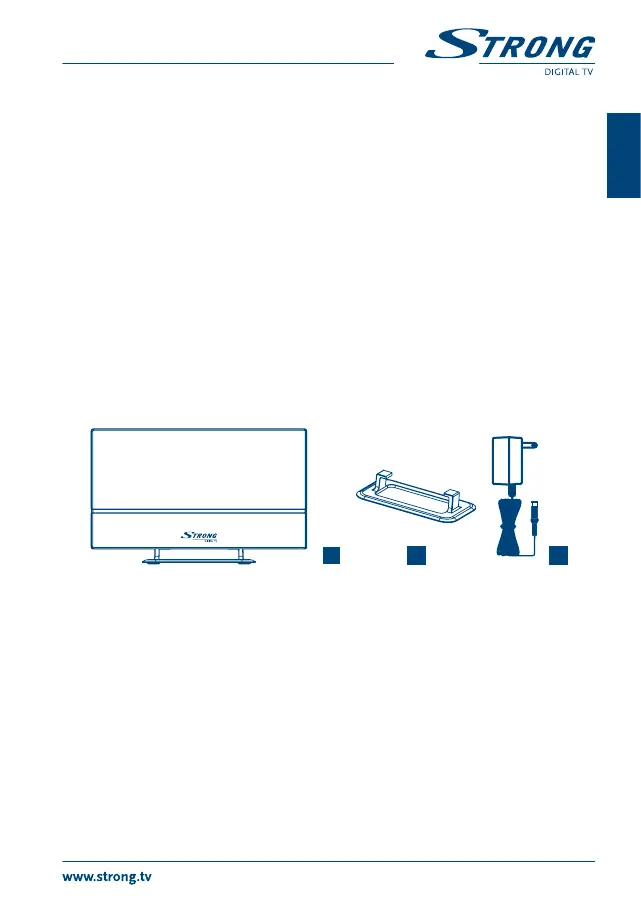

2.0 PACKAGE CONTENT
Before starting your installation, please check the contents.
1. Antenna main unit (cable attached)
2. Standing unit
3. Power adaptor
4. User manual
1 2 3
3.0 SPECIFICATIONS
Frequency Range VHF: 174 ~ 230 MHz / UHF: 470 ~ 790 MHz
Amp. Gain VHF: 20 ± 3 dB / UHF: 16 ± 4 dB
LTE Attenuation > 4 dB (790 MHz) / 20 dB (830 MHz)
Noise Figure (Max.) < 4 dB
O/P Return Loss < -6 dB
RF Output Impedance 75 Ohm
RF Coaxial Cable IEC Male / 180 cm x1 / 1.5 C-2 V
Power Adaptor AC Input: 230 V / DC Output: 12 V / 250 mA
4.0 INSTALLATION
Powering the antenna with the power adaptor:
1. Take out the main unit and check the accessories.
2. Take the coaxial cable that is attached to the antenna to your Digital Terrestrial Receiver (or Digital TV).
3. Take out the power adaptor. Connect it to the DC input of the antenna and plug the AC end to an AC
outlet. (Please only use the supplied power adaptor.)
To Next Page
