2
Stryker C-mount Couplers are available in autoclavable and non-
autoclavable models:
Indications/Contraindications
C-mount couplers are indicated for use in surgical procedures where a
Stryker endoscopic camera and a compatible endoscope are used. There
are no known contraindications.
Setting Up the Coupler

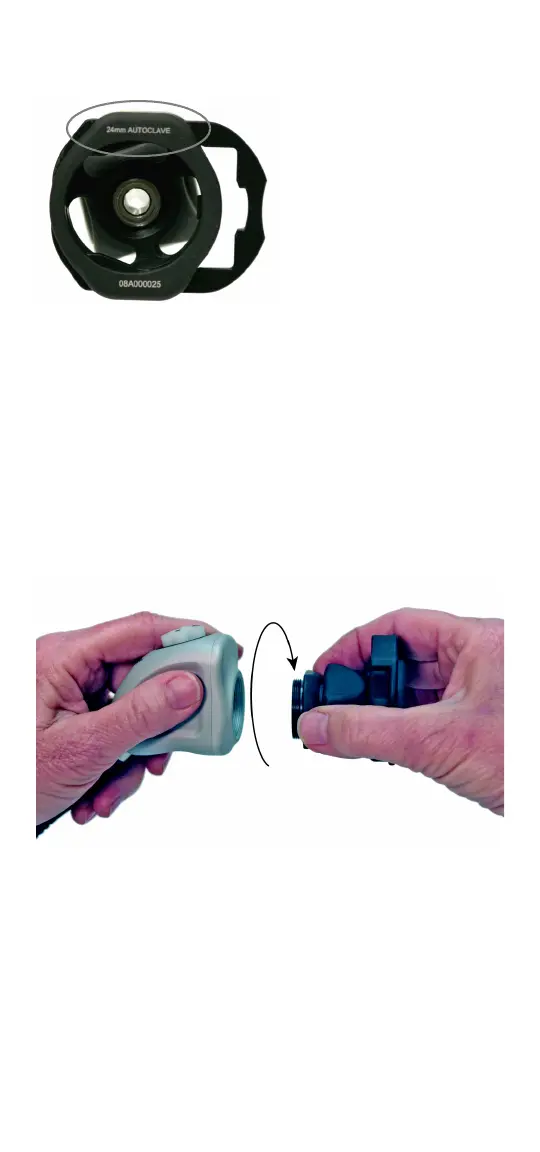

1. Gripping the rear adapter, screw the coupler into the camera head until
it forms a tight seal (see Figure 2).
Caution When attaching or removing the coupler, grip only the rear
adapter, as twisting other parts of the coupler may result in
mechanical damage.
Figure 2: Connecting the coupler and camera head.
2. Rotate the endobody clockwise (a) until the endobody clamp is aligned
with the camera (b) as in Figure 3.
Autoclavable
1188-410-110
(marked
AUTOCLAVE)
Non-autoclavable
1188-020-122
