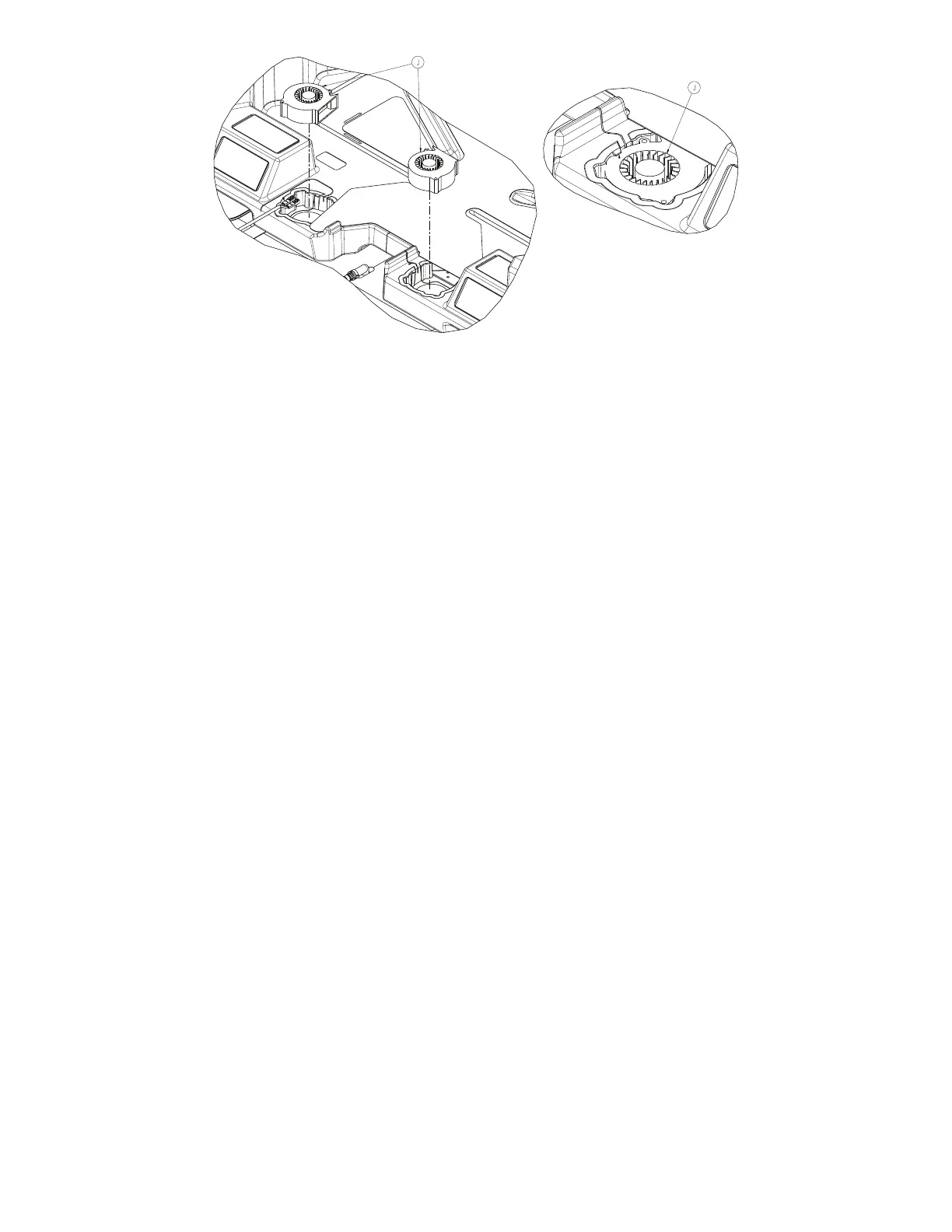

FFiigguurree 2211 –– LLAALL ffaann
15.Reverse steps to reinstall.
NNoottee
• During reinstall, make sure to align the Velcro® patches.
• After installation, remove the zipper pull tool or equivalent from the zipper.
• Make sure that the watershed covers the zipper.
16.Verify proper operation before returning the product to service.
FFoooott bbooxx ccoooolliinngg ffaann rreeppllaacceemmeenntt
TToooollss rreeqquuiirreedd::
• Zipper pull tool or equivalent
• 5/16” Nut driver
PPrroocceedduurree::
1. See
Foot box cover access
(page 31).
2. Disconnect the cooling fan from the quick connection.
3. Using a 5/16” nut driver, remove the nut (H) that secures the fan cage to the foot box. Save the nut (H) and the washer
(D) (Figure 22).
NNoottee -- During reinstall, torque (H) to 22 ± 4 in-lb.
EN 44 2971-009-002 Rev D.0
