WWAARRNNIINNGG -- To avoid exposure to potentially infectious fluid, make sure the manifold is held in a vertical position when
removing the front housing cap to gain access to the secondary collection basket.

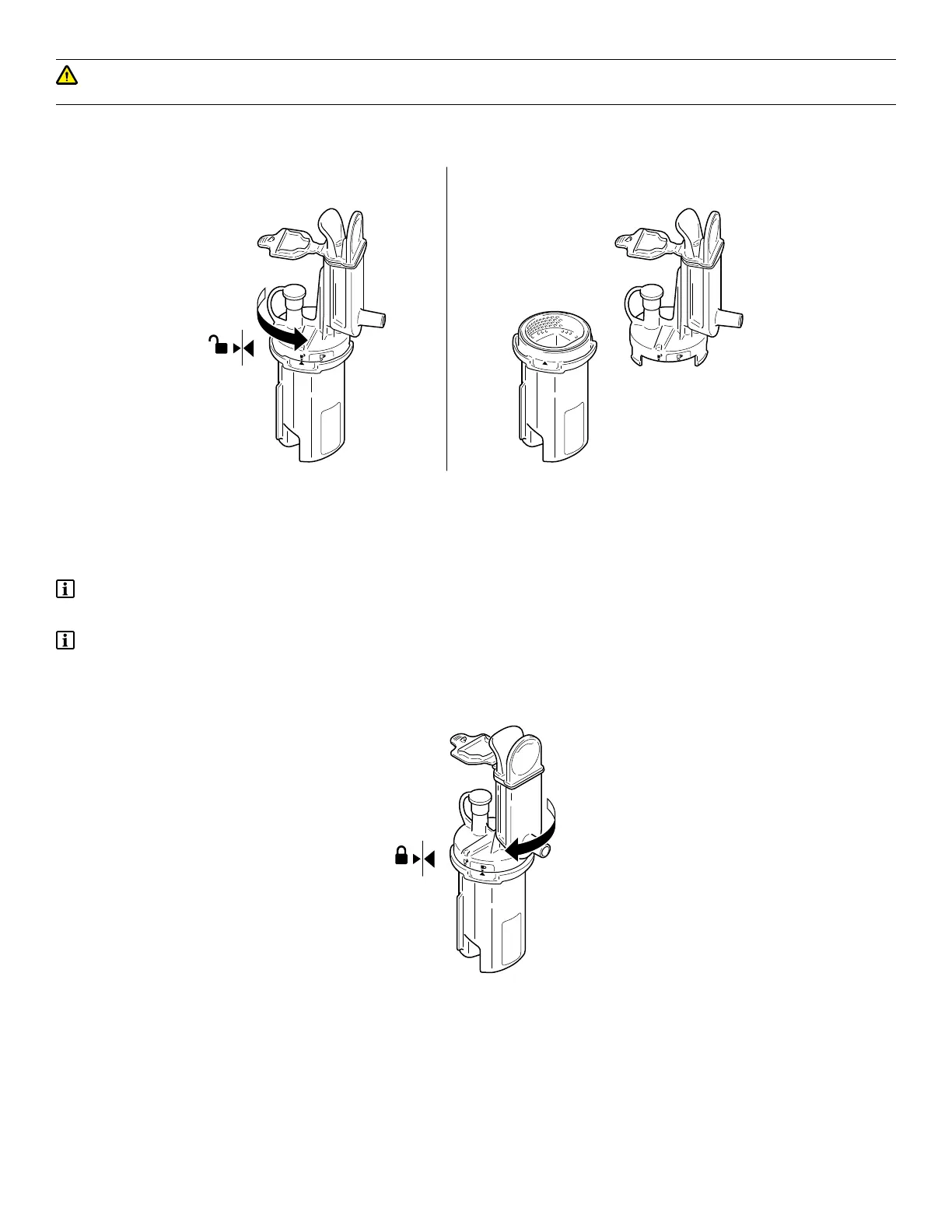

4. Holding the manifold in a vertical orientation, twist the front housing cap of the manifold counterclockwise to open the
manifold and access the secondary collection basket (Figure 33).
FFiigguurree 3333 –– AAcccceessss SSeeccoonnddaarryy CCoolllleeccttiioonn BBaasskkeett
5. Transfer the specimen from the secondary collection basket inside the manifold into an appropriate container located on
the work surface of the rover.
NNoottee -- If suction is required immediately, a new manifold may be installed into the rover directly after removing the first
manifold.
NNoottee -- If suction is not required immediately, the manifold may be reassembled and inserted into the rover after
transferring the specimen.
6. To reassemble the manifold, align the tabs and keyed slots of the two halves of the manifold and then twist clockwise
until the two halves are locked in place (Figure 34).
FFiigguurree 3344 –– RReeaasssseemmbbllee tthhee MMaanniiffoolldd
7. Follow the proper procedures to insert the specimen collection manifold into the rover, connect the suction tubing to the
manifold port, and select a suction limit before resuming suction.
EN 46 700000969828 Rev-AA
