24

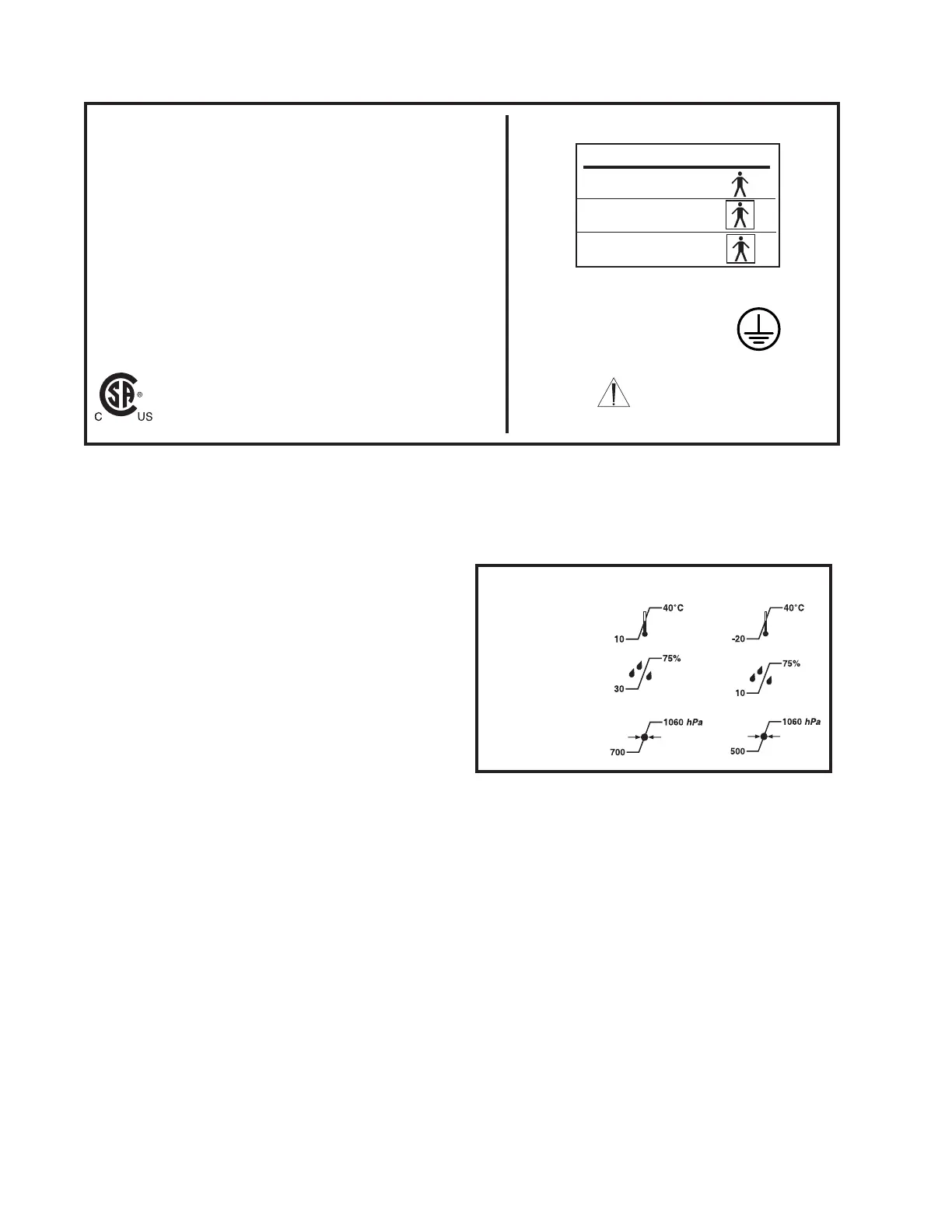

Specifications
Electrical: 100-120VAC, 50-60Hz, 6.0A
220-240VAC, 50Hz, 3.0A
Approval:
CSA International
• UL 60601-1
• CAN/CSA-C22.2 No. 601.1 M90
• IEC 60601-1
Class I
PORT TYPE SYMBOL
Endo B
TPS1 BF
TPS2 BF
IPX0 Ordinary Equipment
Protective Earth Ground
Duty Cycle: Continuous operation with
intermittent loading
Refer to cycle times defined in the
TPS handpiece instructions.
Handling your console and equipment
• When setting up your console, place on a sturdy, flat surface, and
carefully follow all setup instructions.
• When connecting or disconnecting a cable, always hold the cable by
its connector (the plug, not the cord).
• Never force a connector into a port. If the connector and port do
not join with reasonable ease, they probably don't match. Make sure
that the connector matches the port and that you have positioned the
connector correctly in relation to the port.
• To ensure the longevity, performance, and safety of this equipment,
package in original package materials when storing or transporting.
If the console experiences sporadic electrical interference:
• Turn off all electrical equipment not in use in the operating room.
• Relocate electrical equipment; increase spacial distance.
• Plug the TPS console and other operating room equipment into different
outlets.
Environmental Conditions
These conditions apply to all components of the TPS system unless
otherwise specified in the information supplied with that device.
Environmental Conditions: Operation Storage and Transportation
Temperature:
Relative humidity:
Atmospheric Pressure:
Specifications listed are approximate and may vary slightly from unit to
unit or by power supply fluctuations.
Models: 5100-1 & 5100-1A TPS Console
5100-50 & 5100-50A TPS Irrigation Console
Size: 11.8 in. [299 mm] width
7.0 in. [179 mm] height
9.0 in. [229 mm] depth
12.2 in. [310 mm] depth (units with irrigation pump)
Weight: 9 lbs. [4.1 Kg]
14.1 lbs. [6.4 Kg] (units with irrigation pump)
Compliance Statements
Federal Communication Commission FCC ID: Q9R-5100
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference
that may cause undesired operation.
Note that FCC regulations provide that changes or modifications
not expressly approved by Stryker
Instruments could void your authority to operate this equipment.
IC: 4919A-5100
The term "IC:" before the radio certification
number only signifies that Industry Canada
technical specifications were met.
