The Exacta
®
2 models with the dovetail are calibrated for use with S/R
interchangeable heads having a 1 7/16” Common Centerline Length
(CCL). Use of interchangeable heads with a different CCL or head
extension(s) will make the tool inaccurate until and unless it is recalibrat-
ed with a head having the same CCL as that which has been selected
for use. Always recalibrate the tool immediately if changing to a head
with a different CCL or if a head extension is to be used.
Ratchets

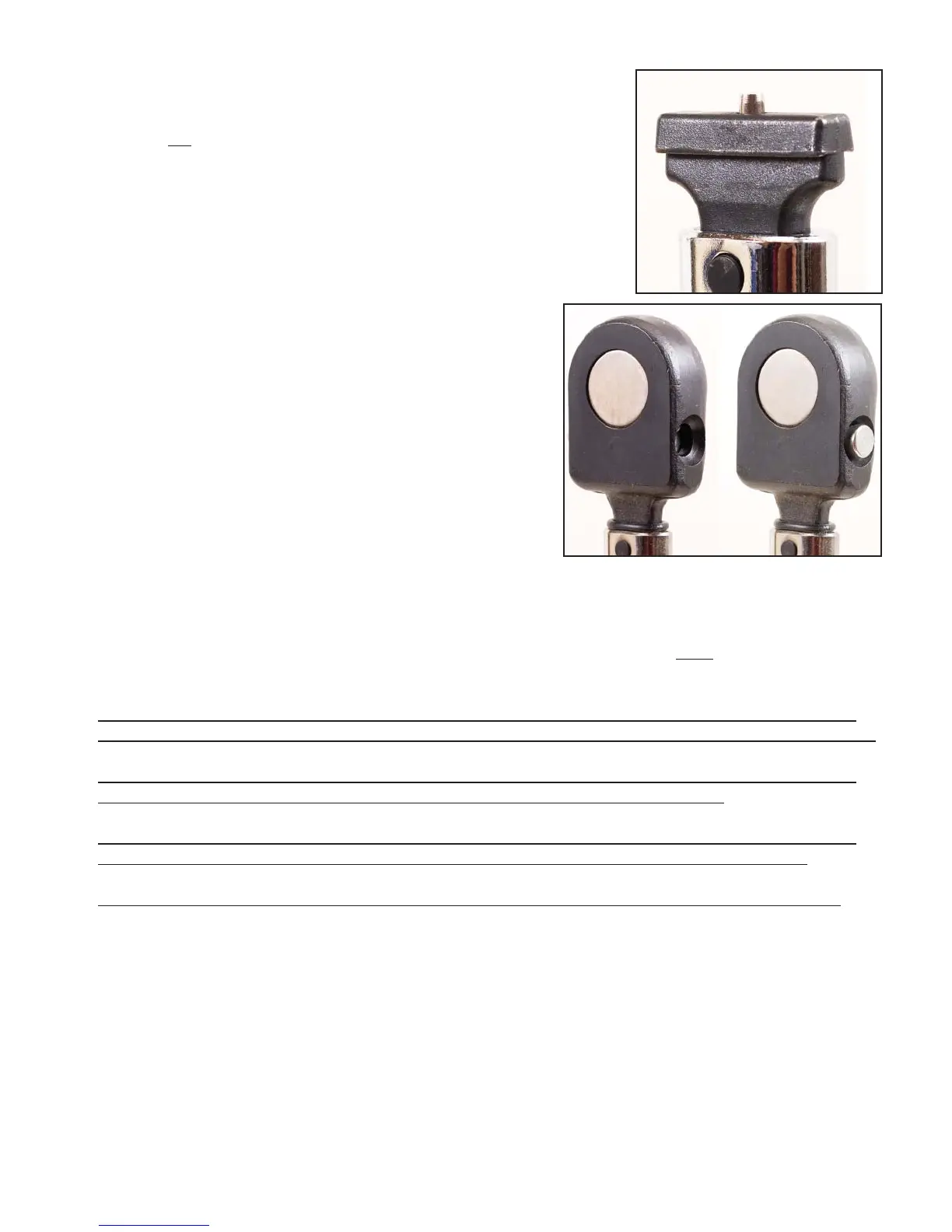

Some Exacta
®
2 models have ratcheting square drives instead of the
S/R dovetail. These are slide pin ratchets capable of being set
to ratchet in either the clockwise (CW) or counter-clockwise
(CCW) direction. To change the ratcheting direction, remove all
torque load from the tool and push the slide pin to the opposite
side from that to which it is currently biased.
The ratchet should be disassembled, cleaned and lubricated
periodically. The procedure for performing this function can
be found in the FAQ section of our website. See the Ratchet
Replacement procedure (FAQ 7) and simply clean and replace
the original parts instead of installing new parts. If the ratchet
is damaged, contact your S/R distributor and order the correct
ratchet renewal kit for your tool, then use the instructions on
the website to perform the replacement.
Battery and Battery Charger Selection
The Exacta
®
2 digital torque wrench has very specifi c battery requirements that must be adhered to. Only
batteries meeting these requirements may be used.
• Use of any batteries other than those provided by S/R or meeting the specifi cations on the Batteries
page of our website (http://www.srtorque.com/batteries.html) may cause the tool to become inaccurate.
• Use of any batteries other than those provided by S/R or meeting the specifi cations on the Batteries
page of our website (http://www.srtorque.com/batteries.html) may damage the tool.
• Use of any batteries other than those provided by S/R or meeting the specifi cations on the Batteries
page of our website (http://www.srtorque.com/batteries.html) will void the warranty on the tool.
• Under no circumstances should alkaline batteries, rechargeable or disposable, be used in the tool.
The correct battery and charger pack (NAFTA countries only) for tools in the Exacta
®
2 digital torque
wrench line is S/R part number 21259. This pack includes a 15-minute charger and four (4) AA NiMH 2200
mAh batteries.
The correct replacement battery pack (NAFTA countries only) for tools in the Exacta
®
2 digital torque
wrench line is S/R part number 21258. This pack includes four (4) AA NiMH 2500 mAh batteries.
For countries outside NAFTA, consult the batteries page on our website (http://www.srtorque.com/batteries.
html) to fi nd the correct battery and battery charger for use in your country. Follow the manufacturer links
provided and select the appropriate product for your country and need.
