3

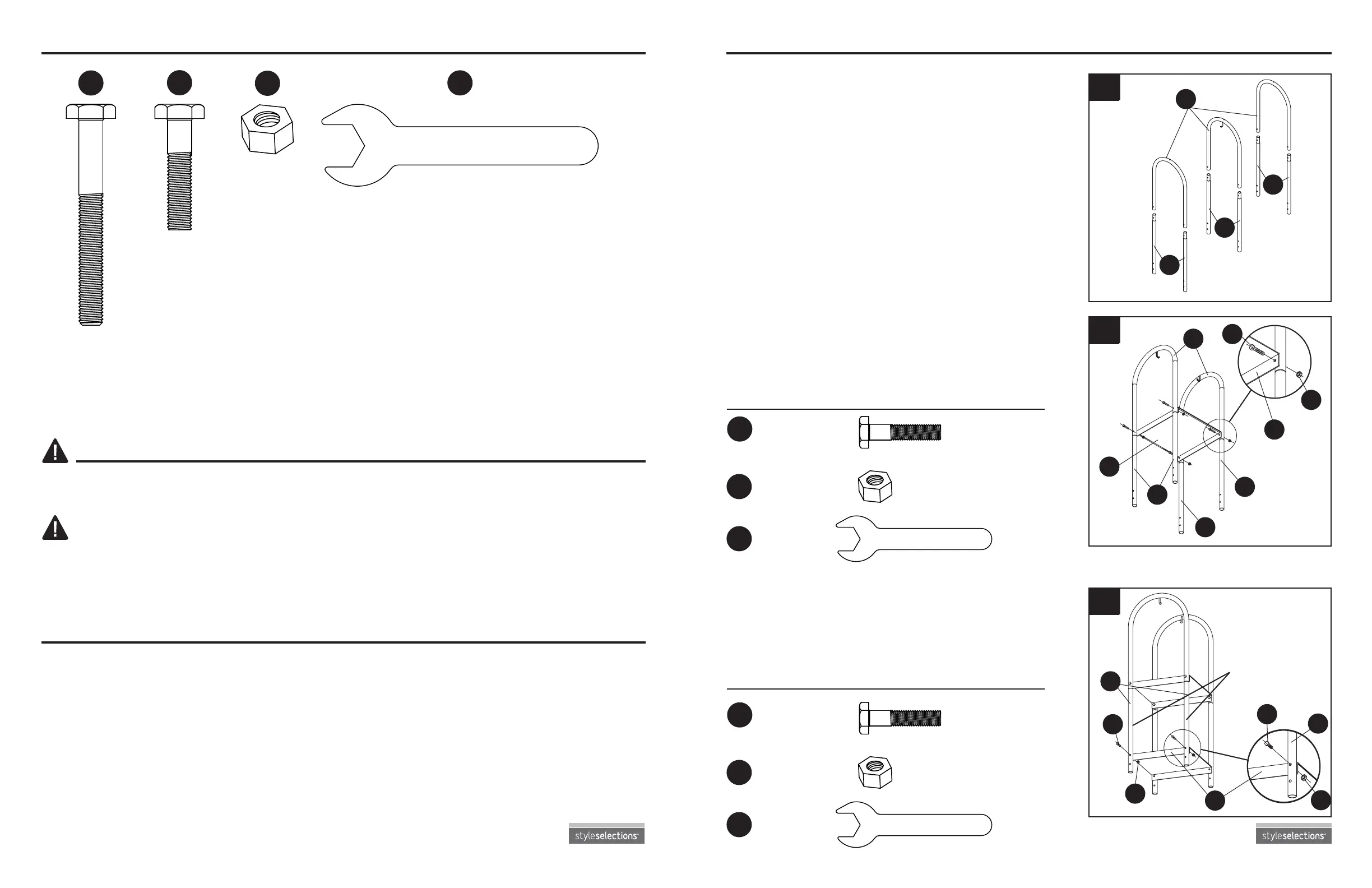

HARDWARE CONTENTS (shown actual size)
PREPARATION
SAFETY INFORMATION
WARNING
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 25 minutes
Tools Required for Assembly (included): Wrench
• Do not allow children to play with or around log rack.
• Shelf weight capacity: 20 lbs. max. (per shelf).
• Tote weight capacity: 20 lbs. max.
M8 x 65 mm
Bolt
Qty. 12
AA
M8 x 35 mm
Bolt
Qty. 8
BB
M8 Nut
Qty. 20
CC
M8 Wrench
Qty. 2
DD
Lowes.com
4
ASSEMBLY INSTRUCTIONS
Hardware Used
Hardware Used
1. Slip a U-shape tube (A) into the top of two
uprights (B) and repeat process so you have three
sets. Make sure to align the pre-drilled holes.
2. Attach 1 shelf (D) to 2 of the assemblies from step 1.
Secure with 4 M8 x 35 mm bolts (BB).
Attach nuts (CC), then tighten with wrench (DD).
Note: Ensure the preassembled hooks on U-shape
tubes (A) face each other.
3. Attach the remaining shelf (D) to the bottom of the
assembly from step 2 using predrilled holes on upright
tube (B). Secure to one side with 2 M8 x 35 mm bolts
(BB). Attach M8 nuts (CC), then tighten with wrench
(DD).
1
2
3
M8 x 35 mm
Bolt
M8 x 35 mm
Bolt
M8 Nut
M8 Nut
*Secure shelf on
one side only
Wrench
Wrench
x 4
x 2
x 4
x 2
x 2
x 2
BB
BB
CC
CC
DD
DD
D
CC
D
BB
BB
BB
CC
CC
A
A
B
B
B
B
B
B
B
B
D
Lowes.com
To Next Page
