Display Average Compartment Temperatures
The temperature signal from the thermistor in each compartment is monitored by the microprocessor, then displayed
in the control panel display. The LED arrow closest to the appropriate display window indicates which compartment
(upper or lower) the temperature is associated with. Though compartment air
temperature fluctuates slightly, the
“average” temperature is displayed (See Figure 3-16).
NOTE: The temperature range in a wine storage compartment is 38°F / 3°C to 65°F / 18°C.
NOTE: If a compartment temperature should ever exceed either the high offset or low offset (for example: when a
door is left open), the temperature displayed at the control panel will change by 1° per minute.

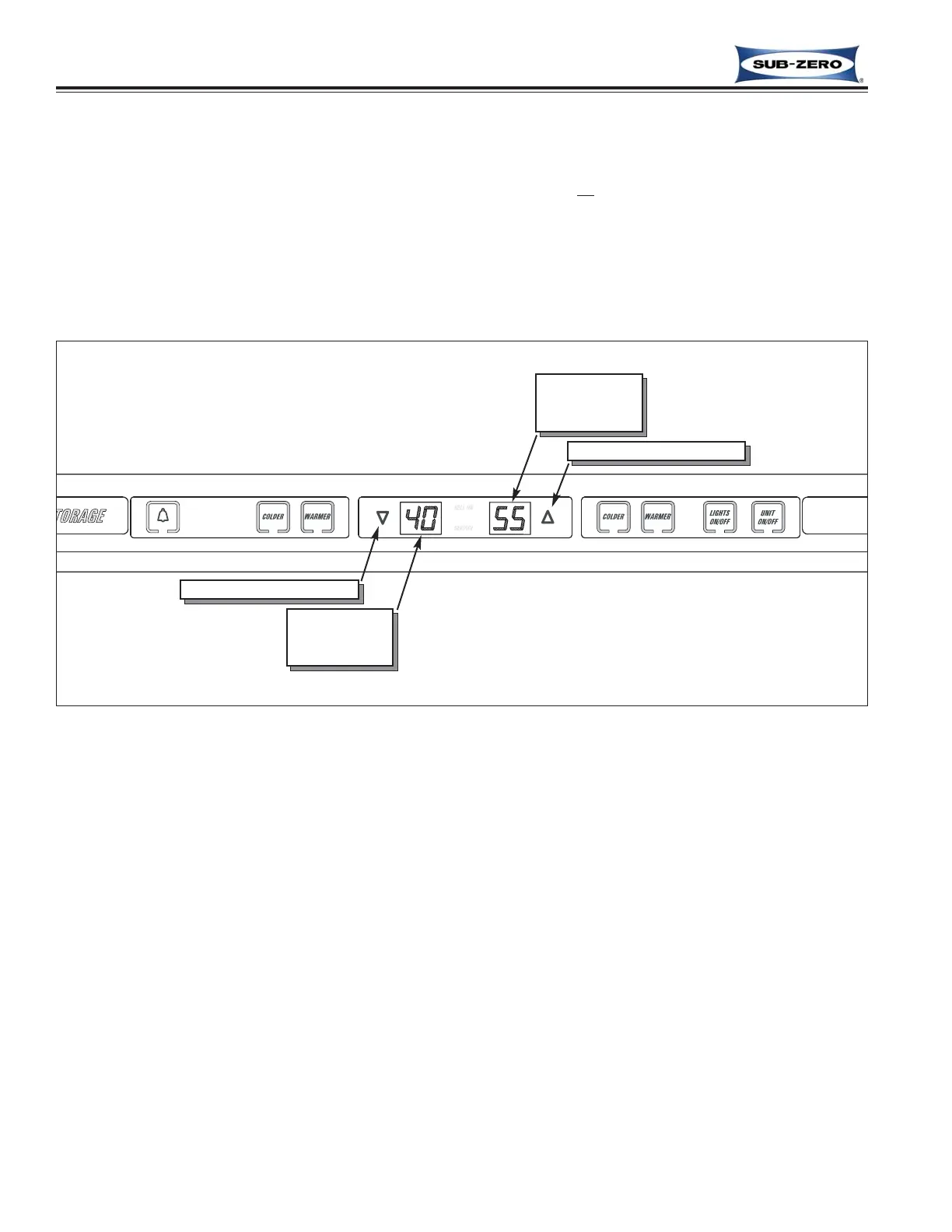

Figure 3-16. Temperature Display (Shown in Fahrenheit Units of Measure)
Upper
Compartment
Temp Reading
Lower
Compartment
Temp Reading
Lower Compartment Arrow
Upper Compartment Arrow
