Custom Panels
For overlay and ush inset applications, custom door
panels must be provided. Handle hardware must also be
provided for overlay and ush inset applications. Refer to
panel requirements below and the charts on pages 15–18
for custom panel dimensions for your specic design
application.
IMPORTANT NOTE: Do not cover a glass door with a solid
panel.
Finish all sides of the custom panels. They may be visible
when the door is open or through the window of glass door
models.
PANEL REQUIREMENTS
PANEL WEIGHT MAX
ICBBI-36R, ICBBI-36F 34 kg
All Other Models 23 kg
Grille Panel 6 kg
PANEL THICKNESS MIN
All Panels 16 mm
BUILT-IN REFRIGERATION
BUILT-IN PRO 48 INTEGRATED WINE
Custom Panels
PANEL MOUNTING KIT
A Sub-Zero custom panel mounting kit eliminates the need
for a backer and spacer panel and is avail able through an
authorized Sub-Zero dealer. The kit consists of mounting
cleats, screws and gages used to properly position the
cleats. The kit is available for all built-in models. Dual instal-
lations require two mounting kits.
OVERLAY PANELS
Overlay panels are typically created by combining a 19 mm
custom panel, a 3 mm spacer panel and a 6 mm backer
panel. Refer to the illustrations below.
When installing two units side by side, refer to page 10 for
dual standard installations.
3 mm (OVERLAY)
CUSTOM PANEL
SPACER PANEL
BACKER PANEL
TRIM
8 mm min
6 mm
3
mm
CUSTOM
PANEL
SPACER
PANEL
BACKER
PANEL
19
mm
TYPICAL

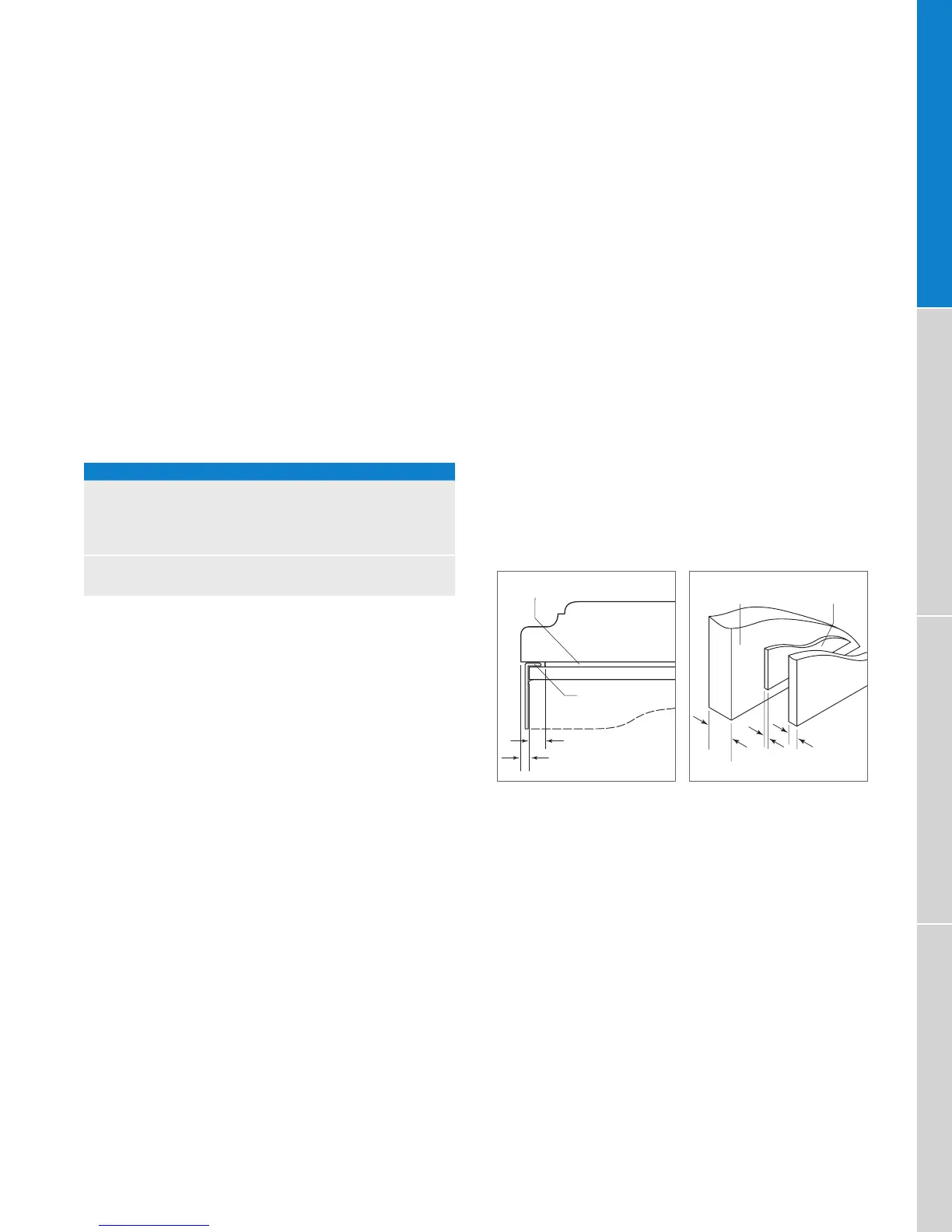

Panel assembly cross section
(overlay).
Panel assembly rear view.
