WINE STORAGE

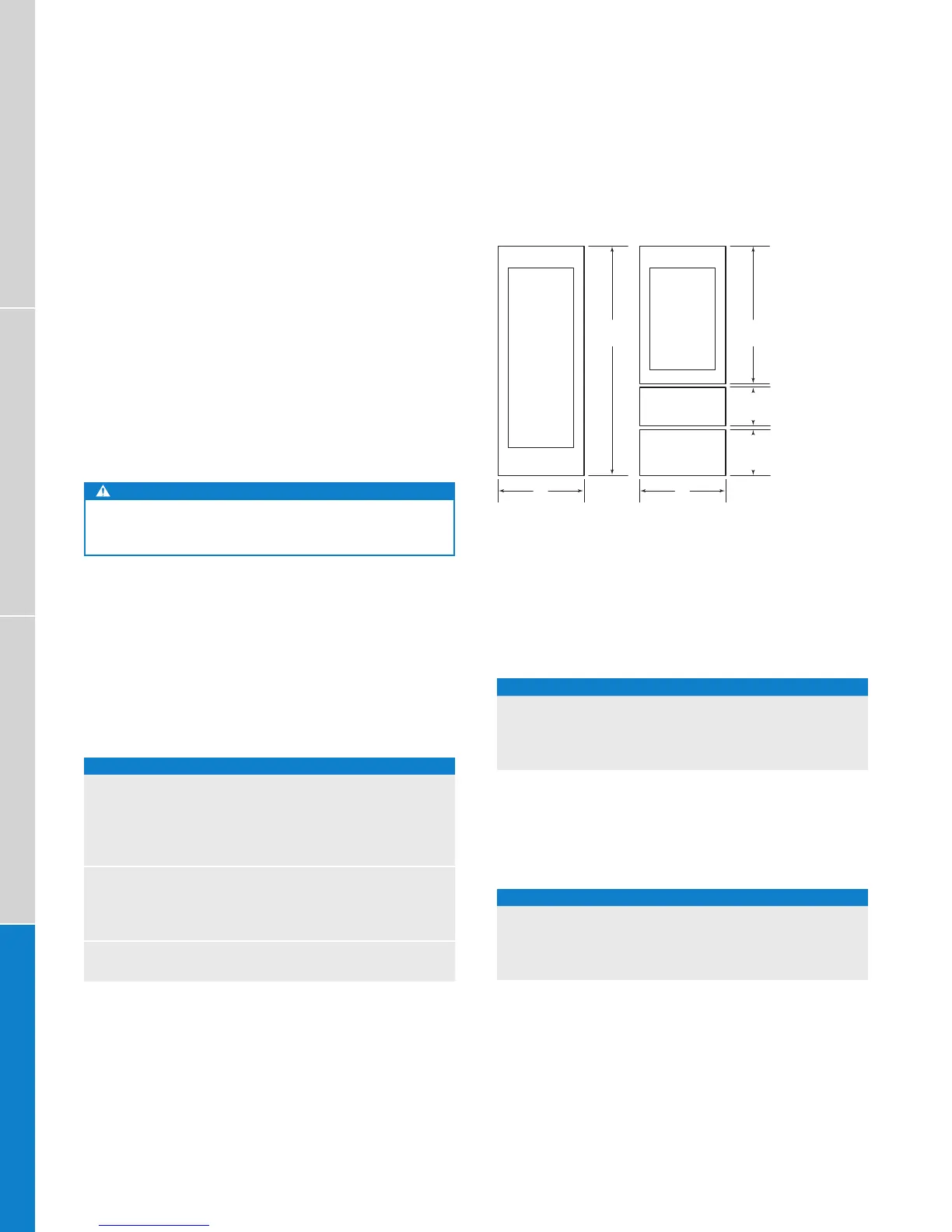

TYPICAL PANEL DIMENSIONS
W
1254
mm
345
mm
424
mm
W
2029
mm
Column
Tall
Custom Panels—Integrated Models
For integrated (ICBIW) models, custom door panels and
handle hardware must be provided. Refer to the panel
requirements chart and typical panel dimensions.
Do not install a solid panel on the glass door unit. A solid
door is available as a sales accessory through an authorized
Sub-Zero dealer.
The thickness of the custom panel can vary. A minimum
16 mm thick panel is required, but the thickness can be
increased provided it does not exceed the weight limit. The
depth of each integrated model is 610 mm. Allow for panel
thickness when planning the nished opening depth. Refer
to the full-scale template on page 43.
CAUTION
As reveals between cabinetry and the unit decrease,
severe nger pinching can occur while door is closing.
Finish all sides of custom panels. They will be visible when
the door/drawer is open.
D-style handles are recommended. Door handles must be
located near the edge of the panel opposite the hinge and
should be centered top to bottom. Drawer handles must
be located near the top edge of each panel. Stainless steel
tubular and pro handles are avail able through an authorized
Sub-Zero dealer.
PANEL REQUIREMENTS
STILES / RAILS WIDTH
Stiles 83 mm
Top Rail 197 mm
Bottom Rail 241 mm
Bottom Rail (ICBIW-30R) 114 mm
PANEL WEIGHT MAX
Door Frame 16 kg
Door Frame (ICBIW-30R) 11 kg
Drawer Panel 7 kg
PANEL THICKNESS MIN
All Panels 16 mm
Typical panel dimensions are based on a 2134 mm nished
height, 102 mm toe kick and 3 mm reveals. Panel dimen-
sions must be adjusted accordingly for all other installations.
Refer to the illustration for panel heights and the chart below
for panel widths.
PANEL WIDTH
MODEL W
ICBIW-18 451 mm
ICBIW-24 603 mm
ICBIW-30, ICBIW-30R 756 mm
DUAL INSTALLATION
For dual installations, refer to the illustration for panel
heights and the chart below for panel widths.
PANEL WIDTH
MODEL W
ICBIW-18 452 mm
ICBIW-24 605 mm
ICBIW-30, ICBIW-30R 757 mm
