Sub-Zero ICBBI-36F Design Guide

subzero.com | 65
WINE STORAGE
DOOR CLOSED
UNDERCOUNTER
UNIT
ADJACENT
CABINETRY
19 mm DOOR PANEL
13
mm
3
mm
6 mm
HINGE AT 145°
OPENING
(DOOR OPENS PAST 145°)
25 mm0
SCALE

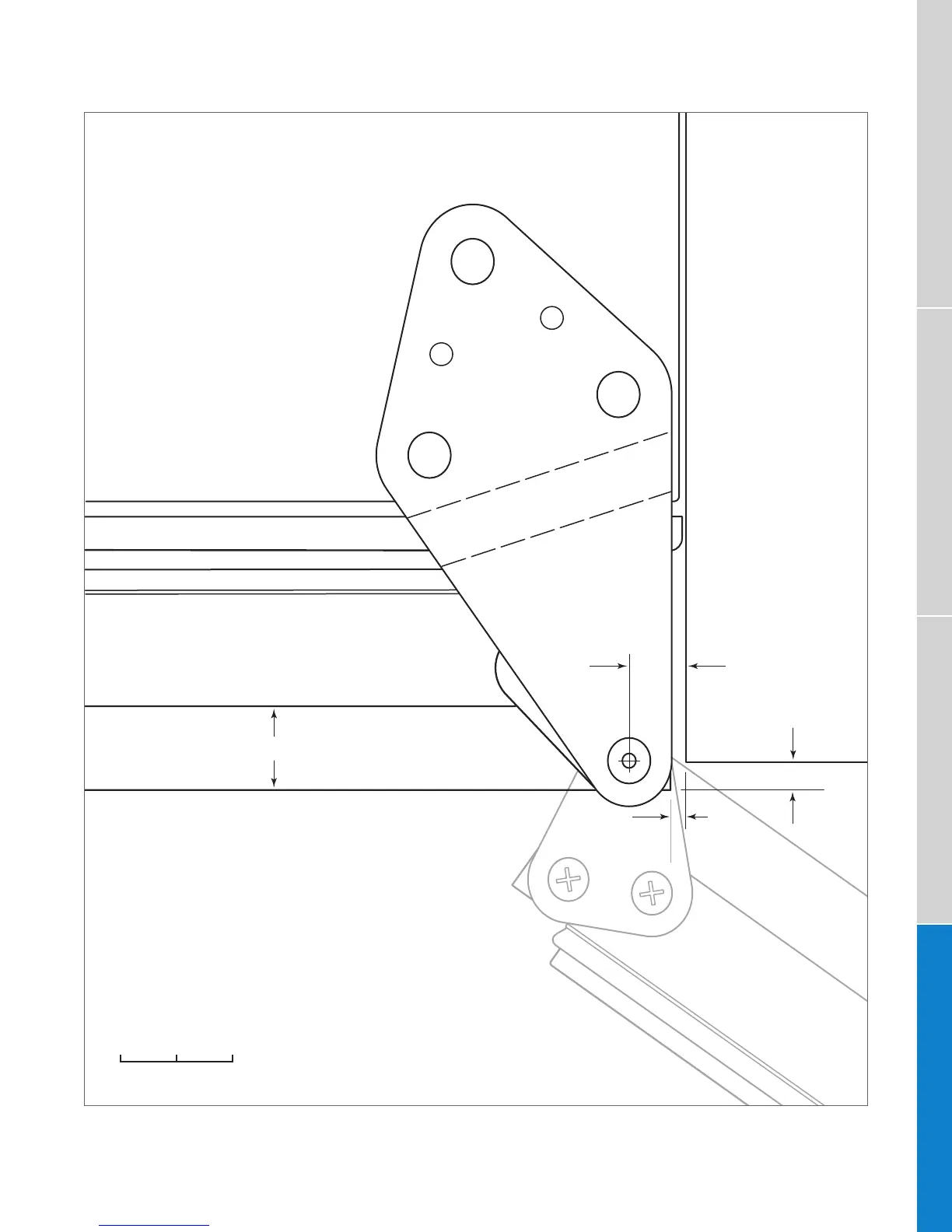

145° door opening (top view).
Door Clearance—ICB424G
FULL-SCALE TEMPLATE
To allow for a 145° door opening, the
unit should extend a minimum of 6 mm
beyond the front surface of adjacent
cabinetry. The unit can be installed ush,
however, there is potential for interference
with the panel if the door is opened past
90°.
BUILT-IN PRO 48 INTEGRATED WINE

Sub-Zero ICBBI-36F Specifications
