By specification, various kinds of information (including alerts, etc.) are displayed on the multi-
information display.
The presence/absence of tell-tales, and the design, depend on vehicle grade, equipment, etc.

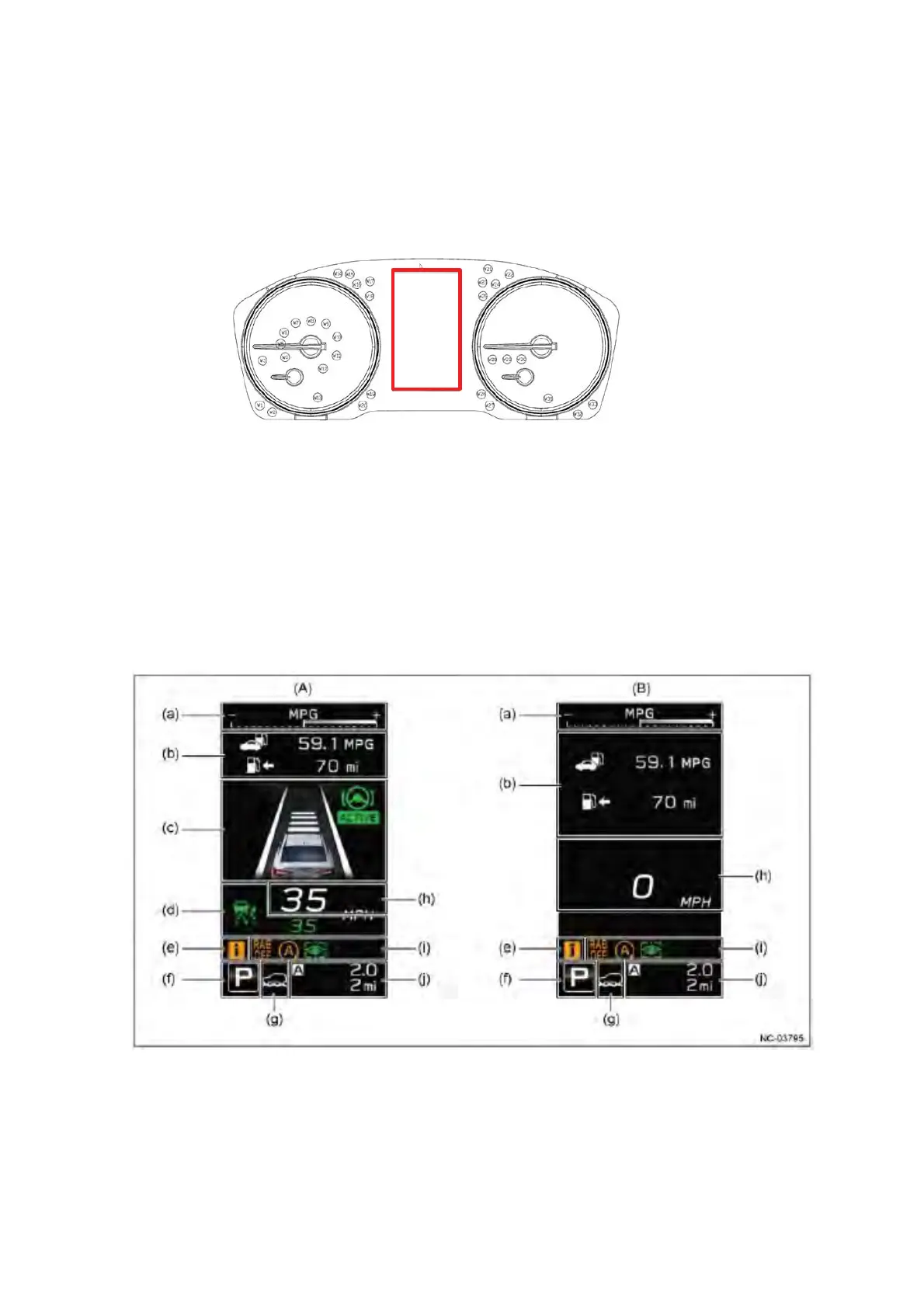

䙟 Multi-Information Display (MID)
㻌 In addition to driving conditions and alerts displayed when EyeSight is in use, the multi-
information display is used to display various kinds of driving-related information on the 4.2-inch
screen.
CCU create the image of the MID by CAN information, and sends to the MID.
㻌 The content displayed on the screen differ depending on whether or not EyeSight is running.
(4) Telltale
(A) EyeSight (Active) (B) EyeSight (Nonactive)
(a) The ECO gauge/information display (f) Shift position display
(b) The basic screen (g) SI-DRIVE display / X-MODE display
(c) EyeSight screen (h) Vehicle speed
(d) EyeSight screnn/ Cruise control screen ( I ) Fixed Warning Display
(e) Information marks ( j ) Trip meter/odometer
