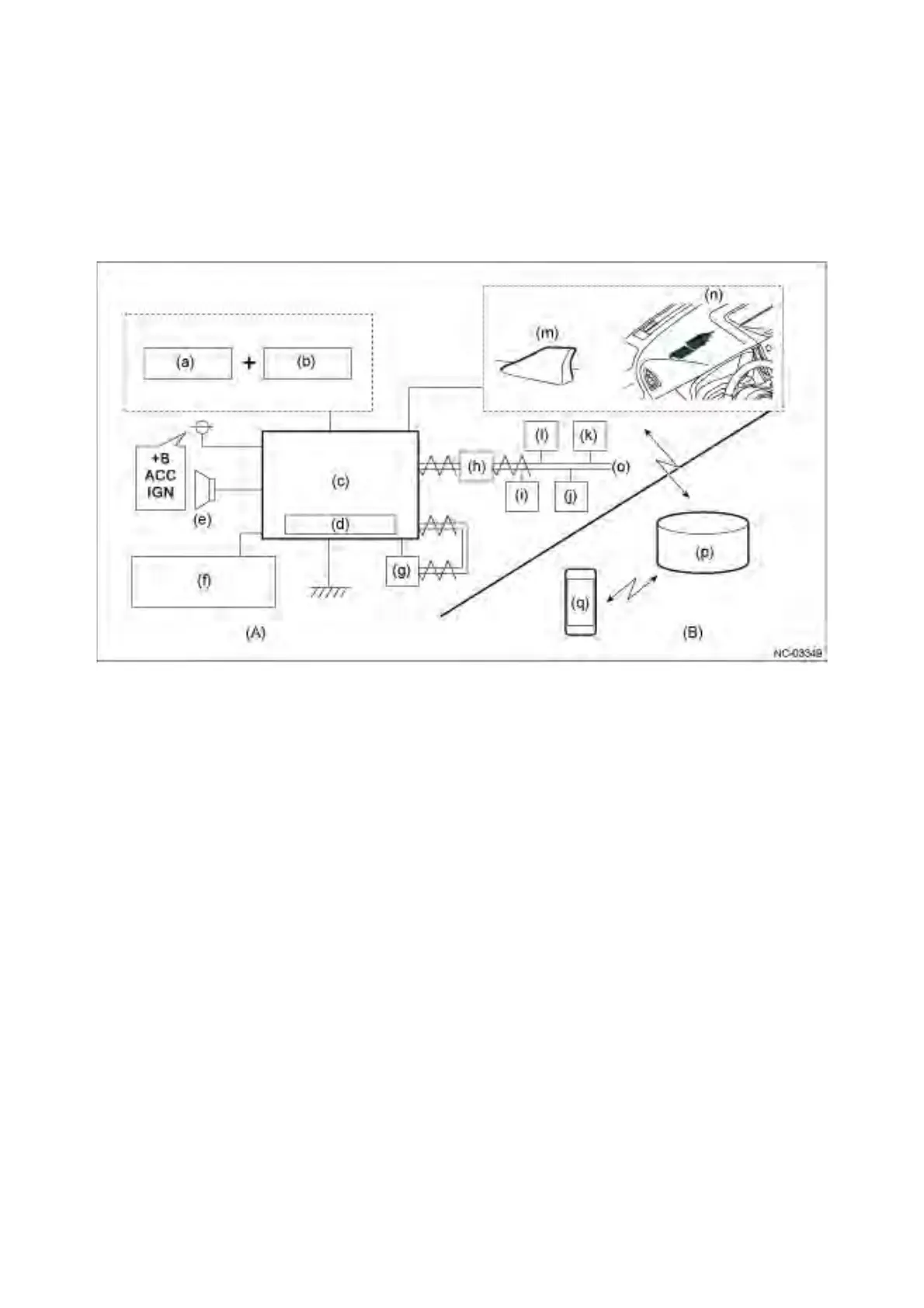

< System cofiguration >
(A) SUBARU PART (B) SOA PART
(a) Microphone (j) Meter
(b) Switches
with integrated indicators (k)
E/G ECU
(c) Data Communication Module䠄DCM䠅 (l) TCU
(d) Back Up Battery (m
) Roof antenna䠄
TEL䠅
(e) Speaker (n) Instrument Panel Sub-antenna (TEL/GPS)
(f) Navi/Display Audio (o) CAN Communication
(g) A/B ECU (p) External Server
(h) CGW (q) Smartphone
(i) BIU
To Next Page
