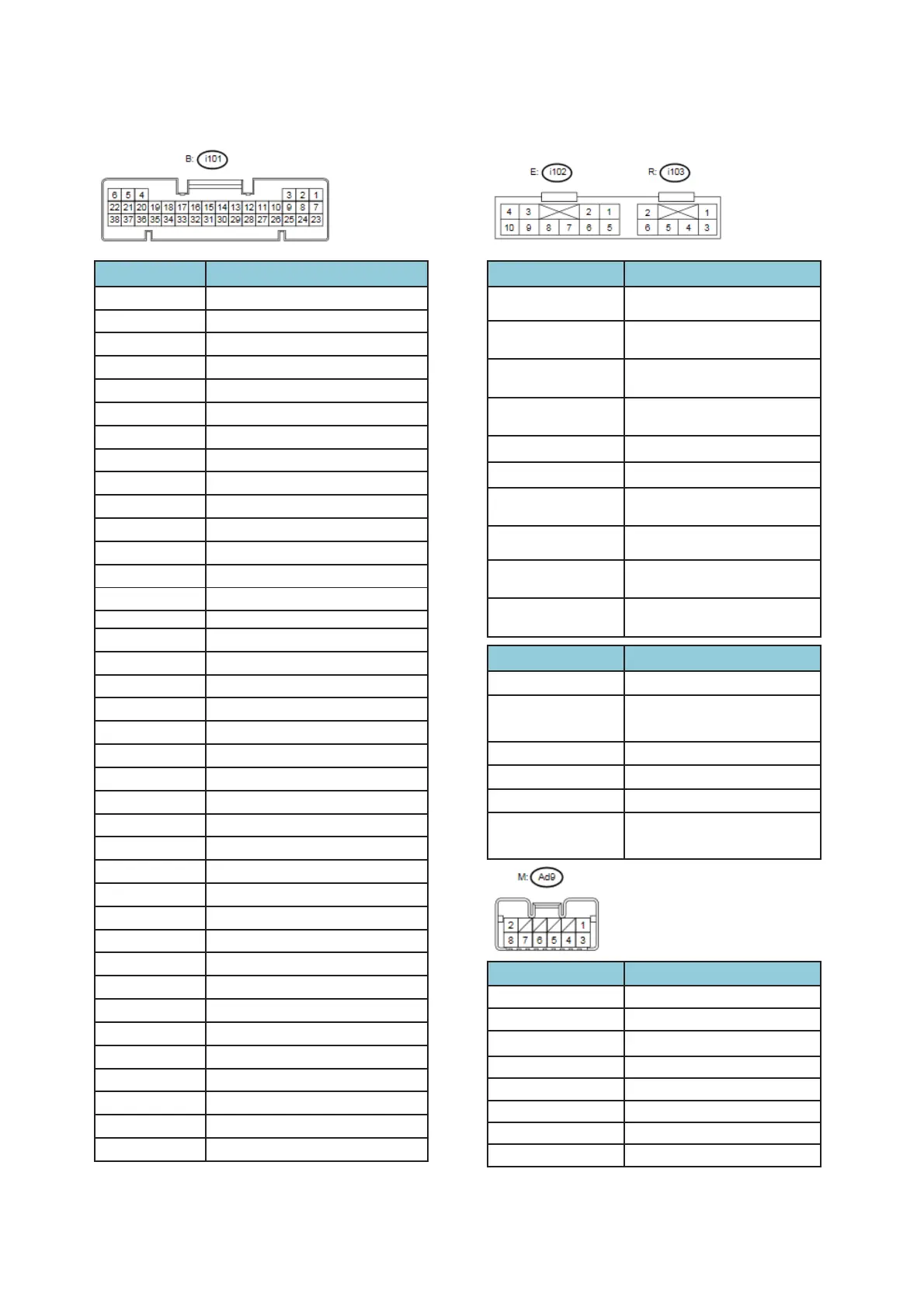

Terminal No. Contents
(i101) No. 1 —
(i101) No. 2 —
(i101) No. 3 —
(i101) No. 4 USB GND
(i101) No. 5 UART 2
(i101) No. 6 USB +B
(i101) No. 7 —
(i101) No. 8 REVERSE
(i101) No. 9 STEERING SWITCH1 (+)
(i101) No. 10 STEERING SWITCH2 (+)
(i101) No. 11 —
(i101) No. 12 STEERING SWITCH GND
(i101) No. 13 AMP MUTE
(i101) No. 14 CAN2 (H)
(i101) No. 15 CAN2 (L)
(i101) No. 16 MIC SLD
(i101) No. 17 MIC1 (+)
(i101) No. 18 MIC1 (о)
(i101) No. 19 MIC DET
(i101) No. 20 MIC2 (+)
(i101) No. 21 MIC2 (о)
(i101) No. 22 MIC power supply
(i101) No. 23 —
(i101) No. 24 —
(i101) No. 25 —
(i101) No. 26 GND ( Camera )
(i101) No. 27 6V+ ( Camera )
(i101) No. 28 CA+ ( Camera )
(i101) No. 29 CAо ( Camera )
(i101) No. 30 CAN1 (H)
(i101) No. 31 CAN1 (L)
(i101) No. 32 AUX GND
(i101) No. 33 Right AUX Input
(i101) No. 34 Left AUX Input
(i101) No. 35 Pin jack plugging detection
(i101) No. 36 —
(i101) No. 37 —
(i101) No. 38 DCM MUTE
Terminal No. Contents
(i103) No. 1 Right rear door speaker(+)
(i103) No. 2
Left rear door speaker(+) ,
or Interrupt audio (+)
(i103) No. 3 Right rear door speaker(о)
(i103) No. 4 SLD2
(i103) No. 5 ILL (о)
(i103) No. 6
Left rear door speaker(о) ,
or Interrupt audio (о)
Terminal No. Contents
(i102) No. 1 Right front door speaker (+)
(i102) No. 2 Left front door speaker (+)
(i102) No. 3
іїChassis GND
IGN
(i102) No. 4
іїChassis GND
Backup power supply
(i102) No. 5 Right front door speaker (о)
(i102) No. 6 Left Front door speaker (о)
(i102) No. 7
іїChassis GND
GND
(i102) No. 8 Antenna power supply
(i102) No. 9
іїChassis GND
BATT
(i102) No. 10 ILL(+)
Terminal No. Contents
(Ad9) No. 1
CID power supply
(Ad9) No. 2 CID GND
(Ad9) No. 3 CID IGN
(Ad9) No. 4 CID ILL (+)
(Ad9) No. 5 CID ILL(о)
(Ad9) No. 6 —
(Ad9) No. 7 —
(Ad9) No. 8 CID UART 2
