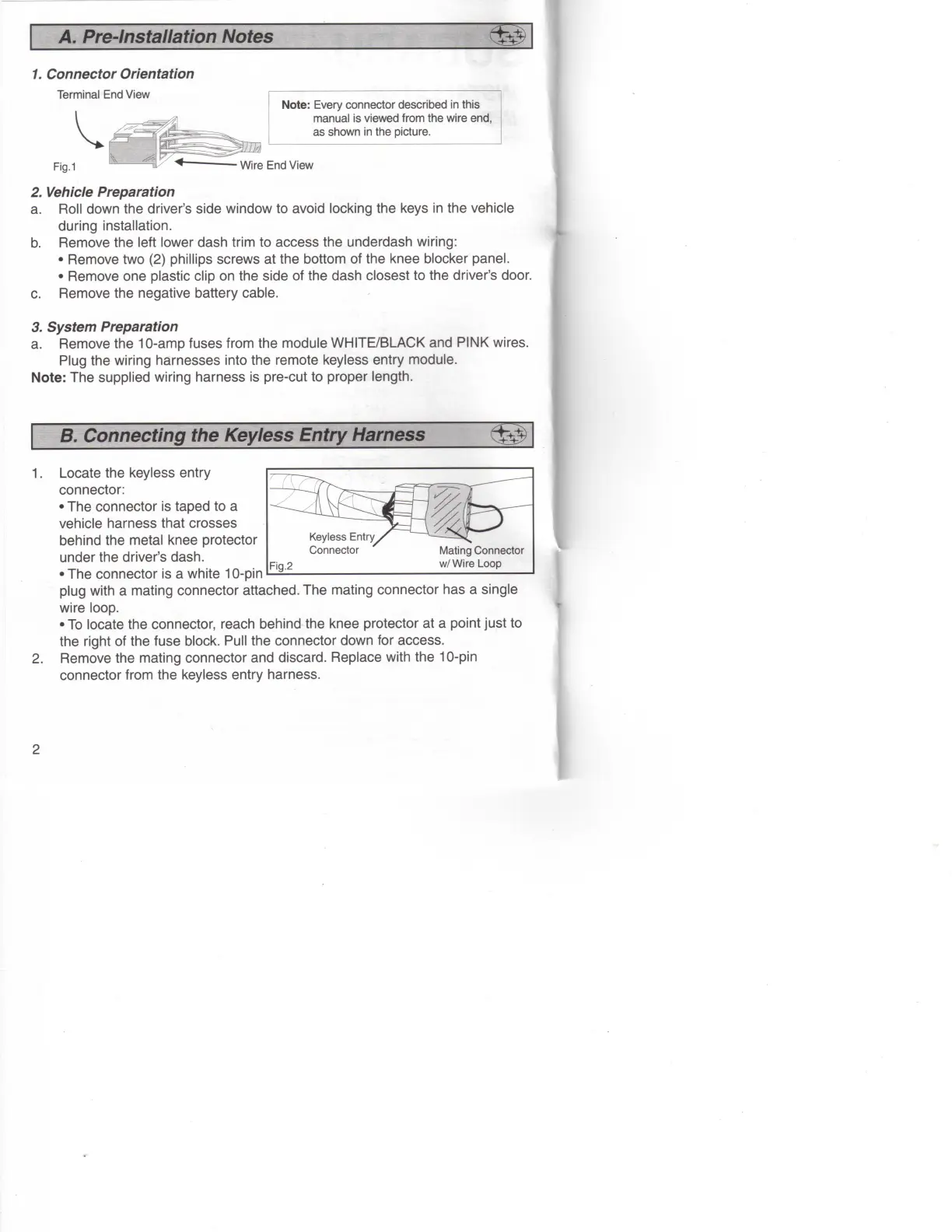

A. Pre-lnstallation Notes
1. Connector Orientation
Terminal End View
Note: Every connector described in this
manual is viewed from the wire end,
as shown in the picture.
b.
Wire End View
2. Vehicle Preparation
a. Roll down the driver's side window to avoid locking the keys in the vehicle
during installation.
Remove the left lower dash trim to access the underdash wiring:
• Remove two (2) phillips screws at the bottom of the knee blocker panel.
• Remove one plastic clip on the side of the dash closest to the driver's door,
c. Remove the negative battery cable.
3. System Preparation
a. Remove the 10-amp fuses from the module WHITE/BLACK and PINK wires.
Plug the wiring harnesses into the remote keyless entry module.
Note: The supplied wiring harness is pre-cut to proper length.
B. Connecting the Keyless Entry Harness
2.
Keyless Entry
Connector
Fig.2
Mating Connector
w/Wire Loop
Locate the keyless entry
connector:
• The connector is taped to a
vehicle harness that crosses
behind the metal knee protector
under the driver's dash.
•The connector is a white 10-pin
plug with a mating connector attached. The mating connector has a single
wire loop.
• To locate the connector, reach behind the knee protector at a point just to
the right of the fuse block. Pull the connector down for access.
Remove the mating connector and discard. Replace with the 10-pin
connector from the keyless entry harness.
