Subaru IMPREZA 2001 - Page 13

ABS-12
ABS (DIAGNOSTICS)
ELECTRICAL COMPONENTS LOCATION
4. Electrical Components Location
A: LOCATION

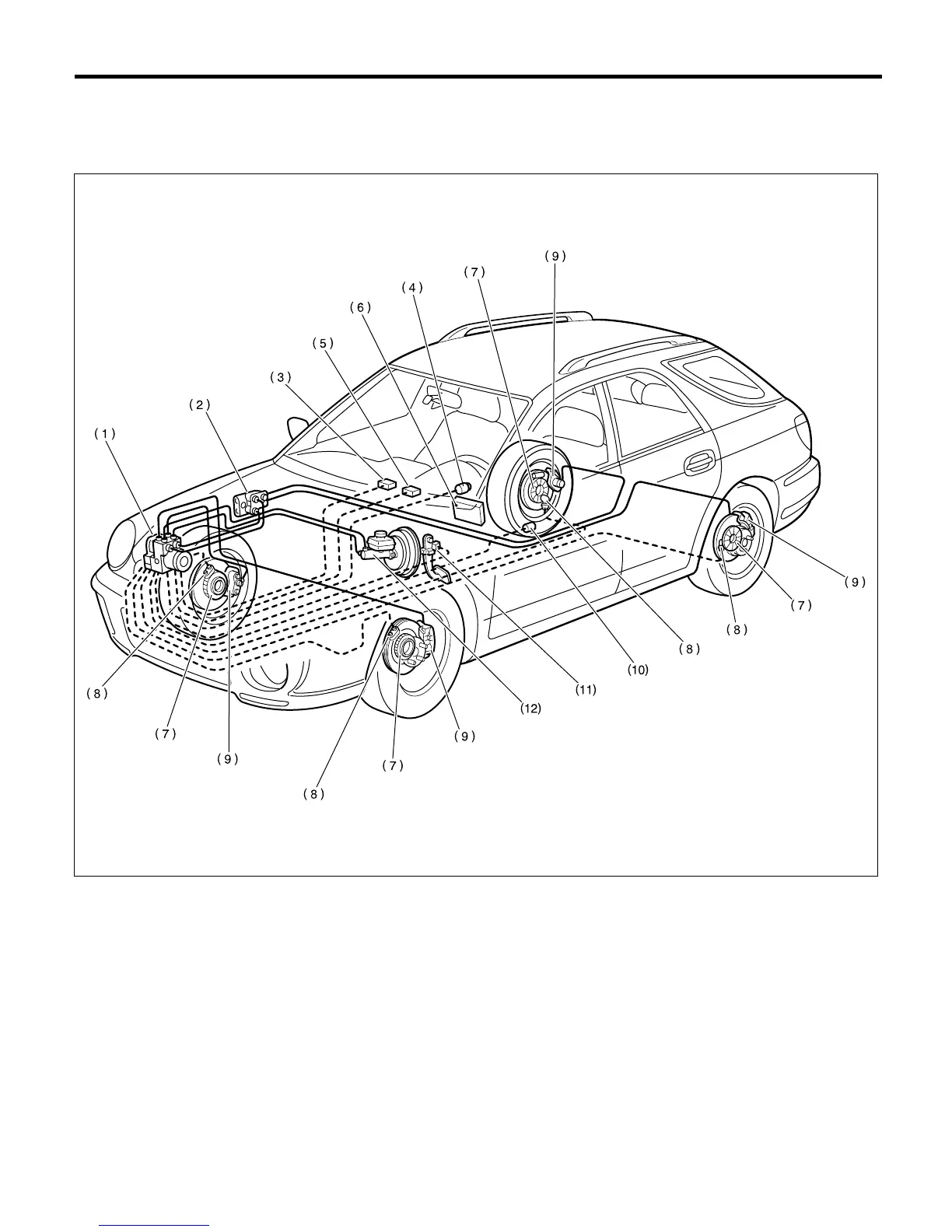

BR0031
(1) ABS control module and hydraulic
control unit (ABSCM&H/U)
(5) Data link connector (for Subaru
select monitor)
(8) ABS sensor
(9) Wheel cylinder
(2) Proportioning valve (6) Transmission control module (only
AT vehicle)
(10) G sensor
(3) Diagnosis connector (11) Stop light switch
(4) ABS warning light (7) Tone wheel (12) Master cylinder
