ABS-14
ABS (DIAGNOSTICS)
CONTROL MODULE I/O SIGNAL
5. Control Module I/O Signal
A: ELECTRICAL SPECIFICATION
NOTE:

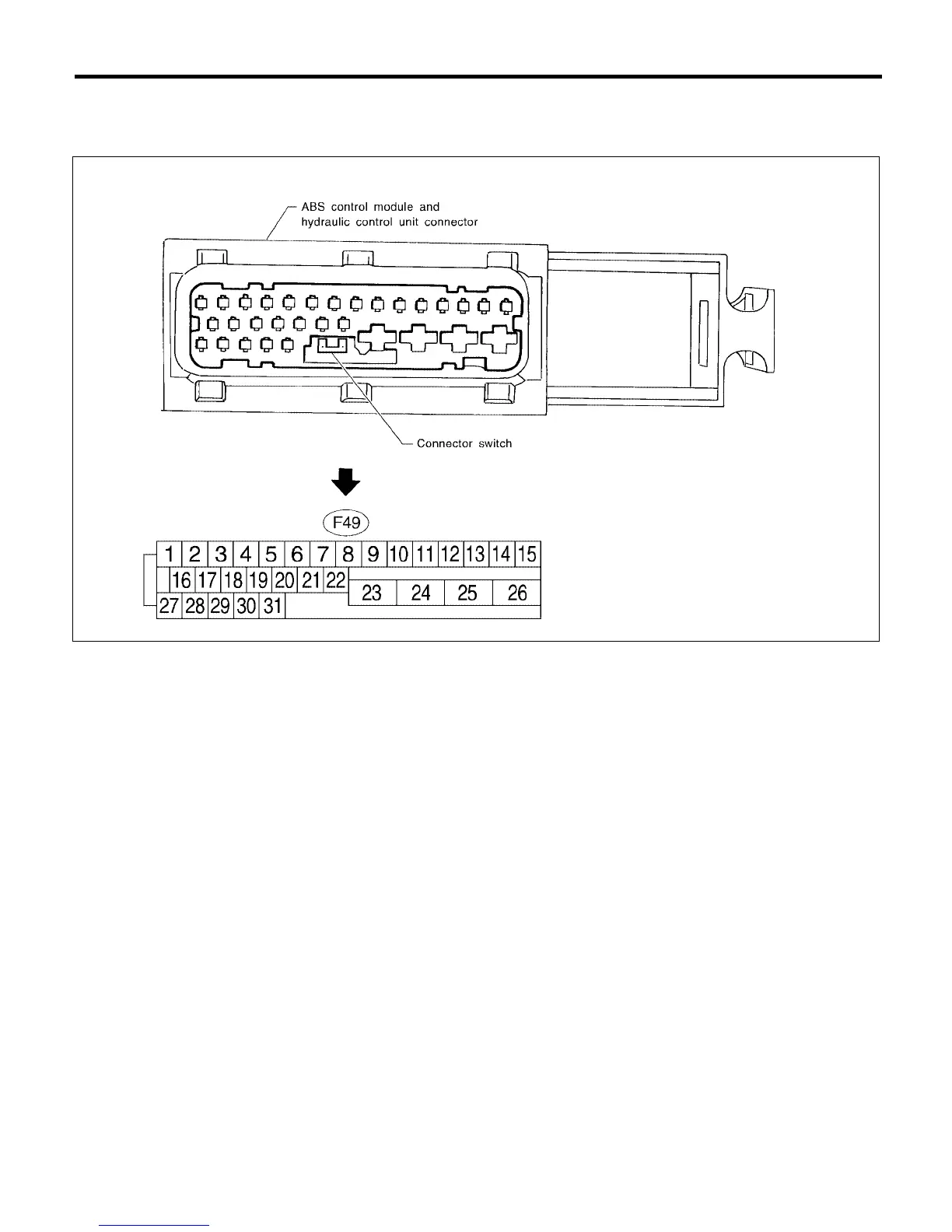

• The terminal numbers in the ABS control module and hydraulic control unit connector are as shown in the
figure.
• When the connector is removed from the ABSCM&H/U, the connector switch closes the circuit between
terminal No. 22 and No. 23. The ABS warning light illuminates.
B4M1228A
To Next Page
