Suburban SF-35F Service Manual

44

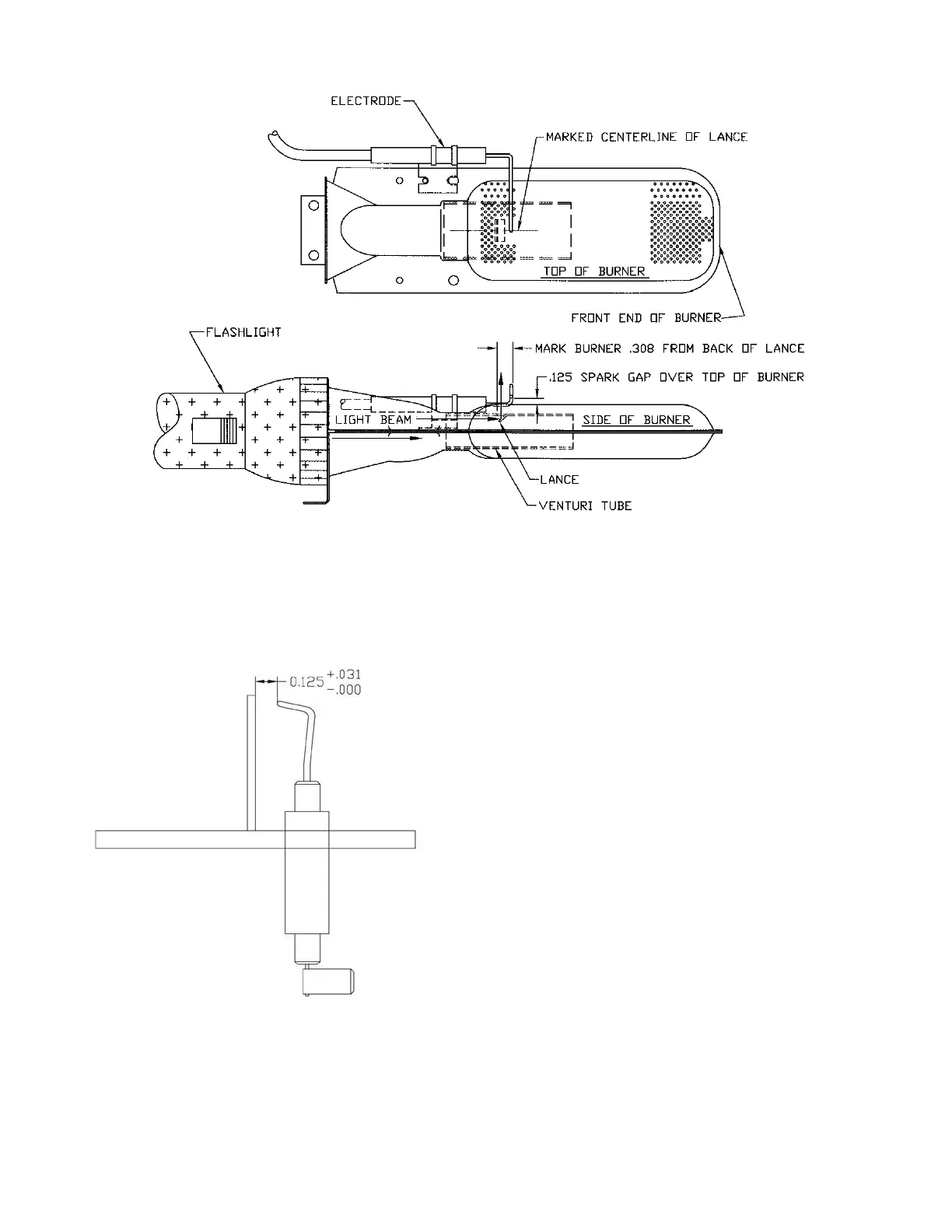

Figure 31
NT ELECTRODE GAP SPECIFICATIONS AND POSITIONING
To assure consistent ignition of the burner, it is important for the electrode to be positioned properly over the top of the burner. When
replacing the electrode, or should you be experiencing ignition type problems, the electrode should be positioned as outlined in the
drawing.
1. 1/8" spark gap between electrode and ground.
2. Maintain electrode position of 3/16" over burner ports.
Figure 32
LOCAL FLAME SENSE
PARK MODEL ELECTRODE GAP SPECIFICATIONS AND POSITIONING
To assure consistent ignition of the burner, it is important for the electrode to be positioned properly over the top of the burner. When
replacing the electrode, or should you be experiencing ignition type problems, the electrode should be positioned as outlined in the
drawing.
