2-9
7040127 - Revision C - May, 2015
Built-In (BI) Series
Built-In (BI) Series
(SWS #4250000)
(SWS #4250000)
Installation Information
Water Line Connections
Approximately 3' (914mm) of 1/4" plastic tubing is con-
nected to the unit with a preassembled 1/4" compres-
sion connection at the end. This tubing is located under
the unit.
The water line fitting connection kit, provided with the
unit, contains a 1/4" compression union fitting for con-
nection to the household water supply line. The com-
pression nut and sleeve should be placed on the water
line and fastened to the connection at the end of the
tubing under the unit. Do not over tighten. Check all
water line fittings for leaks. Make sure that the drain
pan can be installed and/or removed without any water
line interference.
IMPORTANT NOTE: The water line should be purged
prior to final connection to the unit. This will remove
any debris that may be present in the tubing from
installing the new water line.
IMPORTANT NOTE: If a reverse osmosis system
used, it is recommended that the water filter be
bypassed as mentioned earlier is this section.
IMPORTANT NOTE: The customer should be made
aware that the ice maker will not produce ice immedi-
ately, and that the first few batches of ice produced
should be discarded, allowing twenty-four (24) hours for
proper ice production.
IMPORTANT NOTE: Caution must be taken to not
expose the water lines leading to the refrigerator to
freezing temperatures. Failure to do so could cause
damage to the product and home.
Water Filtration System
The water filtration system of Sub-Zero built-in models
supplies filtered water to the ice maker and water dis-
penser (dispenser models) to produce great-tasting
water and ice.
NOTE: When using the water filtration system for the
first time and after filter replacement, it is necessary to
clear any air from the system and allow the filter to
assist in cleaning the water lines. For non-dispenser
models, discard the first two full containers of ice. For
dispenser models, dispense several glasses of water
for a period of two minutes.
If the water filtration system will not be utilized, it can be
placed in water filter bypass mode by removing the fil-
ter. The filter is rated for 750 gallons (2839 L) or one
year, whichever comes first. The indicator will illu-
minate and flash in the control panel display when the
filter needs to be replaced.
Water Filter Replacement

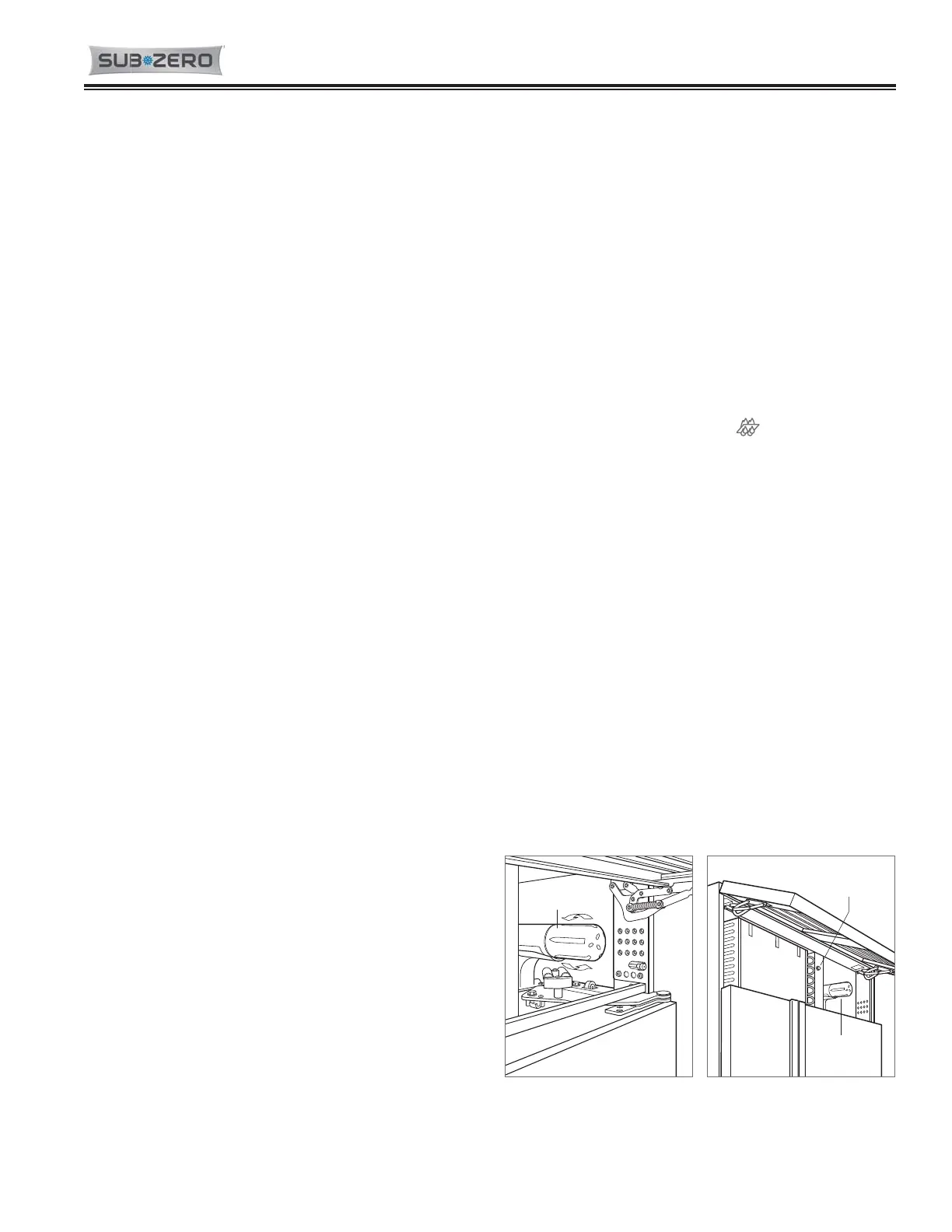

1. To access the water filter, pull out on the bottom
edge of the grille assembly and rotate upward.
2. To remove the old filter, rotate counterclockwise
onequarter turn, then pull out (See Figure 2-8). It is
normal for a small amount of water to drip when the
filter is removed. It should be wiped up with a paper
towel or cloth.
3. Remove the new filter from packaging and remove
plastic cap.
4. Insert the new filter into the manifold and turn clock-
wise.
5. Once the new filter has been installed, press and
hold the water filter reset button for five seconds to
reset (See Figure 2-9).
