ASSEMBLY
2

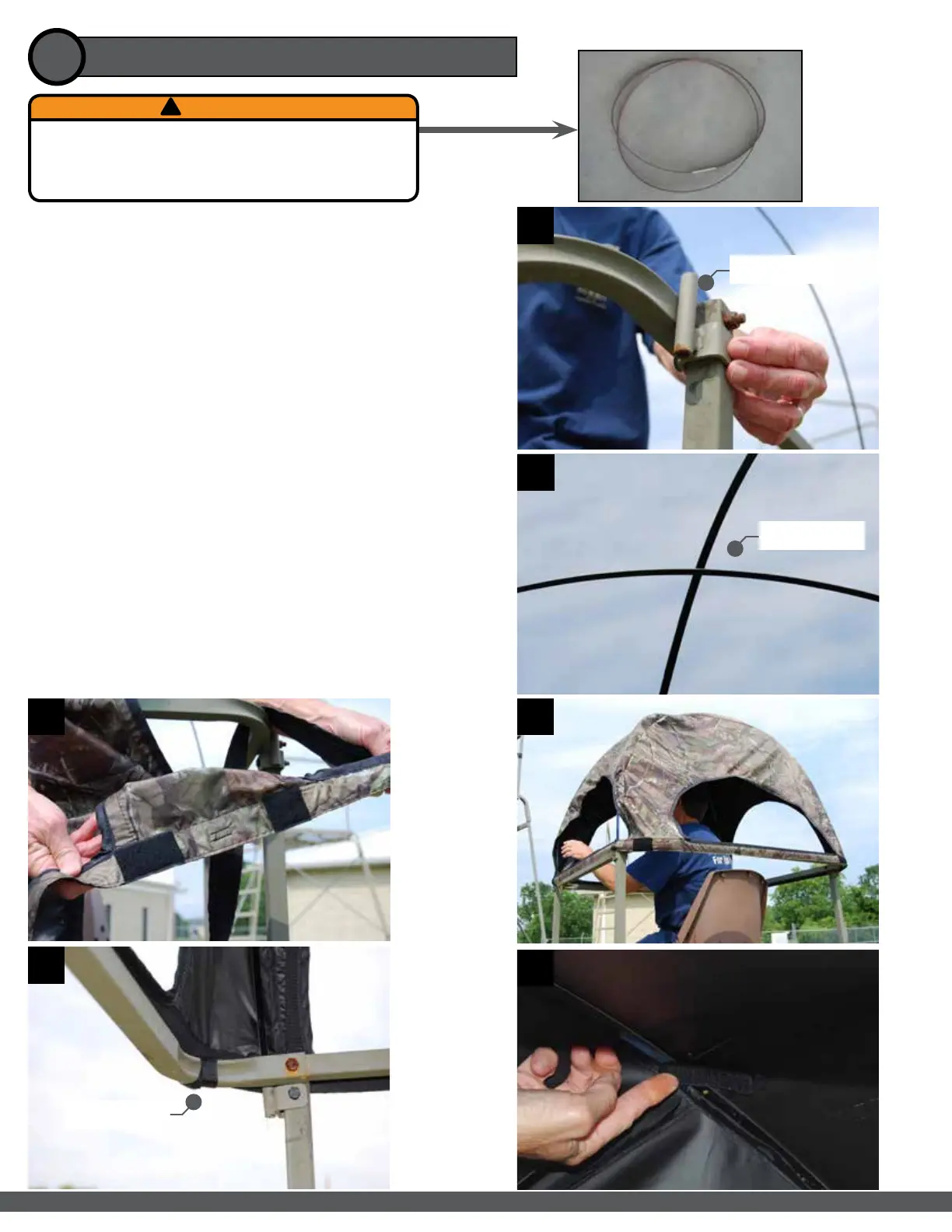

1. Attach the rod brackets to the outside of each corner of the
tripod frame as shown in figure 1. Secure with one nut and bolt.
2. Open the spring steel coils by sliding the ends out of the
retention clamp. Be careful, keep away from your face as the
ends of the coil will spring open as they are under tension. Make
sure any other persons are clear of the area before opening the
coil.
3. Put the ends of the spring steel in the rod bracket in opposite
corners forming an arc that crosses in the middle. See figure 2.
4. Stand on the platform facing out toward the ladder. Start
with the roof section of the blind first (the roof will have the
windows in it). Locate the two large pieces of Velcro on one
corner as shown in figure 3. Keep these on your left side as they
will need to be on the left corner of the tripod frame.
5. With the camo facing up, pull the roof up and over the spring
steel rods and line up the seams of the roof with the spring steel
frame as shown in figure 4. Rap the Velcro strips around the four
corners of the tripod frame to hold the roof in place as shown in
figure 5. Attach the Velcro strip at the center top the blind to the
cross section of the spring steel. See figure 6.
Rod Bracket
1
2
3 4
Spring Steel
5
Velcro Strap
6
WARNING
!
SPRING STEEL COILS ARE UNDER PRESSURE. OPEN WITH
EXTREME CAUTION. SPRING STEEL COILS WILL DEPLOY
AND UNCURL ONCE THE RETENTION CLAMPS HAVE BEEN
REMOVED WHICH MAY CAUSE SERIOUS INJURY. ENSURE
NO-ONE IS YOUR PROXIMITY WHEN OPENING.
