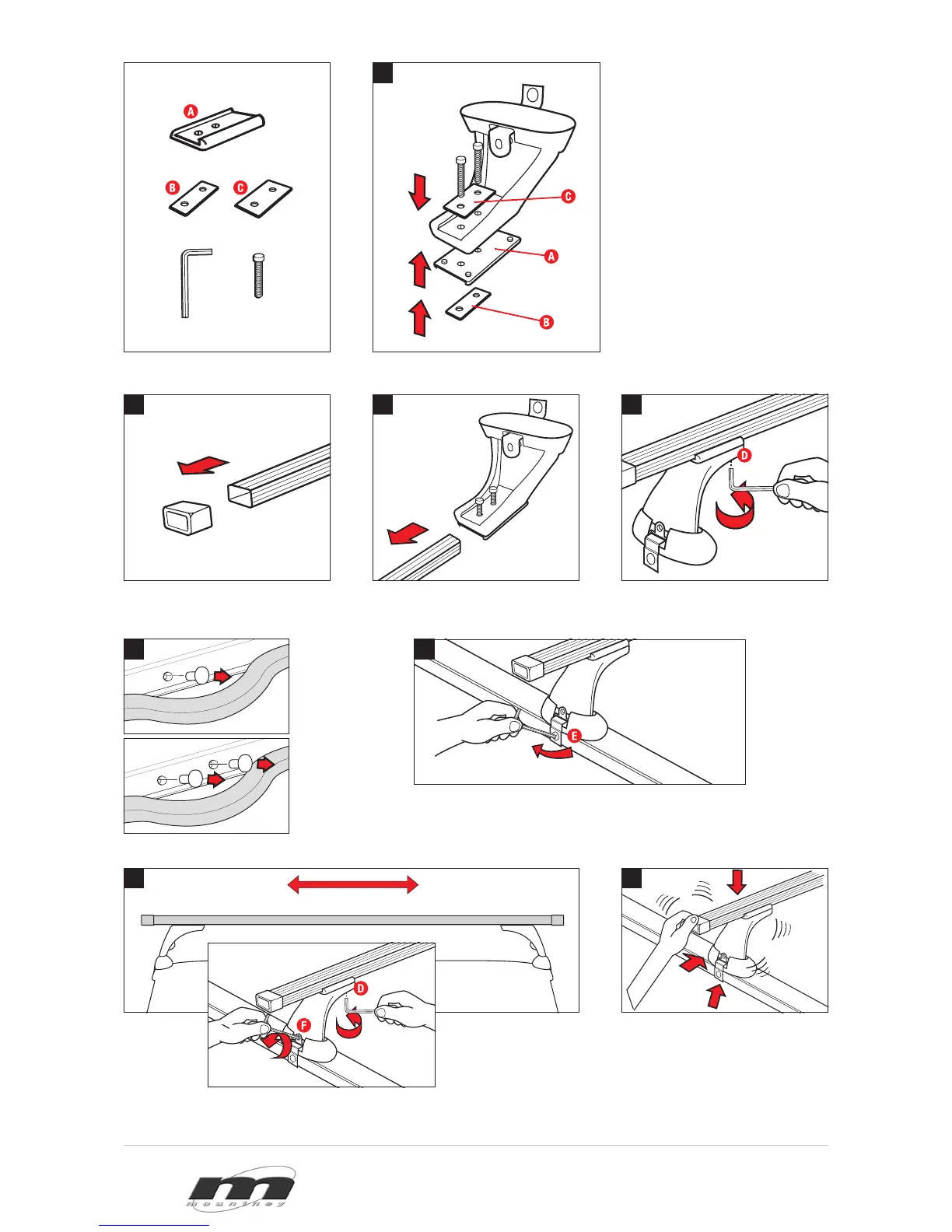

Open all vehicle
doors. Carefully pull
back rubber trim and
remove appropriate
bolt to expose fixation
point, retain bolt for
fixation of bar.
Where two mountings
are provided, attach to
the inner holes closest
to the door centre
posts.
5
Loosely assemble fitment pad A, and
plates B & C to foot assembly using bolts.
x4
x4 x4
x8
x1
Locate and attach bars to vehicle using bolt previously removed.
Tighten bolt E to 2.5Nm.
Carefully remove the end caps. Slide foot assemblies onto bars. Replace end caps.
Fix D using allen key loosely securing foot
assemblies to bars.
Centralise bar. Apply slight
pressure inwardly on foot.
Tighten bolt D using allen
key (5Nm). Fully tighten
bolt F ANTI-CLOCKWISE
(5Nm).
Check fitment is secure before using.
