If using an active balancer, you may use small hobby screws to secure it to the outer rail of the
bottom plate.

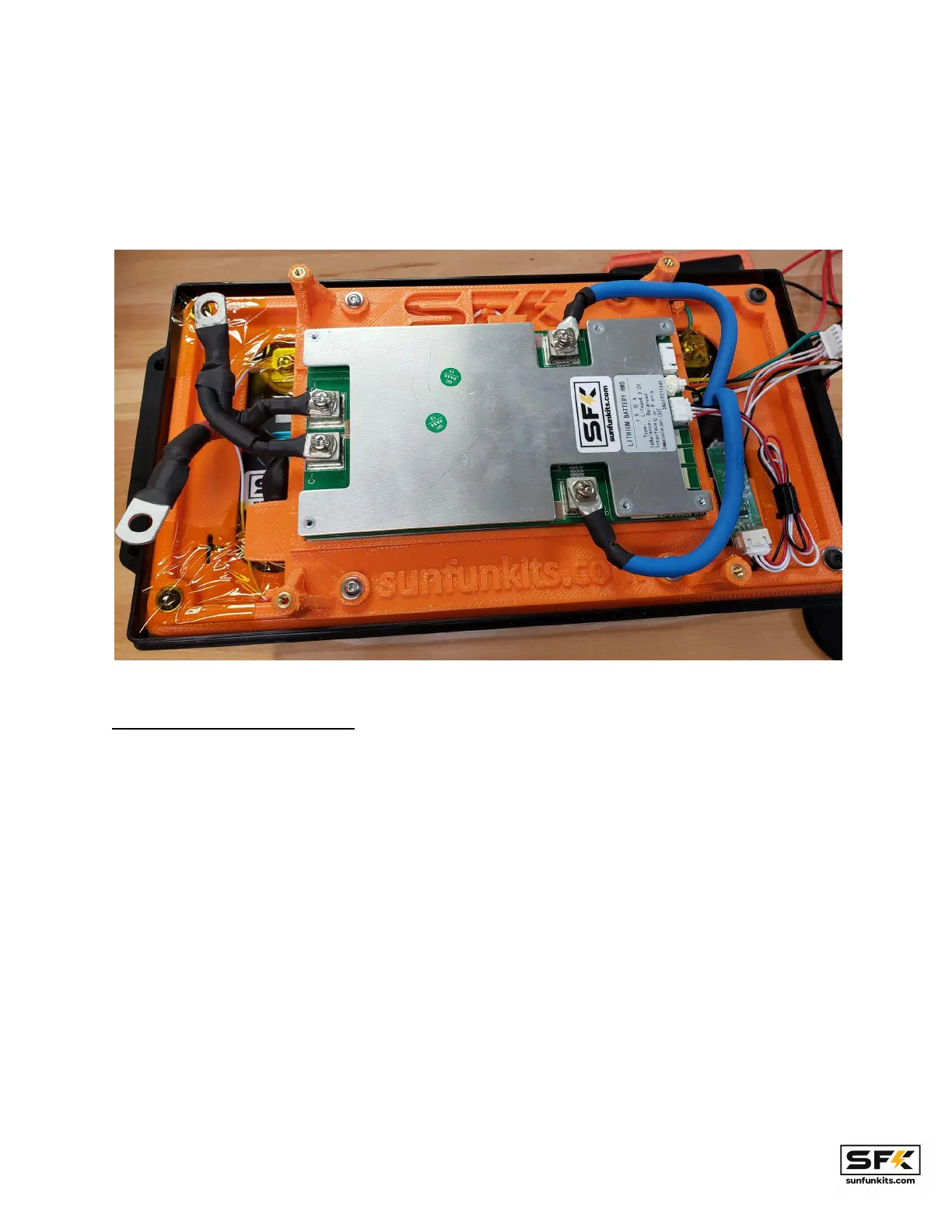

Finally, bend the negative & red terminals in place to prepare them for lid install. We recommend
keeping your balance wires out of the BMS for the time being and only inserting them once the
final bolts have been installed.
Attaching terminal bolts & lid:
The last step in completing your DIY battery is to attach the terminal bolts and lid. This process
begins with inserting the m8 bolts from inside your battery through the brass inserts in the lid.
YOU MUST ENSURE A TIGHT FIT DURING THIS PROCESS, THREAD LOCKER AND A
NUT DRIVER ARE REQUIRED TO MAKE SURE THE TERMINAL WIRES ARE NOT LOOSE.
LOOSE TERMINALS WILL DESTROY YOUR BATTERY!
Page: 15 V1 / V2 Manual - Revision 1.01
