Issue: 22.09.2005
Subject to alterations due to technical improvements.

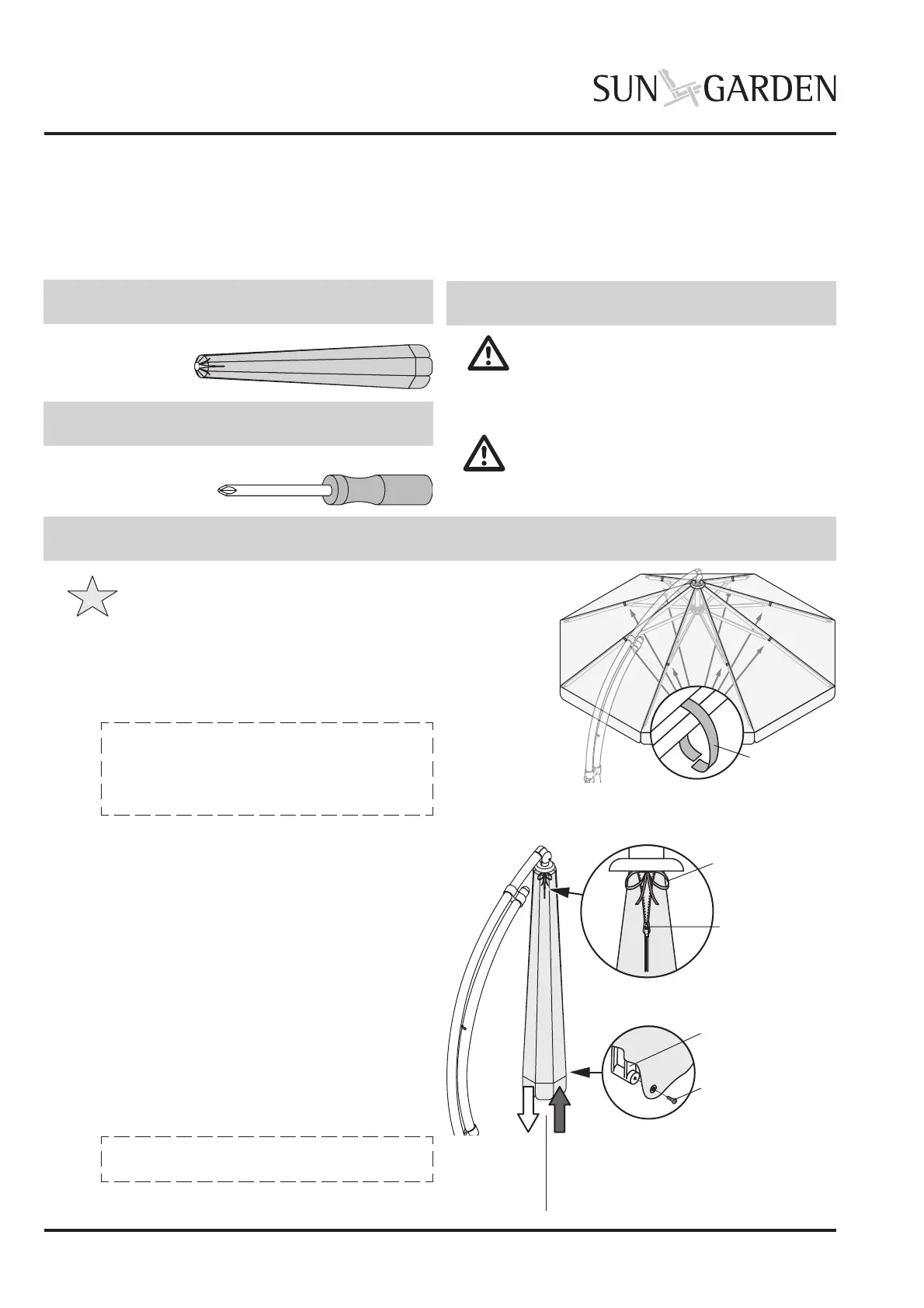

ASSEMBLY INSTRUCTIONS:
SUNSHADE FRAME SEAT
*
*
Included in delivery
Tools required
Safety note
These assembly instructions are intended only for
persons with experience of using the tools required.
Please read the instructions carefully through before
working.
Damages caused by non-observance of the instructions
are excluded from any liability and guarantee.
Caution: Risk of trapping!
There is increased risk of trapping at all
sunshade frame joints.
• Bear these hazard locations in mind
while working.
• one sunshade cover
The assembly instructions describe
replacing the
• Sunshade cover
in the Easy Sun
PARASOL sunshade.
❏ Phillips screwdriver No. 2
Caution: Danger of accident!
• Only stand stepladders on solid ground.
Get a second person to hold the
stepladder two prevent accidents.
➭ Remove all screws in the sunshade cover
bottom fixing with a Phillips screwdriver.
➭ Open zip and closing tape in top cover fixing.
➭ Remove cover downwards from sunshade
frame.
➭ Open the sunshade about half-way.
➭ Release all material velcro bands on the
sunshade frame from the inside.
➭ Close the sunshade.
Assembly
Note
Before replacing the sunshade cover,
ensure the sunshade is placed in its
stand.
You need a stepladder to replace the
sunshade cover.
1.0 Removing sunshade cover
➭ Push the sunshade cover from below onto
the sunshade frame.
➭ Close the tie strip and zip on the top cover
fixing.
➭ Screw in all screws on the bottom cover fixing.
➭ Open the sunshade about halfway and
fix all Velcro bands to the sunshade frame.
2.0 Pulling on the sunshade cover
* Not required for PARASOL JUNIOR.
pull onto
sunshade
frame
Closing tape
Zip
Top cover fixing
Bottom cover fixing
Fixing screw
Bracket for
sunshade cover
pull off
sunshade
frame
Velcro band
