Know Your Electric Log Splitter

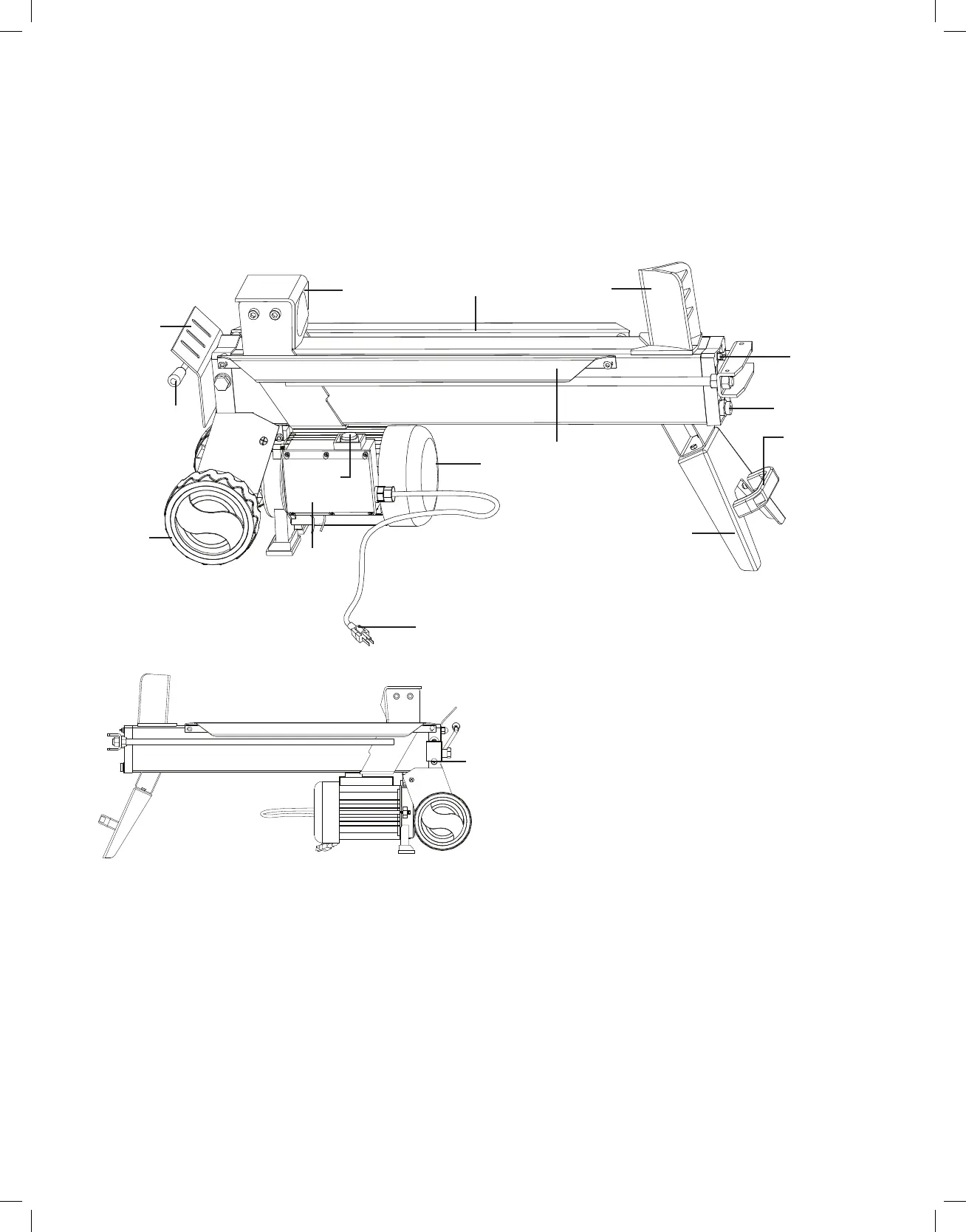

Read the owner’s manual and safety instructions carefully before operating the log splitter. Compare the illustration below
to the log splitter in order to become familiar with the location of the various controls and adjustments. Save this manual for
future reference.
5
1. Log pusher
2. Log rail
3. Splitting wedge
4. Bleed screw
5. Oil drain bolt
6. Lifting handle
7. Supporting leg
8. Log retaining plates
9. Motor
10. Appliance cord
11. On/O switch
12. Switch box
13. Rear wheels
14. Hydraulic control lever
15 Control lever guard
16. Max. pressure limit screw
7
8
9
10
11
12
13
14
Technical Data
Rated Voltage 120 V AC 60 Hz 1500 W
Splitting Force (Max) 5 ton
Ram Force/ 5 ton
Continuous Force
Material Steel
Log Length (Max) 20.5 in. (52 cm)
Log Diameter (Max) 10 in. (25.4 cm)
Wedge 5 in. (12.8 cm)
Beam 5.5 in. (14 cm)
Hydraulic Cylinder Size 29.7 in. x 2.3 in.
(Length x Diameter) (75.5 cm x 5.9 cm)
Hydraulic Rod Size 30.2 in. x 1.2 in.
(Length x Diameter) (76.8 cm x 3 cm)
Hydraulic Capacity 1.1 gal (4.2 l)
Wheel Size 6 in. (15.2 cm)
Weight 92.6 lbs (42 kg)
