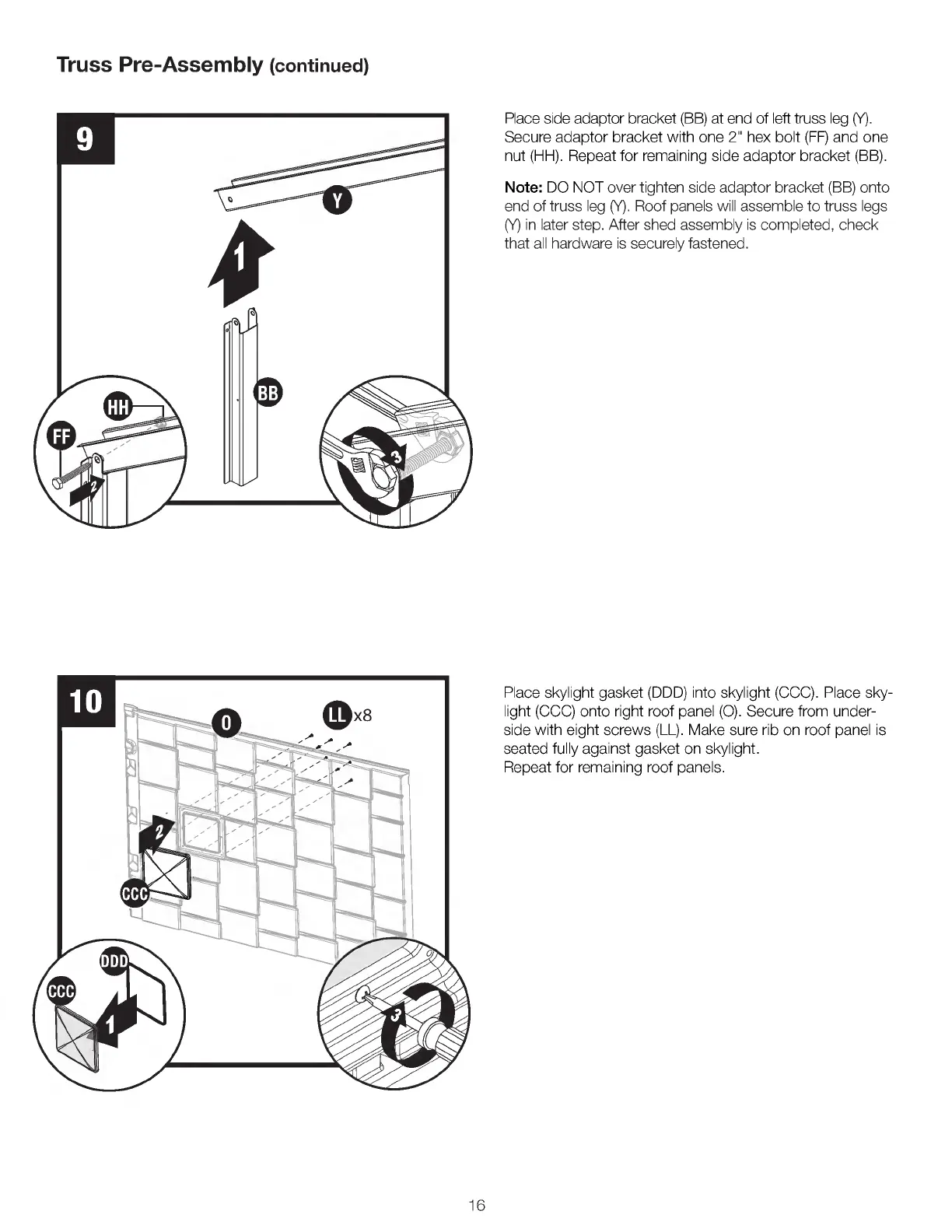

Truss Pre- Assembly ( continued)
Place side adaptor bracket ( BB) at end of left truss leg ( Y).
Secure adaptor bracket with one 2" hex bolt ( FF) and one
nut ( HH). Repeat for remaining side adaptor bracket ( BB).
Note: DO NOT over tighten side adaptor bracket ( BB) onto
end of truss leg ( Y). Roof panels will assemble to truss legs
(Y) in later step. After shed assembly is completed, check
that all hardware is securely fastened.
Place skylight gasket ( DDD) into skylight ( CCC). Place sky-
light ( CCC) onto right roof panel ( 0). Secure from under-
side with eight screws ( LL). Make sure rib on roof panel is
seated fully against gasket on skylight.
Repeat for remaining roof panels.
16
