Sundaya Apple - Page 8

Apple
General
Product name : Apple
Product description : 12VDC Battery Charge Regulator
Operating Temperature : -10°C to +55°C
Storage Temperature : -40°C to +85°C
Standard Available Types : Apple 5 Apple 10 Apple 15 Apple 20
Available Current Output/Input Model : 5 Ampere 10 Ampere 15 Ampere 20 Ampere
Electrical:
Nominal operating Voltage : 12VDC
Self consumption : 4 mA
Low Voltage Buzzer Warning Level : 11.70 V +/- 0.10 V
Low Voltage disconnect : 11.60 V +/- 0.10 V
Load Reconnect level : 12.60 V +/- 0.20 V
Boost Charge Level @25
0
c : 14.5V +/- 0.10 V (with Temperature compensation 0.02V/ deg c)
PWM float Charge level : 14.0V +/- 0.10 V (with Temperature compensation 0.02V/ deg c)
Level Indicator
Power consumption (on/off) : 0.1 A (max) / 0 A
Battery low Condition (0%) : 11.6 +/- 0.05 V
Battery Full Condition (100%) : 12.60 V +/- 0.10 V
Indicator for Battery State of Charge : (0 - 100%) LED bar (8 steps) with push button switch
Other indicators : - Indicator for Charging mode condition
- Indicator for Master Switch Off , Short/Overload condition
- Indicator for battery cut-off condition
Mechanical
Wiring & Terminals : 8mm width Input terminal for battery (bottom side)
8mm width Input terminal for solar panel (top side)
8mm width Output terminal for Load (top side)
Enclosure Materials : Fireretardant ABS / UV stabilized
Enclosure Color : Light Green
Connector material : Brass / Nickel plated
Product dimensions (HxDia) : 40mm x 120mm
Nett product weight : 0.20 kg

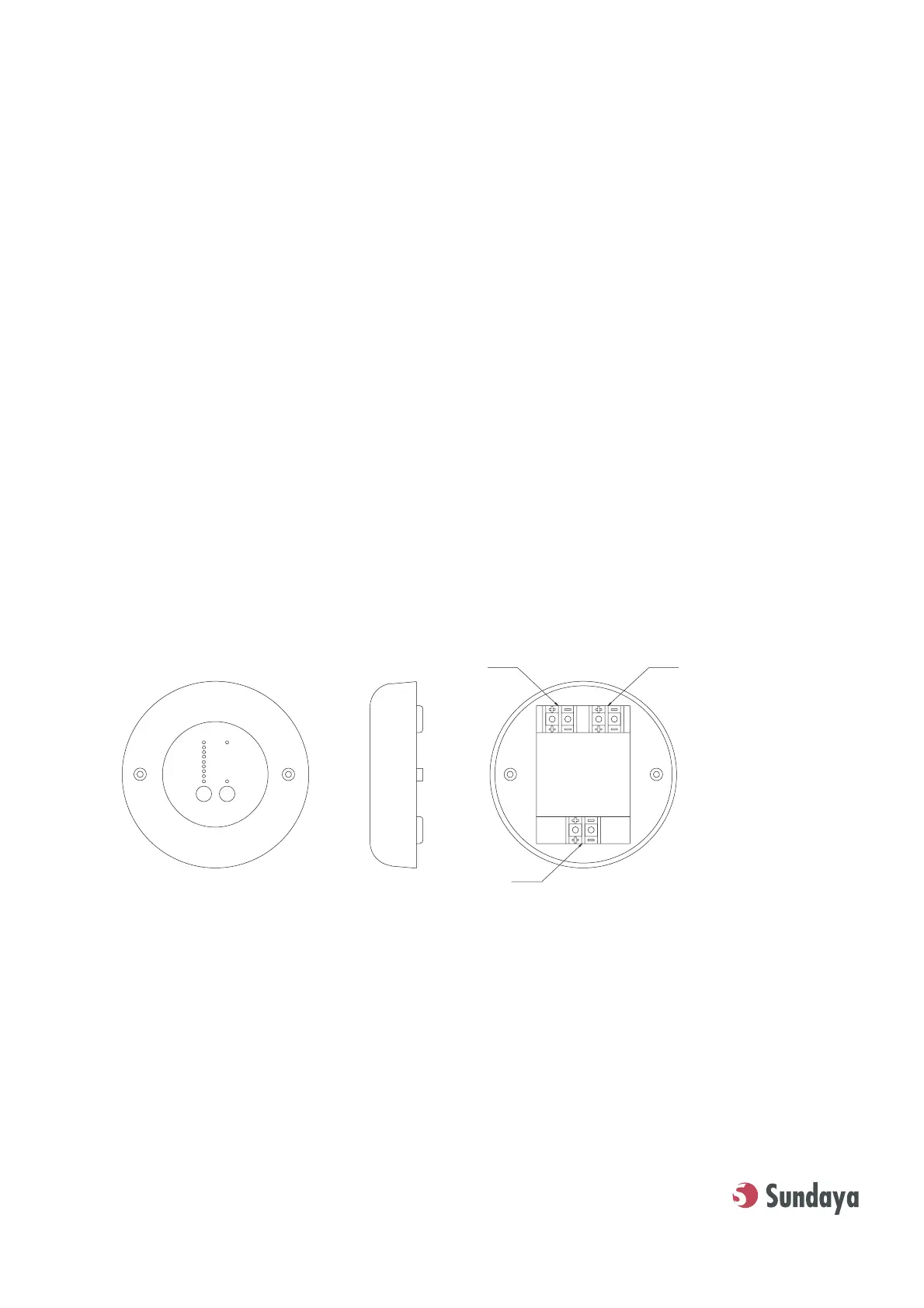

Mechanical Product Drawing
Protection and Sertifications
Reverse Polarity Protection : Yes
Short Circuit Protection : Yes
Over Load Protection : Yes
Surge Protection : Yes
Enclosure protection class : IP 42
CE Compliance : Yes
C-Tick Compliance : Yes
SNI Compliance : Yes
Packing Details
Standard packaging : 1 pcs.
Packing Dimensions (LxWxH) : 156
x 130 x 40 mm
Volume / Pcs. per m3 : 0.00095 m3 / 1050pcs. per m3
Specifications sheet
Because of continuous research and development of our products the information
and specifications in this data sheet are subject to change without prior notice.
Full
cut-off
Charging
FRONT VIEW SIDE VIEW BOTTOM VIEW
Battery
Solar Panel Input Load
# Sundaya
3/4
1/2
1/4
Master Switch Off
Short / Overload
On / Off
Display
