REF. PART
NO. NO. DESCRIPTION QTY.
1 RS4360601 Motor Housing 1
2 RS4360602 Pin (4 x 23.8) 1
3 RS4360603 Air Inlet 1
4 RS4360604 Trigger 1
5 RS4360605 Valve Stem 1
6 Valve Bushing (Incl. w/ #12) 1
7 RS4360607 O-Ring (19.8 x 2.4) 2
8 RS4360608 Valve Spring 1
9 RS4360609 O-Ring (7.5 x 3.5) 1
10 RS21158 Spring Pin (4 x 28) 2
11 RS4360611 Gasket 1
12 RS4360612 Rear Cover (Incl. #6 & 46) 1
13 RS900046 Ball Bearing (6003Z) 1
14 RS4360614 Rear End Plate 1
15 RS4360615 Rotor 1
16 RS4360616 Rotor Blade (pack of 6) 1
17 RS4360617 Spring Pin (4 x 10) 3
18 RS4360618 Cylinder 1
19 RS4360619 Front End Plate 1
20 RS76822 Ball Bearing (R14) 1
21 RS4360621 Air Regulator 1
22 RS4360622 O-Ring (16.8 x 2.4) 1
23 RS433523 Spring 1
24 RS433524 Pin 1
25 Anvil Bushing (Incl. w/ #28) 1
REF. PART
NO. NO. DESCRIPTION QTY.
27 RS4360627 Internal Ring (RTW-22) 1
28 RS4360628 Hammer Case (Incl. #25) 1
29 RS4360629 Gasket 1
30 RS4360630 Screw (M6 x 25) 8
32 RS4360632 Washer 1
33 RS4360633 Hammer Cage 1
34 RS4360634 Hammer 2
35 RS4360635 Hammer Pin 2
36 RS4360636 Anvil (6") (Incl. #37 & 38) 1
37 RS4360637 O-Ring (17.8 x 2.4) 1
38 RS4360638 Retainer Ring 1
39 RS21122 Spring Pin (3 x 8) 1
40 RS4360640 Dead Handle 1
41 RS4360641 Screw (M6 x 20) 1
44 RS4360644 Screw 1
46 Bushing (Incl. w/ #12) 1
47 RS4360647 Net 1
48 RS4360648 Screen 1
49 RS4360649 Rubber Ring 1
50 RS4360650 Rubber Ring 1
51 RS4360651 Hex Key Wrench 1
Also available: RS43606TK tune-up kit, including item # 7 (2),
9, 11, 16 (6), 22, 29, 37, 38 & 47

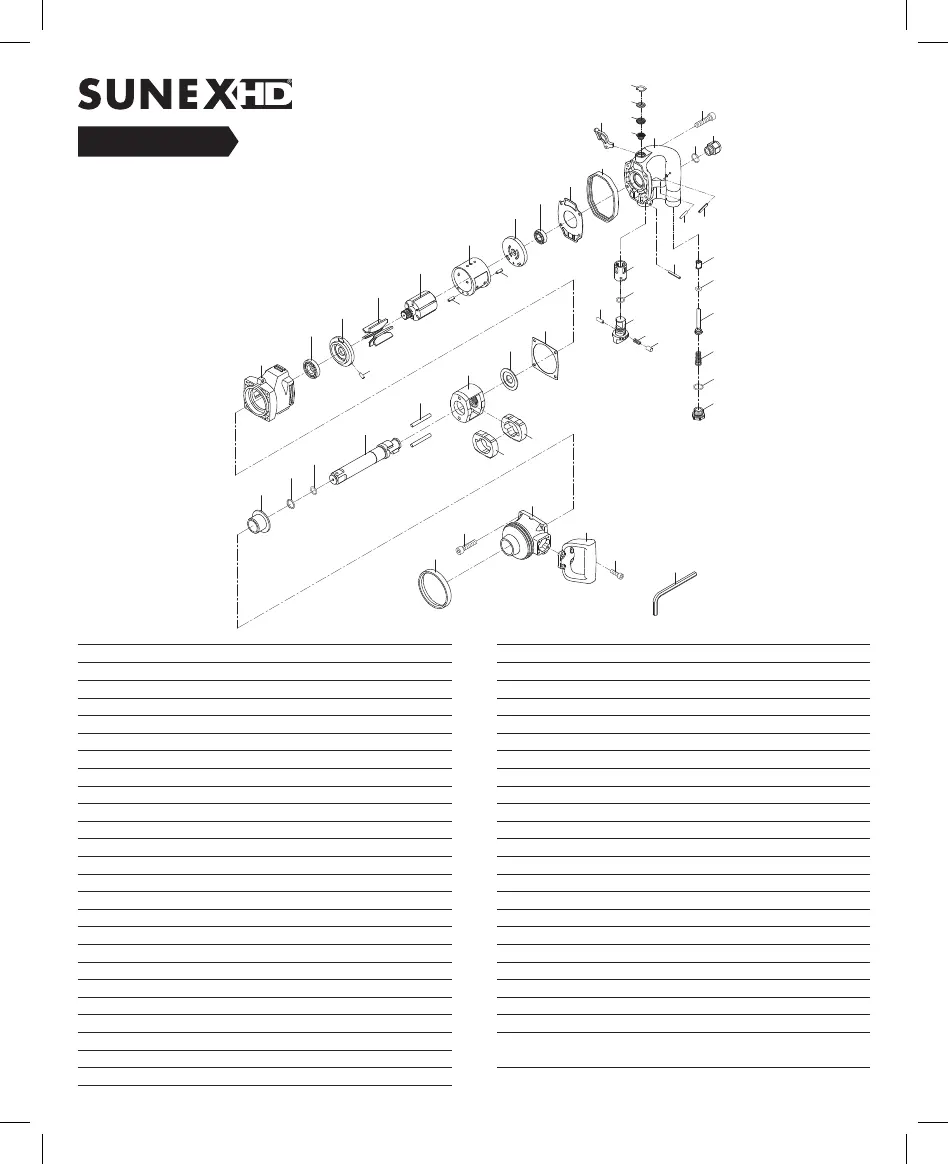

1" DRIVE LIGHTWEIGHT
SUPER DUTY IMPACT
WRENCH WITH 6" EXT.
SX4360-6
1
20
19
17
17
17
16
15
18
14
13
11
50
4
27
12
30
3
2
6
22
21
23
39
29
32
34
34
30
49
28
40
41
51
33
35
36
37
38
25
24
10
10
46
9
5
8
7
44
7
47
52
48
SX4360-6: Parts Breakdown & Operating Manual 4 02/03/12
