Rear
Cover
Black wire
to negative
(-) lead
10A FUSE
Sealed lead
acid rechargeable
battery
Red wire
to positive
(+) lead
Front cover
Spotlight cover
Screws x 2
Lens
Rubber ring
Reflector
H4 Bulb
Bulb
guarding
wire
Wire
Terminal x3
WARNINGS
- Lens of the halogen spotlight is very hot during operation.
- Never block lens and reflector during operation.
- Do not shine directly into eyes.
- To reduce the risk of electric shock, unplug the unit and allow to cool before attempting any
cleaning and replacement.
- Risk of uncoverable damage, replace the bulb and battery with same rating only.

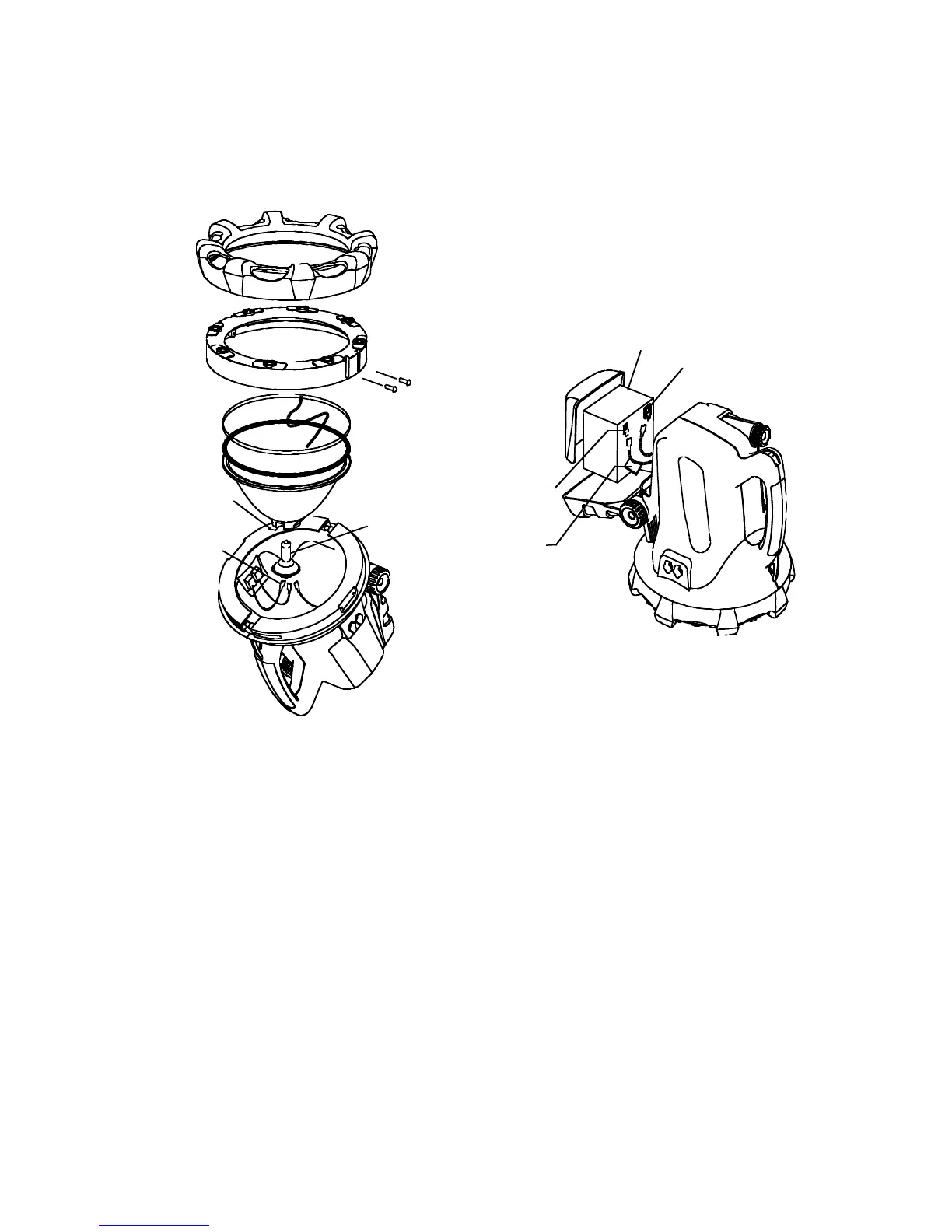

Bulb replacement
1. Take out the front cover.
2. Unscrew and remove the spotlight cover.
3. Remove carefully the lens and the rubber ring, then, take out the reflector.
4. Release the bulb guarding wires and replace the bulb with a new one.
5. Re-assemble the guarding wires, put back the reflector, rubber ring and the lens.
6. Secure the spotlight cover by screws and put back the front cover.
Battery replacement
1. Unscrew and release the rear cover.
2. Remove the rear cover and pull out the battery.
3. Disconnect the terminals and replace the battery with a new one.
4. Put back the battery and secure the rear cover.
Note: The female connector must be connected to the lead of the battery correctly, red wire to positive (+) lead
and black wire to negative (-) lead. REVERSE POLARITY WILL DAMAGE THE UNIT.
Important
Never leave battery discharged, recharge battery immediately after discharging. Recharge battery every
3 months even the unit is not used.
Direct use with 12V DC car plug adaptor
Plug the included car plug adaptor into the cigarette lighter socket on your car (truck or boat),
insert the adaptor plug into the lower DC jack of the lantern. Press the switches when using.
Fuse rating inside the car plug adaptor: 10A 125V/250V
To replace the fuse
1. Unscrew the top cover.
2. Pour out the fuse inside and replace a new one.
3. Screw back the top cover to secure.
