A. TECHNICAL DATA
1. The electric jack is used for a car whose total weight is belo w 2,000 Kgs.
2. Insert the plug of the electric jack into the car lighter jack. Voltage is DC 13.5V ±1V.
3. Ma ximum electric current is 10A, (by a 10A fuse).
4. Jacking height is 22 cm, ranging from 12 cm to 35 cm.
5. The weight of the electric jack is 4.10 Kgs.
6. Rated loading weight is 800Kgs, w ith a maximum of 1000Kgs.

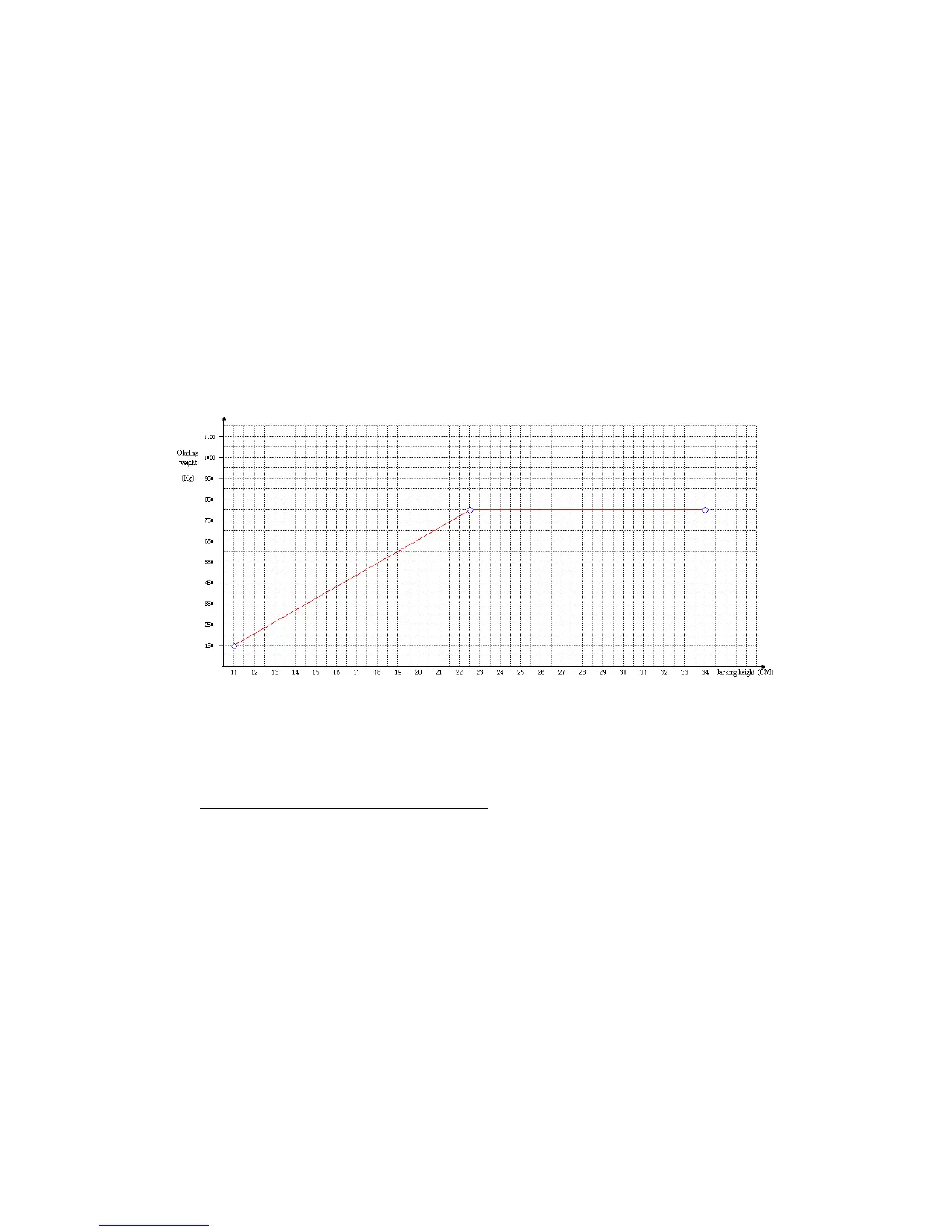

7. Please see the belo w graph for the weight loaded by the electric jack.
Graph for the weight
B. OPERATION INSTRUCTIONS
1. Park the car on smooth and solid ground.
2. Insert the plug of the electric jack into the car lighter jack.
3. Start the engine of the Car --- Very important.
4. The saddle of the electric jack should be placed against the right bottom of the car and
the electric jack should be put on smooth and solid ground.
5. Press “UP” on the s witchboard and confirm that the saddle is connected with the right
bottom position of the car. Press “UP” continuously till the car is jacked to an ideal height.
6. Press “DOWN” on the sw itchboard to lo wer the car completely after repairing.
7. Press “DOWN” on the s witchboard to adjust the position of the electric jack when the
saddle is not touched on the right bottom position of the car.
WARNING:
Do not move the car while the electric jack is working.
The follo wing points are important for your safety:
