Sungrow AC011E-01 User Manual

16

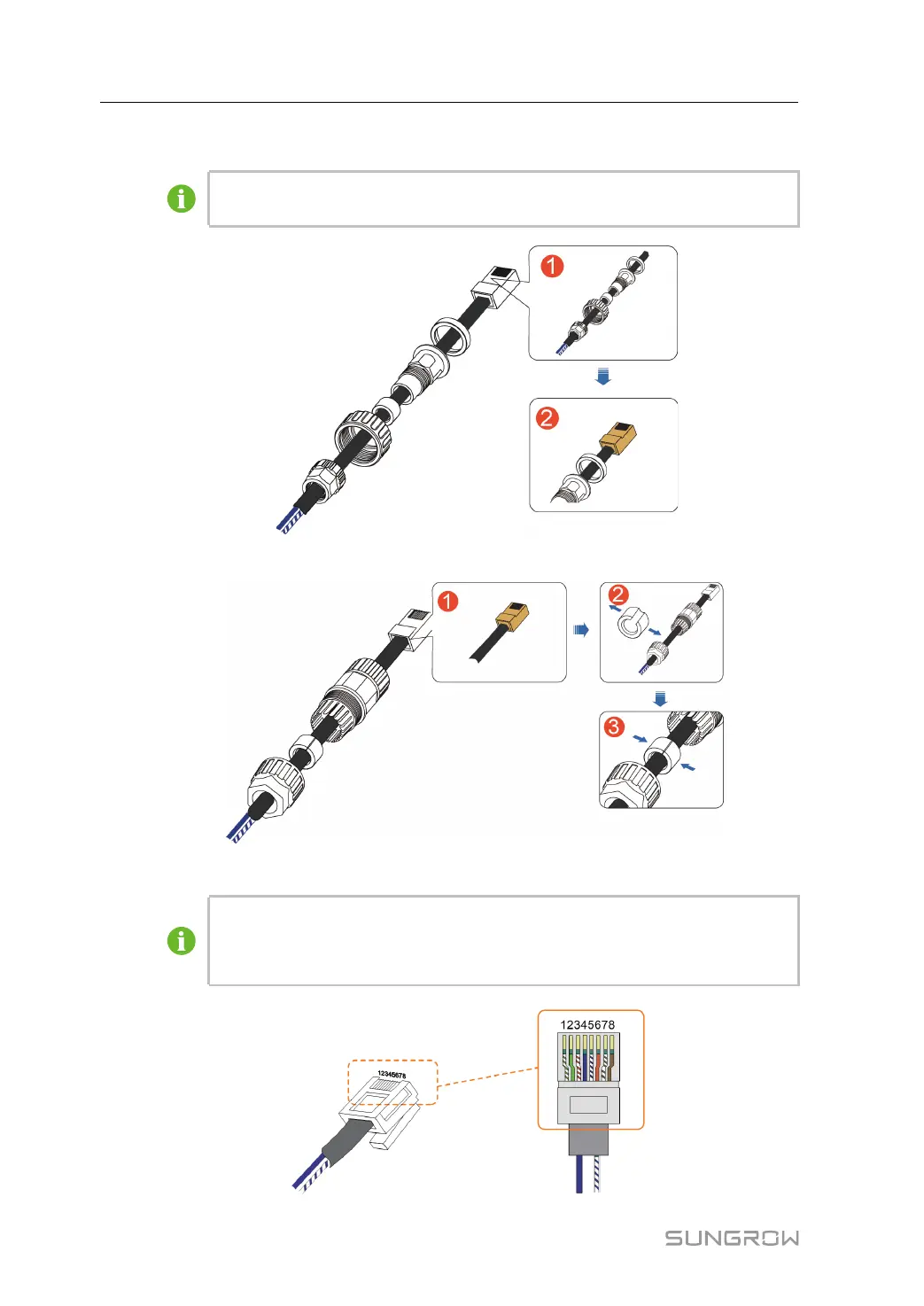

Step 1 Crimp both ends of the Ethernet cable using a crimping tool.
You will receive one of the following two RJ45 terminal components, please refer
to the actual product you receive.
figure 2-2 RJ45 screw connector(A)
figure 2-3 RJ45 screw connector(B)
Ensure that the blue wire and the blue-white wire is correctly crimped.
The blue wire (PIN 4) connects to 485B, and the blue-white wire (PIN 5) connects
to 485A.
2 Installation User Manual

Sungrow AC011E-01 Specifications

General

Model	AC011E-01
Category	Battery Charger
Output Power	11 kW
Frequency	50/60 Hz
Operating Temperature	-25°C to +60°C
Protection	Overvoltage, Overcurrent, Short Circuit, Over Temperature
Communication	RS485/CAN
