Cool air Hot air
≥800mm/31.5in≥600mm/23.6in
≥450mm/17.7in
Ground

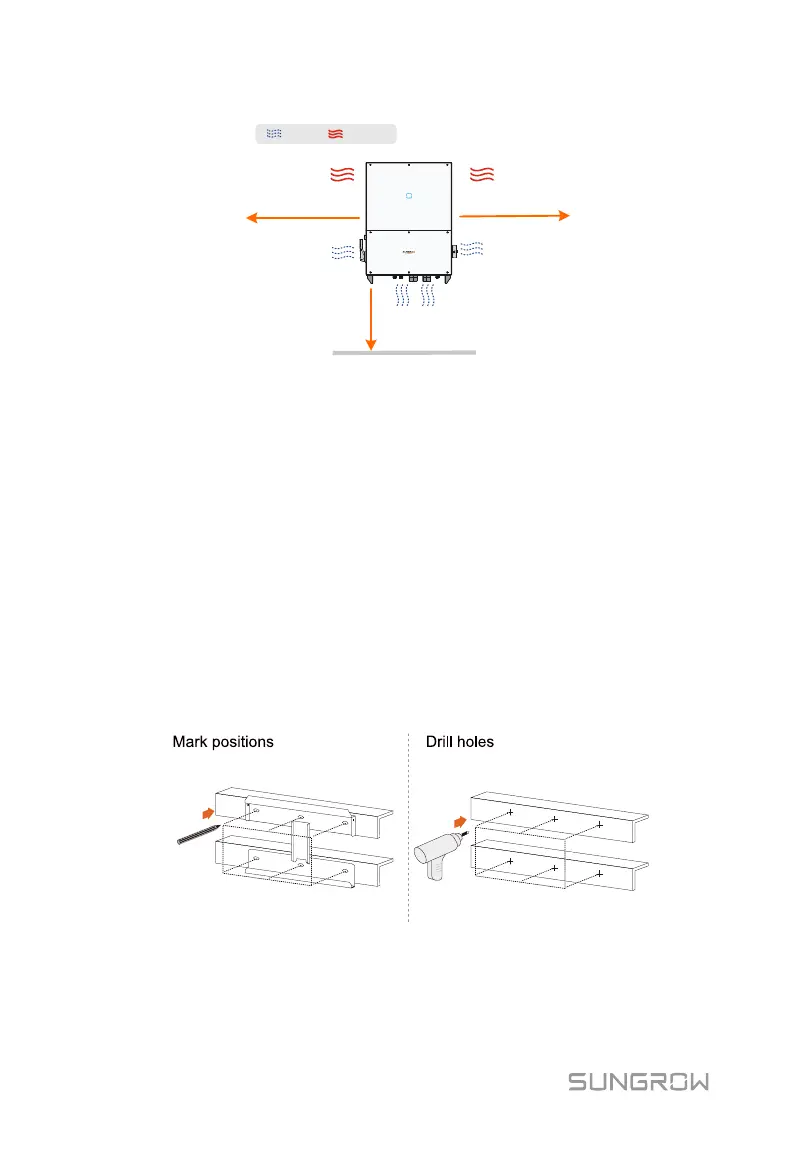

2-2 Install the converter
Select the installation location and regulate the clearances of multiple
converters, referring to the user manual.
Move the converter to the installation site with the help of another person or
the lifting device by means of the handles.
Install the converter onto metal frame as following procedures.
Step 1 Remove the backplate and fasteners from the packaging.
Step 2 Place the backplate to the chosen metal frame and adjust it to proper
position and height.
Step 3 Mark the position for holes drilling according to the holes position of the
backplate.
Step 4 Drill holes according to the marks make before. If the shape of the metal
frame does not match the backplate, re-drill holes on the backplate
according to the metal frame chosen.
Step 5 Secure the backplate to the metal frame firmly by the supplied fastener.
Torque of the fasten nut is 35 Nm.
