Sungrow SC50HV Quick Installation Guide

5
F
D
A
B
C

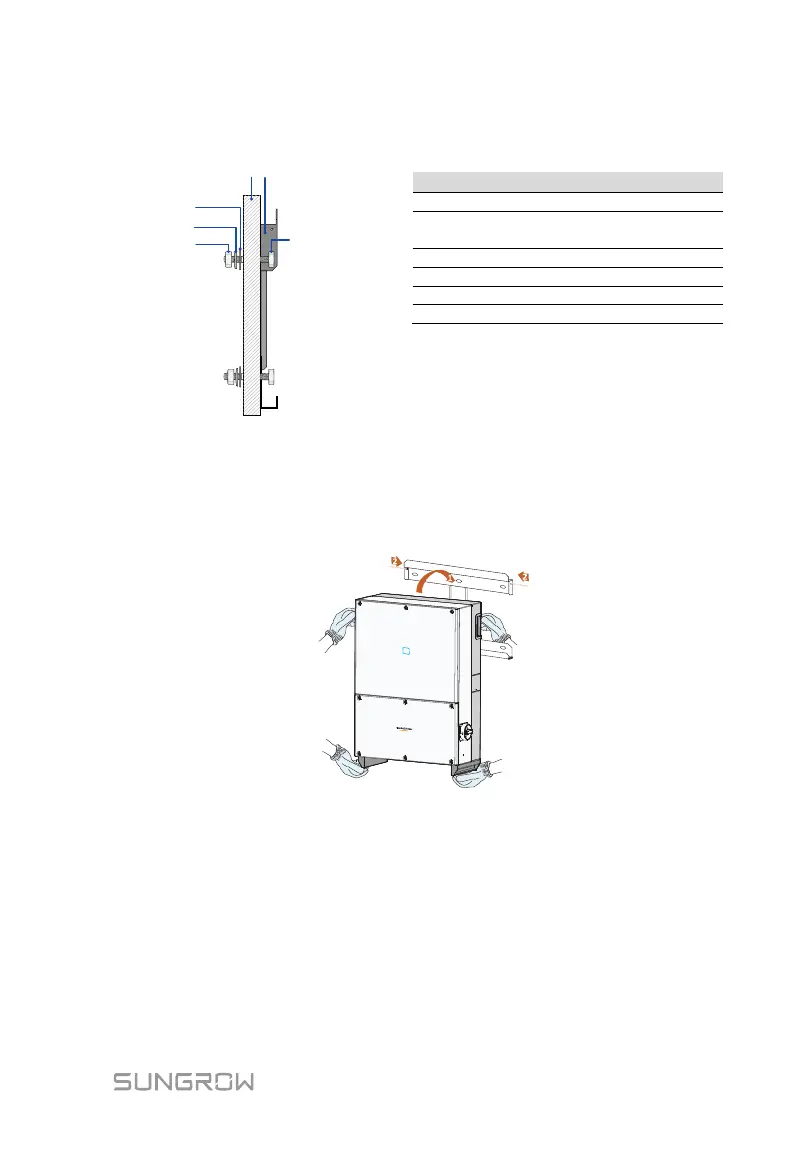

Install backplate
E
Step 1 Lift the converter above the backplate and then slide down to make sure
they match perfectly.
Step 2 After putting the converter on the backplate, secure the converter to the
backplate with two M4×16 screws (fix screw hole has its own nut).
Mount the PCS
No.
Name
Description
A
Hexagon nut
M10
B
Spring
washer
-
C
Flat washer
-
D
Screw bolt
M10*45
E
Metal frame
-
F
Backplate
-
