26

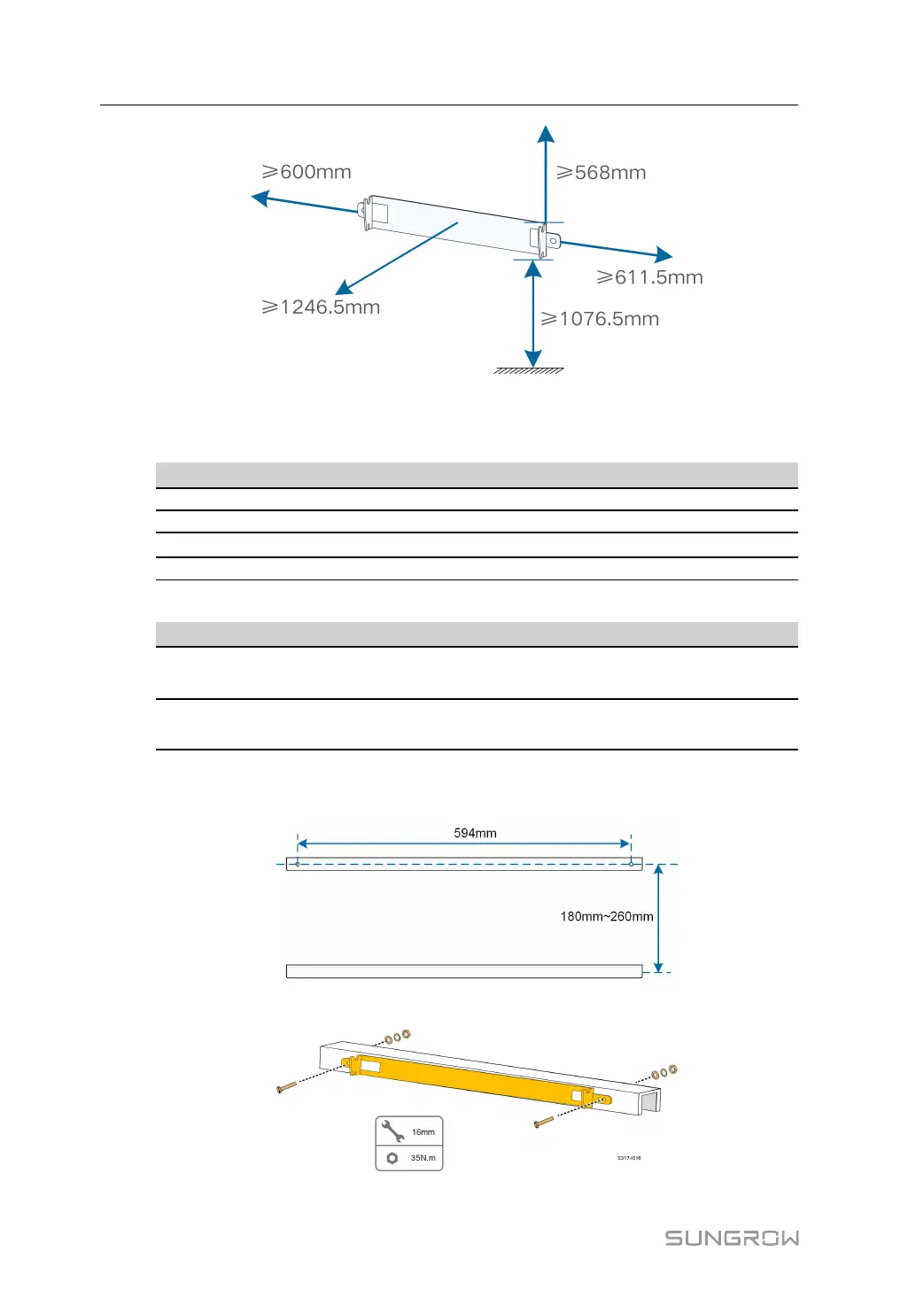

4.5.1 Bracket-Mounted Installation
Tool preparation
Name Specification
Marker
—
Level
-
Hammer drill Bit: φ12
Wrench Inner diameter: 16mm
Material preparation
Name Quantity Specification Source
Bolt
assembly
2 M10 Included in the delivery
scope
Steel u-
channel
2
-
Not included in the delivery
scope
Step 1 Mark and drill holes in one steel u-channel according to the dimensions shown in the figure
below. Two steel u-channels should be spaced 180 mm - 260 mm apart.
Step 2 Secure the mounting-bracket to the steel u-channel with bolts.
4 Mechanical Mounting User Manual
