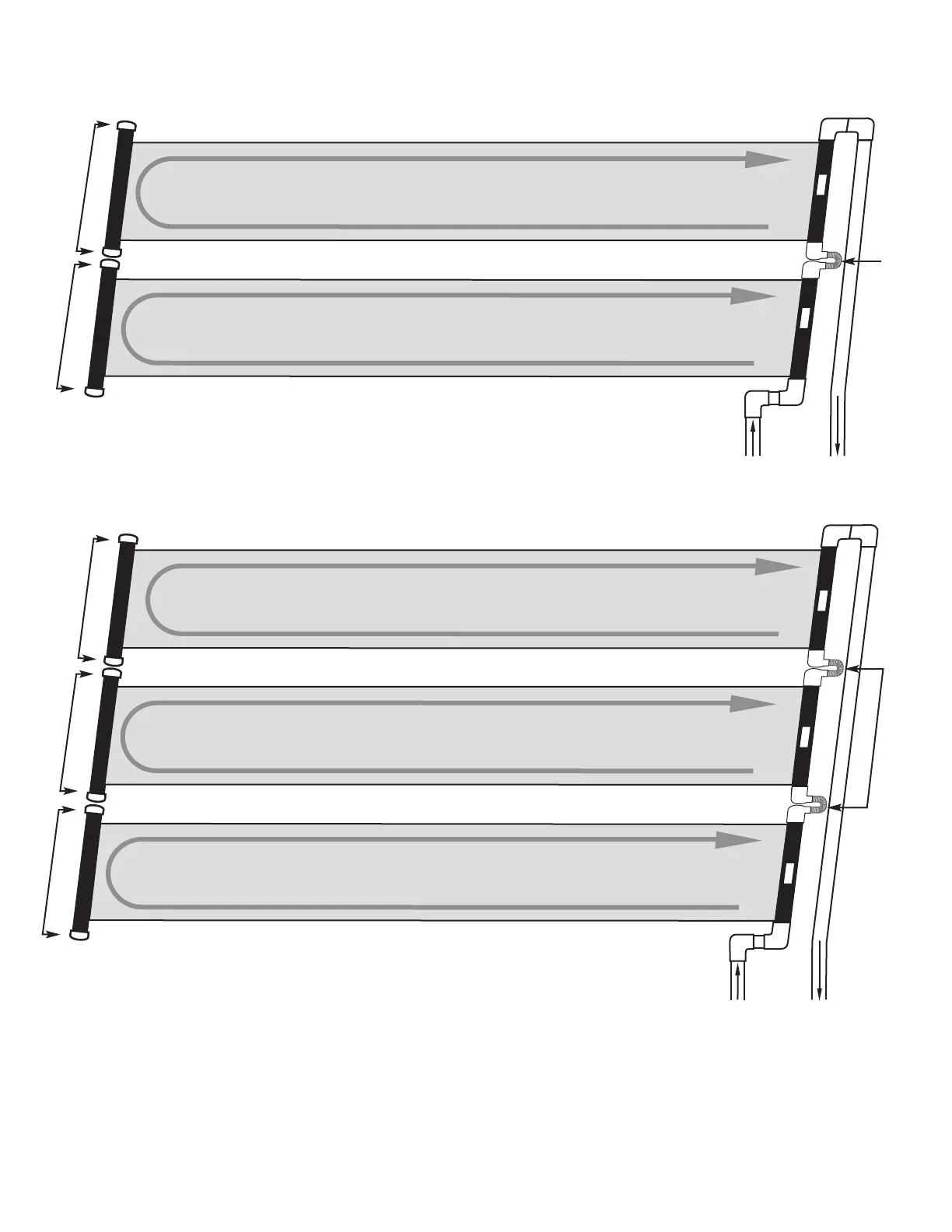

CONNECTIONS FOR TWO COLLECTORS
CONNECTIONS FOR THREE COLLECTORS
•
Use connector hose provided.
• If collectors are to be mounted on a roof, you must purchase kit SK43
for every two collectors. For high wind areas you will also need kit SK34 for each
collector. Call your dealer or SPQ Brandsl at (609) 212-0221.
• Slots are provided in each solar collector for mounting (DO NOT USE SMALL HOLES IN
COLLECTORS FOR MOUNTING - SEE PAGE 3. DOING SO WILL VOID YOUR WARRANTY).
• Maximum of three collectors may be plumbed in series.
• Pitch the collectors slightly toward the end caps for winterizing and draining - 1” (25 mm) -2” (50 mm).
• Do not add additional mounting hardware other than SunHeater factory approved kits.
White End Caps
Flex Hose
Flex Hose
White End Caps
Label
Label
Label
Label
Label
