Commissioning Sunmaster XS6500 English
Mastervolt International B.V, P.O.Box 22947, NL-1100 DK Amsterdam, The Netherlands. Tel.: +31-20-3422100 Email: info@mastervolt.com Web: www.mastervolt.com v1.0
070507EN

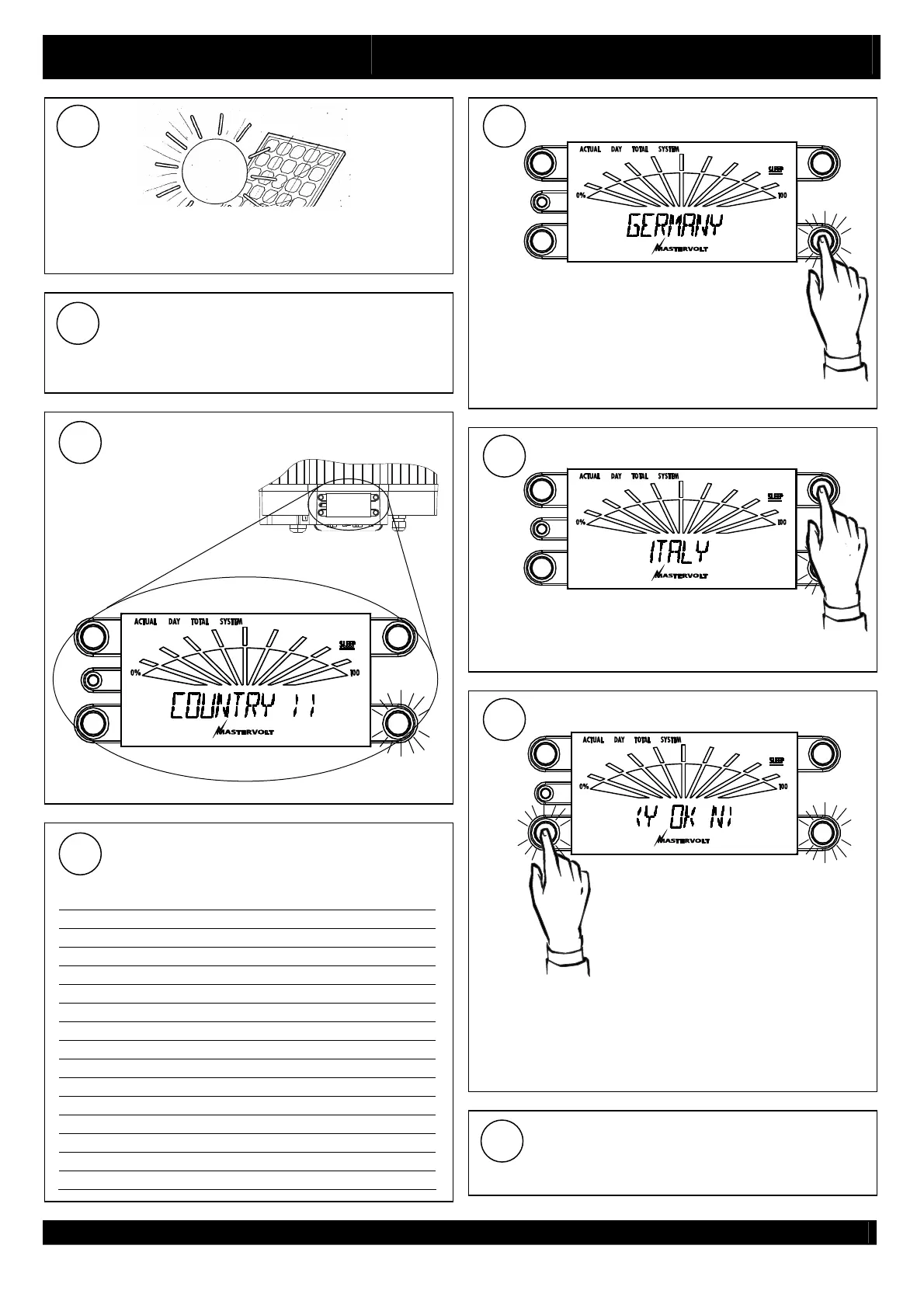

Now the Sunmaster switches on. This may
take up to 5 minutes.
See user’s manual for operation instructions
8
7
Confirm your selection by
pressing S3 (or cancel by
pressing S4)
S4
S3
If a wrong country code was entered, you can start the
procedure over again by pressing S2 and S4
simultaneously for three seconds.
6
If the correct country code is shown
(example: Italy), press S2 to select
S2
5
Press S4 repeatedly to scroll
through the country codes
S4
1
To check the correct operation of the Sunmaster,
commissioning should be carried out during daytime
only
4
Select the applicable country code from the
table below
Country code Allowed to be used in
DEFAULT
GERMANY 1P Germany, Austria
GERMANY 3P Germany
SPAIN Spain
ITALY Italy
KOREA South Korea
NETHERLAND Netherlands
ENGLAND United Kingdom
FRANCE France
BELGIUM Belgium
AUSTRALIA Australia
GREECE Greece
USA 240V USA (Split Phase 240V)
USA 208V USA (Three phase 208V)
TAIWAN Taiwan
Check all wiring. If the wiring is OK:
2
1 Switch on the AC grid
2 Move the DC-switch of the solar array to
the ON position (or “1”-position)
3
S1
S2
S3
S4
After +/- 10 seconds COUNTRY is shown
on the display
