Step 5: Tighten the wooden
poles and fix them on the middle
panel.
Step 8:Tighten the wooden poles
and fix them on the storage panel.
Step 9: Fix the top panel on
the poles firmly with the
screw 1( 4PCS ) via hex
wrench.
Step 16-17: Clip the wire into the wire clamps. Step 18: Tear off the sticky side of the lampshade
and install the bulb. Then install the drawer and drawer stuck.

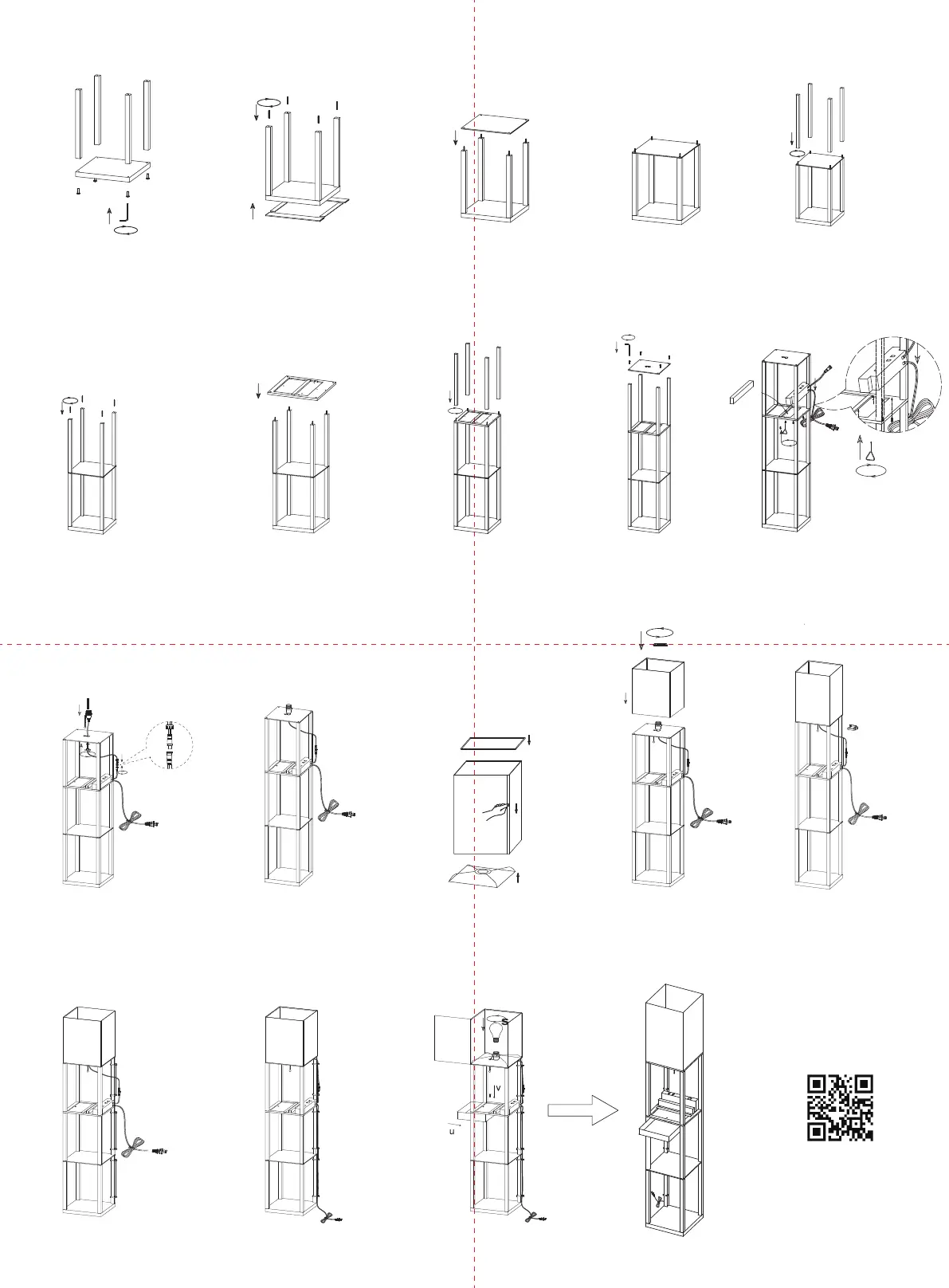

Step 1: Use the hex wrench to fix
the bottom panel and the wooden
poles( 4PCS ) firmly with screw 1(4
PCS ). Note that the concave side
of the bottom panel is facing down.
Step 3-4: Put the middle panel on the
wooden poles through screws 2.
Step 10: Use the screwdriver to fix
USB and outlet box and dam-board to
the drawer panel with screw 3( 7PCS) .
Step 11-12: As shown in the picture, make the end cable
of the lamp holder, washer and wing nut pass through
the top panel. Fix the lamp holder on the top panel with
a wing nut, and then fix the wire with the USB and socket
box with the included nut.
Step 2: Stick the EVA cushion to the bottom of
the bottom panel. Rotate screw 2(4PCS) and
fix them to the top of the wooden poles.
Step 13: Stick the lampshade to
the iron frames. Note that the
concave side of the iron frame
face down.
Step 14: Fix the lampshade on the
lamp holder with the lamp nut.
Step 15: Clamp the wire clamps on
the lamp poles.
Step 7: Pass the drawer panel
through screws 2 and place it on
the wooden poles.
i
d
g
o
g
g
g
01
f
p
f
f
f
02
c
03 04 05
f
f
f
f
06
b
07 08
g
g
g
g
09
m
n
j
10
11
12
h
q
r
13
16 17 18
k
14
e
15
Step 6: Rotate screw
2(4PCS) and fix them to the
top of the wooden poles.
Video Installation tutorial
http://service.sunmory.com
