G. POWER AMP PASS THROUGH - This 1/4 inch,
unbalanced, TS, output jack is designed to send a
preamp line level signal from your “Main” 1200s
amplifier to another amplifier. This jack is used for
chaining multiple 1200s amplifiers together and
increasing your on stage volume. Do so by inserting
a 1/4” cable from this POWER AMP PASS
THROUGH jack into the RETURN jack in the effects
loop section of another 1200s.
H. LINE OUT - These transformer balanced, XLR
male and 1/4 inch, tip-ring-sleeve, line level output
jacks are designed to feed the 1200s’ signal to an
external power amplifier or main house mixer. The
signal from these output jacks include all tone
shaping done by the 1200s.
I. CH SELECT - Allows the remote ON / OFF
switching of the Channel 1 / 2 mix.
J. GRAPHIC - Allows the remote ON / OFF switching
of the Graphic EQ.
K. COMP - Allows the remote ON / OFF switching of
the compression circuitry.
power amp
pass through
line out

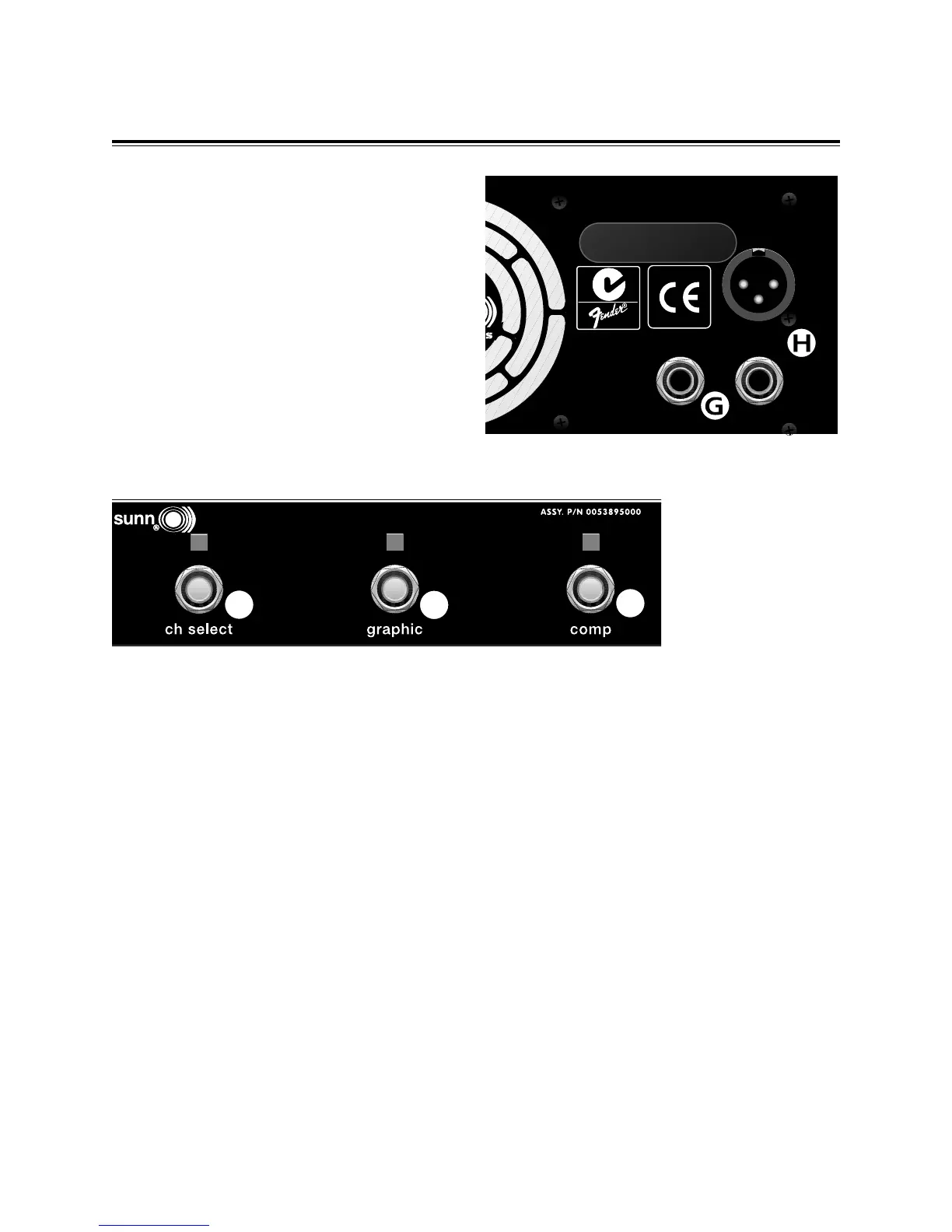

SUNN 1200s REAR PANEL, CONT.
I
J
K
To Next Page
