8

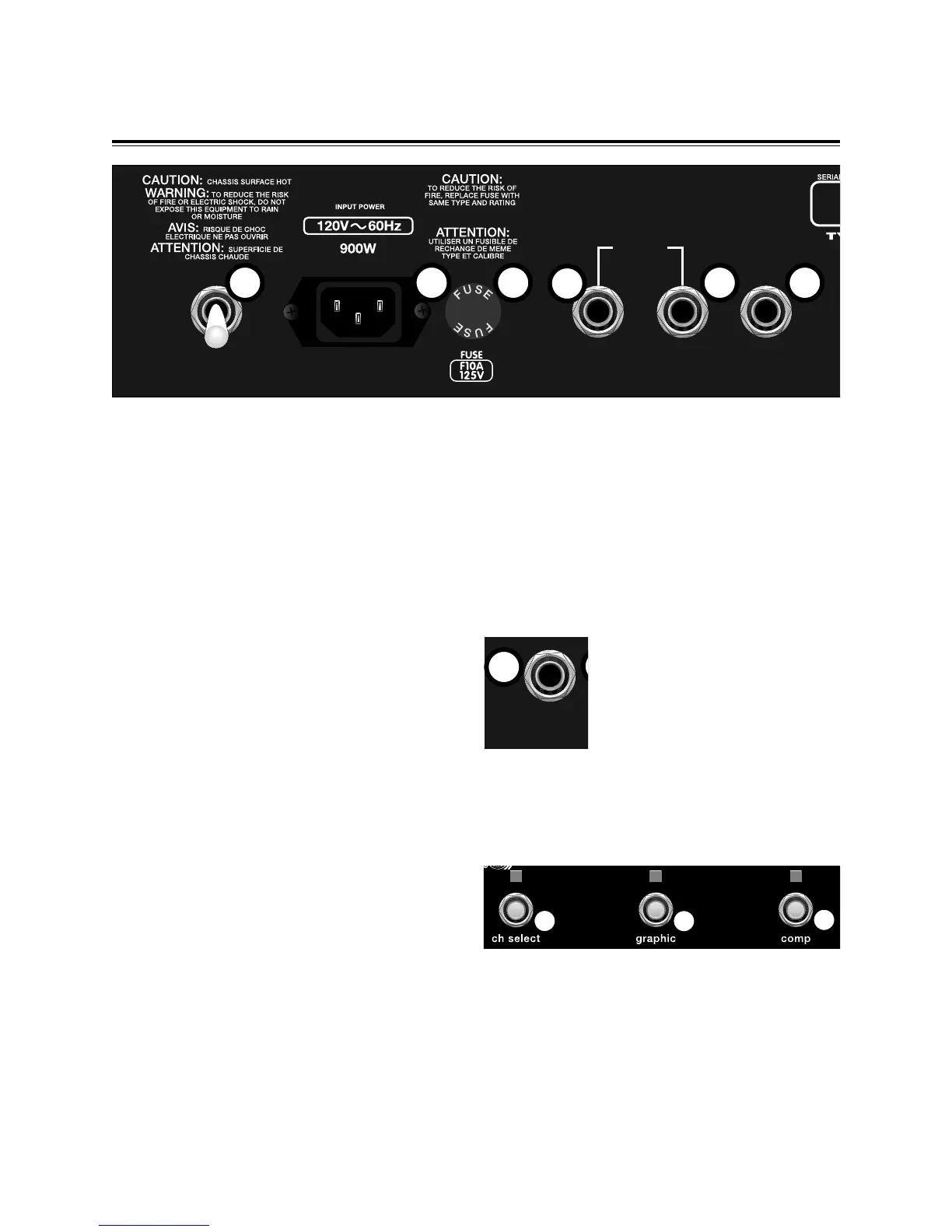

SUNN 300T REAR PANEL
send
effects
loop
return
power amp
pass through
power
on
off
A B
C
D
E
F
A. POWER - Turns the AC power ON and OFF.
When the rocker switch is down, the amplifier is OFF
and completely shut down.
B. LINE CORD - The 300T is equipped with a
grounding type IEC supply cord to reduce the
possibility of shock hazard. Be sure to connect it to
a grounded AC receptacle. The line cord should be
connected to a suitable power source in
accordance with voltage and frequency as shown in
the power rating on the rear panel. DO NOT ALTER
THE AC PLUG.
C. FUSE - The fuse is in the AC supply of the amplifier
and will help to protect the amplifier in the event of an
electrical fault. If a fuse blows, replace it only with one
of the same type and rating. (Refer to the
specification page to determine the correct fuse type
and rating for your amplifier). NEVER use a fuse with
a higher current rating as this could damage the
equipment and present a serious safety hazard. If
the amplifier repeatedly blows fuses, it should be
taken to an authorized Fender service center.
D. SEND - This 1/4 inch, unbalanced, differential, tip-
sleeve (TS) output jack is designed to send a signal
to an external signal processing device, such as a
digital delay or a chorus unit.
E. RETURN - This 1/4 inch, balanced, tip-ring-sleeve
(TRS) input jack is designed to accept signal from an
external processing device, such as a digital delay or
a chorus unit.
F. POWER AMP PASS THROUGH - This 1/4 inch,
unbalanced, differential, tip-sleeve (TS) output jack is
designed to send a preamp line level signal from your
“Main” 300T amplifier to another amplifier. This jack
is used for chaining multiple 300T amplifiers together
and increasing your on stage volume. Do so by
inserting a 1/4” cable from this POWER AMP PASS
THROUGH jack into the RETURN jack in the effects
loop section of another 300T. NOTE: You can use
either a TS or TRS cord in the SEND, RETURN or
POWER AMP PASS THROUGH jacks.
G. FOOTSWITCH - Plug-in
connection for the footswitch (P/N
053895) used to remotely turn on
and off the graphic equalizer,
compressors and change the
channel selection. Using the
footswitch will override the front
panel graphic equalizer, compressor and the channel
selection buttons. NOTE: Any good quality patch
cord will work with the remote footswitch, however
an unshielded speaker type cord is preferable to a
coax guitar cord.
H. CH SELECT - Allows the remote ON / OFF
switching of the Channel 1 / 2 mix.
I. GRAPHIC - Allows the remote ON / OFF switching
of the Graphic EQ.
J. COMP - Allows the remote ON / OFF switching of
the compression circuitry.
footswitch
G
HI
J
